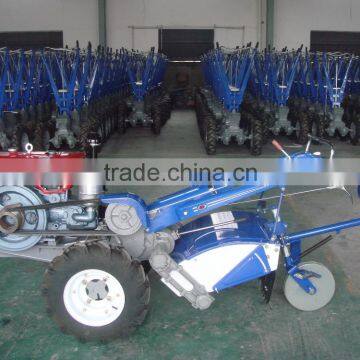

Diesel walking tractor with plough/walking behind tractor/diesel power tiller

FOB Price

USD $800 - $1,000 / Set

5 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Walking Tractor
By wheel	2WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	dongfeng 12
Certificate	Other, iso	Brand Name	JD or OEM
Model Number	DF-18L	Place of Origin	Jiangsu, China
After-sales Service Provided	Engineers available to service machinery overseas

Model of Power Tiller		Unit	FSH-18D	FSH-20D
Structure weight	Without rotavator	kg	520	530
	With rotavator		645	655
Working weight (with rotavator)		kg	680	695
Turning speed of rototilling shaft		rpm	188/300
Overall dimensions (LxWxH)		mm	2680 x 1030 x 1250
Number of blades		PCS	24
Rototilling width		mm	800/900
Type of tractor			Single axle, dual-purpose for both traction & drive
Travelling speed	Forword	Km/h	1.4,2.5,4.1,5.3,9.4,15.3
	Reverse		1.1, 3.8
Type size			6.00-12
Wheel track		mm	800, 740, 640, 580(normally use 800)
Min. ground clearance		mm	185
Min. turning radius		m	0.9(with no rotavator)
Model of engine			ZS1105N	ZS1110N
Type of engine			Horizontal 4-stroke
Bore x stroke		mm	105×115	110×115
Total displacement		L	0.9959	1.0931
Compression ratio			17:01
Turing speed of crankshaft		rpm	2200
1-hour rated output		KW/hphp	13.34/18.15	14.7/20
12-hour rated output		KW/hp	12.13/16.5	13.23/18
Specific fuel consumption		g/kw.h	≤246.2	≤244.8
Specific lube oil consumption		g/kw.h	≤2.00	≤1.47
Cooling mode			Condenser (Radiator)
Main farm implements (optional)			Anti-skid steel wheel Model 100-640
			Double-furrow plough Model 1LS-220
			Disk plough Model 1LS-220Y
			Power driven disk plough Model 1LYQ-320
			Sprinkler Model 8Y-80
			Swather/reaper Model 4GL-130
			Trailer 7C-1.5 (Standard)
			Trailer 7C-1.5BH (Hydraulic dumping)
