DMX512 signal controller ,controll high power led lightings
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | ILLUSION | |
| Model Number | CT1001 | Type | Other, handle controll | |
| Max. Load Power | 2.5W | Voltage | Other, 264V |
Product Description
Specifications
DMX512 Controll box1.input: 90-264v AC
2.Controll high power led wall washers,RGB ceiling lights

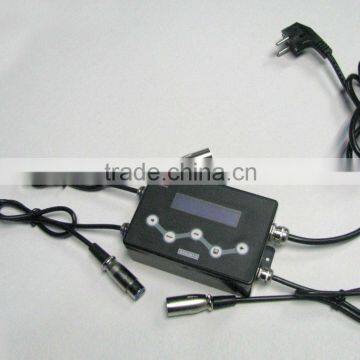

DMX512 control box
Instruction
DMX512 Controller box, whose output signal matchs standard DMX512 accords (RS485), is a controller for our wallwasher series products. It also can be used to control the lighting effects of the same type products. DMX512 Control Box integrates diversified lighting changing modes. With liquid crystal display, it is easy to learn and handle with.
Application
Any LED product which employs DMX512 Accords as communication standard
Electrical Parameters:
Input Voltage | AC100V~AC240V(50/60Hz) |
Working Voltage | DC5V |
Maxinum Power | 2.5Watts |
Signal Format | DMX512(RS485) |
Operating conditions
Working Temperature Range | -20°C ~ +45°C |
IP Rank | IP65 |
Wires and Ports
1 Power input
1 Standard DMX signal output end (3-pin female connector)
1 Standard DMX signal output end (3-pin female connector)
Instrucion of keys
Dimmention
Connection
The max cable between DMX512 controller boxes (or DMX512 controller and DMX amplifier ) is 150 meters, the max cable between DMX512 controller box and the last light which connected with it is 100 meters
Attention
Please notice the working environment while you using the product.
Please install all the lights and adjust the DMX address of each unit before connecting the DMX512 controller.
Please notice the diagram of connecting way when you are operating it.
