Ring Hammer Coal Crushers/hammer Glass Crusher/hammer Mill Coconut Shell Crusher

Specifications

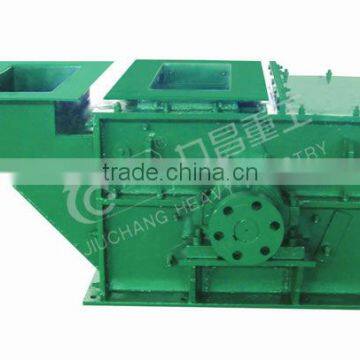

PCH series of Ring hammer crusher

Summarize

Ring hammer crusher is suitable for secondary crushing mid-hard solid materials with compressive strength less than 150Mpa, moisture content less than 12% such as coal, gangue, coke, slag, red sandstone, shale, loose limestone and etc. It features simple structure, high crushing size reduction ratio, high efficiency and low power consumption, low noise, low dust pollution. And it is widely used in kinds of industries like thermal power plant, cement, coal , metallurgy, construction material, road and petrochemical. Industry.

Working principle

Ring hammer crusher’s main component is rotor with hammers, and the rotor is composed of main shaft, rotating plate, pin shaft and hammer. The rotor is driven by electric motor and rotating with high speed. Material goes into the crushing cavity through feeding entrance and is stricken, impacted, sheared and grinded by high speed rotating hammers. There is a sieve plate underneath the rotor. The material smaller than the sieve holes size will be discharged through screen plate. The material which size is bigger than the sieve hole size will be remain on the screen plate and get stricken and grinded by the hammers and finally crushed into the requested size then will be discharged out of machine through sieve plate. The grate of the gap could be made as customer’s requirements to change the size of output material to satisfy different customer’s need.

Structure Schematic

1. curved lining board, 2.curved grate board,3.straight board,4.straight board,5.side road system,6.feed entrance,7.flower hammer,8.main shaft,9.circular hammer,10.side lining board,11.observation window,12.pull rod, 13.bearing seat, 14.whipping arm,15.shaft,16.shaft coupling

Technical parameter
