Introduction

Crushing production line is widely used in mining, building material, highway or rail way construction and other industry applications. It is also important for the production and processing of highway pavement material, high grade pavement macadam, high-speed railway passenger dedicated line aggregate, aggregate of hydropower station, crushed stone of port and airport runway and other special field.

Every crushing plant is an independent working unit, they can respectively assume their different responsibility, and the belt conveyor is responsible for material transmitting and piling up between each crushing plant. It is convenient for road transit and deep into the working place. And it is also easier for installation of the equipment in the working place. It does not need mannual operation.

Costruction waste production line can crush materials with rebar and high moisture content. Its design capacity is 30 - 1000 tons per hour. It is suitable for crushing compression strength less than 300Mpa materials.

Sand production line is equipped with advanced electric control system to make the complete line highly automatization almost without mannual operation except start or turn-off and daily maintence. Its design capacity 30 - 1000 tons per hour. It is suitable for crushing compression strength less than 300Mpa materials. Stone production line has the characteristics of reliable performace, convenient operation, high efficient and low power request which is truly the most reasonable and ecoonomic production line. Its design’s capacity is 30 - 1000 tons per hour. It is suitable for crushing compression strength less than 350Mpa solid material.

Fine crushing line ie used to crush solid materials with compression shrength less than 300Mpa. It has the features of small occupying area, high crushing ratio, unaffected from water content, and convenient operation, which is truly the most realible and economical production line.

It could be classified into four types: construction waste production line, stone production line, sand production line and fine crushing production line.

The production line could be designed according to different requirements.

Working Principle

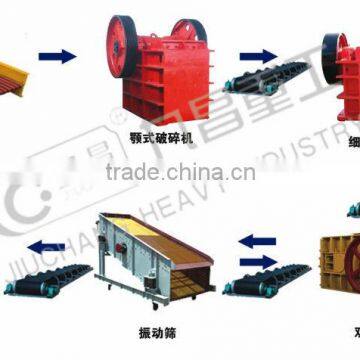

Production Line includes three systems that is feeding system, crushing system and sieving conveyor system. Complete feeding system has vibrating feeder or other types of feeding equipment. In the sand and gravel production line, feeding system are generally used for feeder equipment was responsible for the supply of stone.

The crushing system is the heart of the whole equipment. Its job is to break all kinds of raw materials into the size of the required finished product. Joint sand and gravel production line can have more than one crusher. The production line could be designed according to different requirements.

The sieving conveyor system is used to transport the crushed materials. In the application of compound crushing production line, sand and stone need to be separated, and classification of ballast need to be transported by the conveyor or other transporting system to the respective sites.

Main Components

Crushing production line usually consists of vibrating feeder, jaw crusher or fine jaw crusher, impact crusher, double toothed roll crusher, double roller crusher, quad roller tertiary crusher, hammer crusher, belt conveyor, electric control systems and other equipment.

According to specific requirements, We can combine different equipments together to meet various needs.

Specification

According to your raw materials input size,final product size and capacity requirement to choose the most suitable crushing production line model

In order to choose the suitable model ,please let us know more information in your enquiry:

What is the type and size of raw material?

What is the raw material max size before crushed(mm)?

What is required size of final product(mm)?

What is required capacity of final product(t/h)

Equipment photos

Key equipment
