crusher for coke/hammer crusher design
- 13 Set / Sets per Month
- Qingdao; Shanghai
- T/T
You May Like
-
High Quality PC series ring hammer crusher Shandong Jiuchang manufacturer with ISO
-
gold mining equipment of China supplier/ hammer crusher
-
gold mining equipment of China supplier/ hammer crusher made in China
-
asphalt crushing machine made in China/crusher machinery/ hammer crusher
-
asphalt crusher machinery from China/high efficiency basalt impact crusher
-
aluminum crusher /hammer Crusher, Stone/glasses Crusher Machine
Product Details
| Condition | New | Type | Hammer Crusher | |
| Application | mining;coal;metallurgic;construction | Motor Type | AC Motor | |
| Power(W) | 30kw | Capacity(t/h) | 15-60t/h | |
| Place of Origin | Shandong, China | Brand Name | JIUCHANG crusher for coke | |
| Model Number | PC0606 crusher for coke | Dimension(L*W*H) | 1300mm*1400mm*1400mm | |
| Weight | 2.8t | Certification | ISO9001:2008 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

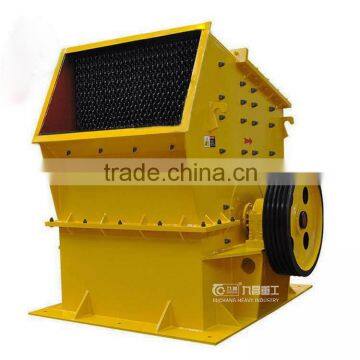

Ring hammer crusher for sale/Crusher for coke
Specifications
Ring hammer crusher/Crusher for coke
1, Factory direct sale with guaranted quality and lower price
2, High manganise steel spare parts
3,One year quality guarantee
4,After-sale serivce and OEM service
5,ISO9001:2008; CE certificates
Introduction of crusher for coke / hammer crusher design
The Ring Hammer Crusher is widely used in the industry of mining, building materials, coke, chemical industry,metallurgies, and fodder. The Hammer Crusher can secondary and fine crush materials in middle or less than middle hardness such as barite, limestone, terrazzo, silica sandstone, coal, coke, gypsum, aluminum sulfate, slag, etc. Hammer Crusher series are regarded as the preferred equipment, because they have the featuers of less investment, high producing capacity, etc.
Main parts of crusher for coke / hammer crusher design
Application of crusher for coke/ hammer crusher design
Ring Hammer crusher could be used to crush limestone, gypsum, coal,marlstone,sandshalewith maximum feed size 600-1500mm,compression, strength less than 250Mpa.
Working Principle of crusher for coke/ hammer crusher design
When hard materials enter the crushing cavity via the vibrating feeder, they'll be struck by the hammers hung the rotor and be thrown onto the impact plate. The materials which spring back from the impact plate will be struck by the hammers again until they reach the desired size, after which the materials will fall through the screening plate under the rotor .The distance between the impact plate and the rotor can be adjusted to meet shape and size requirements.
Parameters of crusher for coke/ hammer crusher design
| Model | Rotor diameter(mm) | Rotor length(mm) | Inlet size(mm) | Discharge size(mm) | Production capacity | Motor power(kw) | weight(t) |
| PC0606 | 600 | 600 | 960 | 10-100 | 15-60 | 30 | 2.8 |
| PC0808 | 800 | 800 | 870 | 10-100 | 25-80 | 45 | 4.2 |
| PC0810 | 800 | 800 | 870 | 10-100 | 40-100 | 75 | 5.6 |
| PC1010 | 1000 | 1000 | 740 | 12-100 | 60-150 | 90 | 6.5 |
| PC1013 | 1000 | 1000 | 740 | 12-100 | 90-200 | 110 | 8.3 |
| PC1213 | 1200 | 1200 | 520 | 12-120 | 120-260 | 160 | 12.3 |
| PC1414 | 1400 | 1400 | 450 | 12-120 | 160-350 | 250 | 16.9 |
| PC1616 | 1600 | 1600 | 390 | 12-150 | 190-460 | 400 | 27 |
Work field of crusher for coke/ hammer crusher design
