7 Inch Monitor with a Split Screen for up to 4 Backup Cameras CS-S751TMQ
USD $45 - $50
/ Piece
10 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- SHENZHEN
- T/T Credit Card
You May Like
-
10.1 Inch Monitor with a Split Screen for up to 4 Backup Cameras CS-S1019TMQ
-
7 Inch Ultimate Fire Truck Backup Camera System CS-S760TMS
-
7-Inch Horse Trailer Rear View System with 2 Cameras (1 for horse trailer and 1 for your truck)CS-S7699TMS
-
Sprinter Van Backup Camera System 7 Inch Monitor and a CCD Mounted RV Backup Camera
-
9" car quad monitor, 9" LCD quad monitor, 9" quad split monitor, car backup monitor, dashboard monitor CS-S960TMQ
-
5" Screen Size CCTV monitor for bus security
Product Details
| Screen Size | Other, 7" | |||
| Placement | Other, Dashboard, Dashboard | Certification | CE.ROHS,FC | |
| Car Make | buses,coach,school buses, farm tractor agriculture equipment, heavy t | Place of Origin | Guangdong, China | |
| Brand Name | Supervideo | Model Number | CS-S751TMQ | |
| Warranty | 13 Months |
Product Description
Product Description
7 Inch Monitor with a Split Screen for up to 4 Backup Cameras CS-S751TMQ
| 7" monitor Built-in quad system |
| * NEW TFT panel , 16 : 9 image |
| * Resolution : 800 x RGB x 480/1024 x RGB x 600 optional |
| * Brightness : 300 cd/m2 |

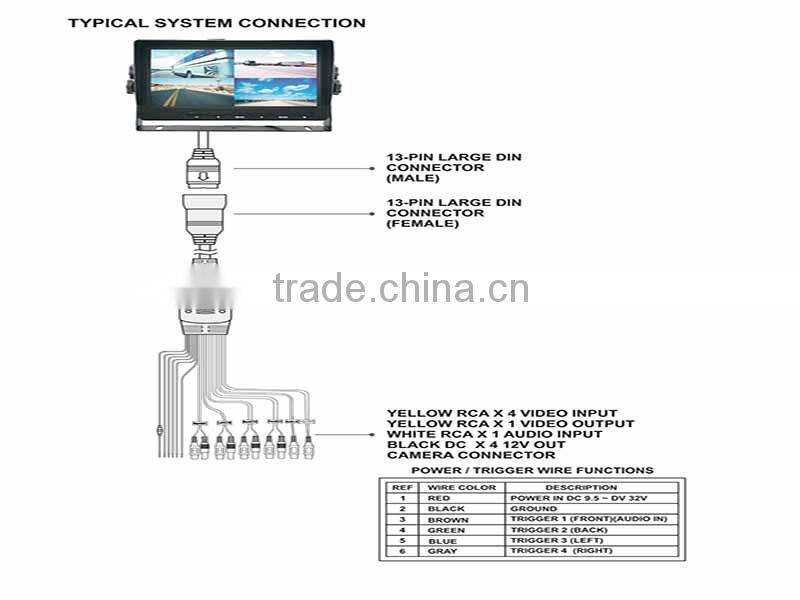

| * 4 video inputs (only 4 PIN connector) |

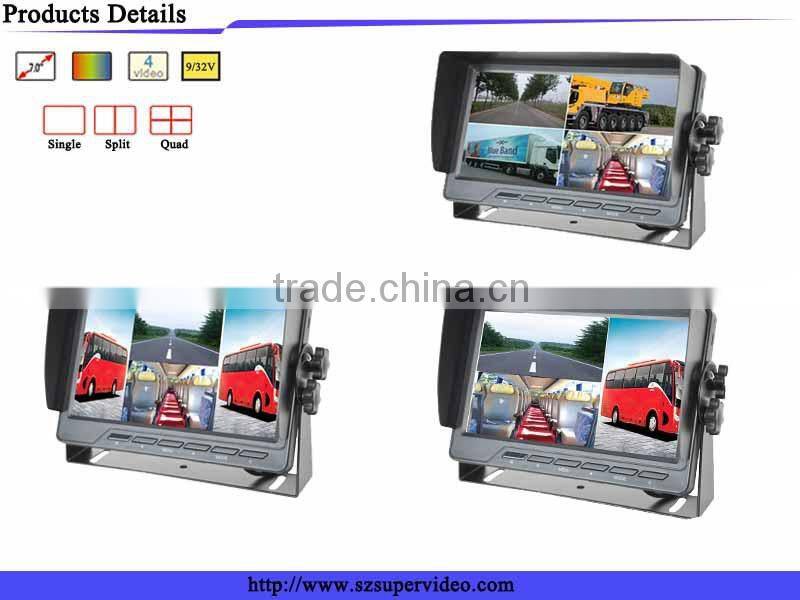

| * Single /Split /Quad view selectable |
| * 8 languages OSD menu, remote control |
| * PAL/NTSC adjustable |
| * 4 ways Trig function |
| * Trigger priority: CAM 2>CAM 1>CAM 3>CAM 4 |
| * High-low voltage protection & short circuit protection |
| * View angle:L/R:70,UP:50,down:70 degree |
| * Built-in speaker (optional) |
| * Power requirement: DC 9~32 V |
| * Detachable sunshade |
| * Metal U type bracket |
| * Dimension:17.8 x 12 x 2.35cm( without shade) |
| 17.8 x 12 x 6.35cm (with shade) |
Mainly products
| |
| |
Packaging & Shipping

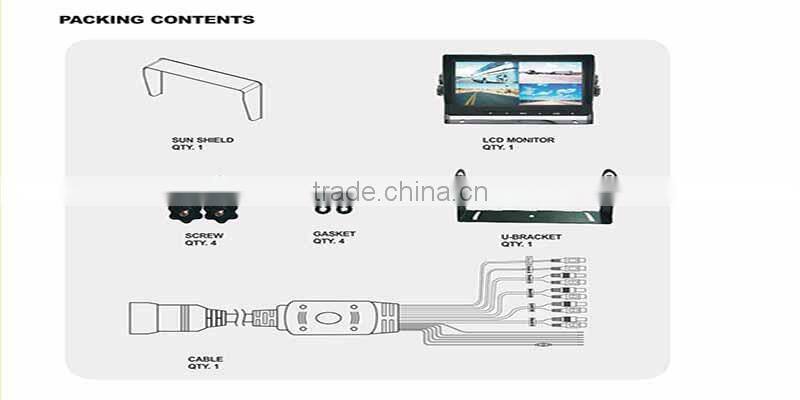

| Standard packing contents |
| Power cable*1PC |
| Remote control*1PC |
| U bracket*1 |
| PVC sun shade*1 |
| bracket screws*4PCS |
| manual*1PC |
| Package |
| Color box or white box |
| 27*20.5*5.5CM |
| Weight:0.9KG |
| 10PCS/1CTN:56*29.5*22.5CM |
| N/W:9KG |
| G/W:9.6KG |
Usually,we ship the Sample orders by DHL,Fedex or UPS.For mas production, Air and sea transportation are for mass production.
Our Services
Lead time:
1.Samples can be sent out within 3 days after the full payments
2.General order can be delivered from our factory in 7 - 15 days.
3.Big order can be delivered from our factory in 20-35 days depends on the function.
OEM / ODM Service:
1.If the total order quantities are above 500pcs, we can print customer’s logo on the products, and do the color box&manual as your requirements.
2.ODM orders are acepted,welcome your enquiries!
After sales service and products warranty:
1.24 hours on line by Trademanager,Skype&Mobilephone.If you meet with the technical problems,the questions will be replied within 24 hours by our technicians.
2.All of our products have 1year warranty and unlimited free technical support.Any product proves defective under normal usage, we will repair or replace it by free of chargeIf our customers could repair the products by themselves locally, we will supply necessary spare parts.If the products need to be sent back to us,we repair and bear 50% freight charge.
Why choose us?
1.Good service for 24 hours and honesty bases;
2.High quality products:All Products have Quality Assurance.All products must pass IQC,QC,QA test strictly,and before dispatch,all products must go through aging test,vibration test,high temperature and low temperature test,drop testand etc.Our production is in accordance with the CE,FCC,and ROHS standards.
3.Experienced R&D Department(with more than 10 years enginering experiences
4.We could supply unique models.
5.High-low voltage protection;Reverse-phase protection;High digital new screen;high definition;Vibration-proof&Easy to install
Company Information
Shenzhen Supervideo Electronic Co. Ltd was founded in 2011 ,located in Shenzhen China. is engaged in researching, developing, manufacturing and marketing of vehicle rearview monitor camera system,mobile DVR quad back up system,car rearview mirror&car accessories. Our products could apply to various kinds of vehicles,such as buses,coach,school buses, farm tractor agriculture equipment, heavy truck, horse trailer, SUV, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle etc
Contact Us
- Shenzhen Supervideo Electronic Co., Ltd.
- Contact nameMelody Zhou Chat Now
- Phone86-755-28231286
- Address3/F,Bldg A5,Tianlong Industrial, Huangmabu, Xixiang, Shenzhen, Guangdong
