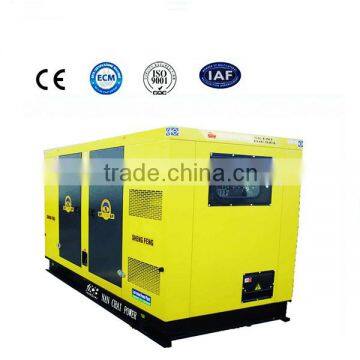

Super Silent Power Generating Set 200KVA

FOB Price

US$ 13,000 - 20,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Super Silent Power Generating Set 200KVA
2. Warranty 1 Year
3. Free Training
4. Test Before leave
5. Price is lower

Super Silent Power Generating Set 200KVA:

Data Sheet:

Generator	Diesel GenSet Model	NCC200
	Power (Kw/Kva)	160/200
	Rated voltage(V)	230/400
	Rated current (A)	288
	Frequency(Hz)	50
	Rated Rotary Speed (Rpm)	1500
	Power factor	0.8(lag)
	Fuel consumption.(g/kw.h)	207
	The regulating rate of steady voltage	≤1%
	The regulating rate of instantaneous voltage	-15%~+20%
	The time of steady voltage	≤3s
	The waving rate of voltage	≤0.5%
	The regulating rate of steady frequency	≤5%
	The regulating rate of instantaneous frequency	-10%~+12%
	Noisy Standard	≤70 dB(A)
	The time of steady frequency	3s
	The waving rate of frequency	≤1.5%
	Dimension(mm)	310011601860(mm)
Engine	Diesel Engine Model	Cummins
	Producer Place	Xiangfan
	Power(kw/kva)	163/204
	Type	Four strokes, direct injection, In-line
	Intake way	Turbo-charged
	Displacement of piston(L)	8.3
	Bore *Stroke (mm)	114*135
	Compression rate	17.5:1
	Governor	Mechnical/Electric
	Cooling method	Water cooled
	Cylinder	6
	Starting way	Electric
Alternator	Alternator Model	KaiJieLi
	Power (Kw/Kva)	160/200
	Type	Brushless ,100% copper, 3-Phase, 4-Wires
	Insulation grade	H
	Protection grade	IP22
	Type of construction	Single / Double bearing
	Winding pitch	2/3
	Voltage regulation	+/- 1%
	Recovery time	1S
	Maximum overspeed	2200 Rpm
	Short circuit current capacity	>300

Option: Alternator also can be ENGGA, STAMFORD, LEROY SOMER, etc.

CE/ISO Certificate:
