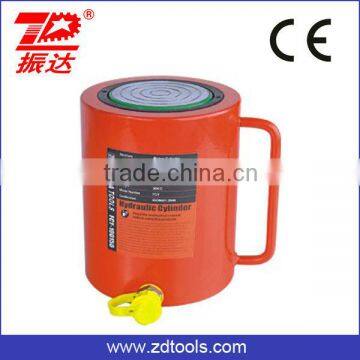

FCY single acting hydraulic cylinder
- ningbo or shanghai
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
| Power | Hydraulic | Body Material | Stainless Steel | |
| Maximum Stroke | 150mm | Shaft Diameter | 110mm | |
| Place of Origin | Zhejiang, China | Model Number | FCY-100150 | |
| Brand Name | Zhenda |
Product Description
Specifications
FCY single acting hydraulic cylinder1 Tonnage:100ton
2 Work travel:150mm
3 Effective area:103.8cm2
4 Good quality
FCY single acting hydraulic cylinder
Features:
1. The surface of main is processed with chromium hardening treatment, so that the service life is increased.
2. The main shaft has the automatic shorting function.
3. The enamel paint surface is anti-corrosive and aesthetic.
4. The head part of main shaft is mounted with solid block to prevent the rupyure when it is on load.
| Modle | FCY-10100 | FCY-10150 | FCY-20100 | FCY-20150 | FCY-30100 | FCY-30150 | FCY-50100 | FCY-50150 | FCY-100100 | FCY-100150 | FCY-150100 |
| Tonnage(T) | 10 | 10 | 20 | 20 | 30 | 30 | 50 | 50 | 100 | 100 | 150 |
| Stroke (mm) | 100 | 150 | 100 | 150 | 100 | 150 | 100 | 150 | 100 | 150 | 100 |
| Effective area(cm2) | 13.8 | 13.8 | 26.4 | 26.4 | 41.8 | 41.8 | 78.5 | 78.5 | 103.8 | 103.8 | 143.1 |
| Oil capacity(L) | 0.145 | 0.22 | 0.28 | 0.42 | 0.416 | 0.624 | 0.7 | 1.06 | 1.32 | 1.72 | 2.01 |
| Closed height(mm) | 155 | 205 | 155 | 205 | 162 | 212 | 162 | 212 | 172 | 222 | 178 |
| Extended Height(mm) | 255 | 355 | 255 | 355 | 262 | 362 | 262 | 362 | 272 | 372 | 278 |
| Outside(Φmm) | 58 | 58 | 88 | 88 | 107 | 107 | 127 | 127 | 177 | 177 | 205 |
| Bore die (Φmm) | 43 | 43 | 65 | 65 | 75 | 75 | 95 | 95 | 130 | 130 | 160 |
| Principal dia (Φmm) | 38 | 38 | 58 | 58 | 68 | 68 | 85 | 85 | 110 | 110 | 135 |
| Thread for input oil-port(ZG) | 3/8''-19 | 3/8''-19 | 3/8''-19 | 3/8''-19 | 3/8''-19 | 3/8''-19 | 3/8''-19 | 3/8''-19 | 3/8''-19 | 3/8''-19 | 3/8''-19 |
| Protrusion height(mm) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Weight(kg) | 3.5 | 4.3 | 9 | 10 | 12.5 | 14.5 | 18 | 22 | 30 | 37.5 | 37.5 |
Primary Competitive Advantages:
1), Our company has several years’s experience in producing kinds of hydraulic cylinder, we have the self-operated importing and exporting rights
2), All products are approved by ISO9001 and CE approved .
3),We can produce the hydraulic tools according to our customer’s requirement.
4), We insist to popularize our brand “Zhenda” to our customers , and welcome to become our sales agency ,
We’ll give our customer the special prices once the customer become our approved agency
