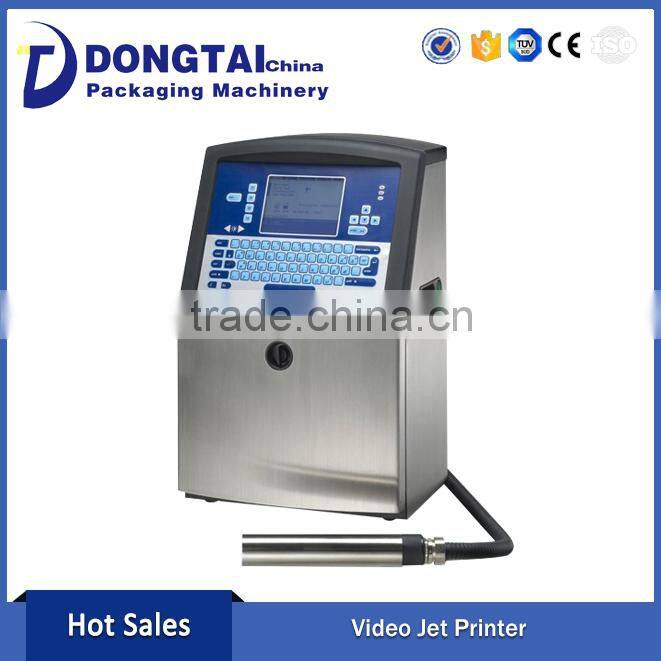

Videojet Inkjet Printer Coding Machine

Product Name: Coding Machine

Brief Introduction

Simpler operation. Less maintenance. Superior print quality. The all-new Videojet 1210 continuous ink jet

printer is engineered to keep your line up and running longer. It’s designed for customers who print six hours

to eight hours per day, five days per week — providing up to 18 months of production before required

preventive maintenance.

Advanced Capabilities

• Up to 3 lines of code with speeds up to 533 ft./min.(162 m/min.)
• Standard USB with logo and memory back up features

Simple to Maintain

• 6,000-hour core life
• No mess, no waste, no mistake fluid cartridge delivery system

Superior Environmental Protection

• IP55 washdown protection standard

Line Speed Capability

• Can print 1 to 3 lines of print at speeds of up to 533 ft./min.(162.5 m/min.) (10 characters per inch, single line of print)

Font Matrix Configuration

• Single-line: 5x5, 5x7, 7x9, 11x16, 17x24
• Twin-line: 5x5, 5x7, 7x9
• Tri-line: 5x5, 5x7

Nominal Character Height

• Selectable from 0.079” (2 mm) to 0.279” (8.5 mm), depending on font

Throw Distance

• Optimal: 0.472” (12 mm)
• Range: 0.197” (5 mm) to 0.591” (15 mm)

Keyboard

• Membrane style with tactile feedback, including 72 numeric, alphabetic, and special function keys. PC-style layout to approximate international PC convention.

Display

320x240 Bright blue backlit 5.7” LCD display. WYSIWYG onscreen message editing

Custom Logo/Graphics

Can be created by individual user on printer or PC with optional Videojet Logo Creator software

Character Sets

American, Arabic, Bulgarian, Chinese, East European, European, Greek, Hebrew, Hungarian, Italian, Japanese, Japanese/Kanji, Japanese/Katakana, Korean, Russian, Simplified Chinese, Scandinavian, Thai, Traditional Chinese, Turkish, Vietnamese

Languages and Interface Options

English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

Data Interface

Standard USB with logo and memory backup features

Message Storage

100 complex messages. Unlimited storage using USB.

Console Dimensions

Stainless steel

21.3” (541 mm) high

13.6” (345 mm) wide

11.2” (285 mm) deep

Printhead

Heated printhead

Diameter: 1.63” (41.3 mm)

Length: 9.47” (240.5 mm)

Printhead Umbilical

Ultra flexible

Length: 6.56’ (2 m)

Diameter: 0.91” (23 mm)

Bend radius: 3.00” (76.2 mm)

Fluids Containers

Ink Smart Cartridge™ 0.793 qt. (750 ml)

Make-up Smart Cartridge 0.793 qt. (750 ml)

Temperature/Humidity Range

41°F to 113°F (5°C to 45°C)

0% to 90% RH non-condensing

Electrical Requirements

Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 120 W

Approximate Weight

Unpacked and dry: 39.68 lbs. (18 kg)

Standard Export Packing for Coding Machine

1.Cover by PVC film + fumigated wooden case;

2.Wooden case suitable for long distance ocean shipping.

Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.

No damage to human factors, all products one year warranty, life-long maintenance.

Jinan Dongtai Workshop and Main Team

JINAN DONGTAI MACHINERY MANUFACTURING CO. ,LTD. is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.

Our business involves various markets all over the world, in many fields with our excellent product performance.

Now we have been one of the biggest manufacturers of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holland, AE, Canada, Brazil, Russia, Australia, and India and so on. On the basis of excellent quality and competitive price, you will be surely to get a big success in your industry.

Jinan Dongtai Factory and Show Room

Other Products

Various packaging machine, packaging related machinery, bag packing machine, semi-auto filling machine, automatic liquid filling machine, antifreeze filler, paste lotion filler, magnetic pump manual liquid filling machine, coding machine, sealing machine, electromagnetic induction sealing machine, labeling machine, shrinking machine, granule packing machine, vertical type powder packing and filling machine,  vacuum packaging machine, etc.

Manufacturing Process

Technology Certification

CE Certification and ISO9001 Certification

A. Is there other sealing capacity can be choosen?
Yes, certainly. We can customize it for you according to your  sealing materials and packaging effect and so on.

B. Product Production, Sourcing and Price

Professional production, quality assurance and affordable welcome to inquire. All products are factory direct sales, looking forward to building cooperate with you wholeheartedly!

C.  Related Paramenters Products

The above parameters are for reference.  Because the type and styles is so many, so we can only provide for one model for your reference, if the part of our parameters can not meet your needs, please contact me directly, we would be quickly to answer your question.

D. Transaction Process

Both sides reached cooperation intention - Signed the contract -to pay down payment through customer service - factory arranged production before testing - detection Before shipment - delivery - the client received and pay final payment

E. Warm Reminder

When inquiry, please provide detail sealing and packaging product name, packaging range & sealing speed requirement. It will be convenient for us to recommend the most suitable machine to you. Any special, our company can be professional design to meet your requirements.

Your satisfaction is our greatest Pursuit. Believe Your Choice- Jinan Dongtai. So What are you waiting for? Contact us, dear customers !
