Home > Products > Hydraulic hose > Rubber hose R1/R2/R3/R5/R15 Steel Wire Braided hydraulic hose pipe price list
Rubber hose R1/R2/R3/R5/R15 Steel Wire Braided hydraulic hose pipe price list
- 500000 Meter / Meters per Month
- tianjin/ningbo/shanghai/qingdao
- T/T Credit Card
You May Like
-
Hot sale high quality SAE 100 Fabric Braided parker hydraulic hoses
-
Hot sale high quality SAE Braided hydraulic tube
-
Hot sale high quality SAE press hydraulic hose
-
China products Heavy duty rubber hose SAE 100 R2AT with DIN EN 853 2SN standard exported to italy hydraulic hose
-
China products SAE standard hydraulic rubber hose prices
-
China products SAE standard jcb hydraulic hoses
Product Details
Place of Origin | Hebei, China | Brand Name | hydraulic hose pipe price list | |
Model Number | hydraulic hose pipe price list |
Product Description

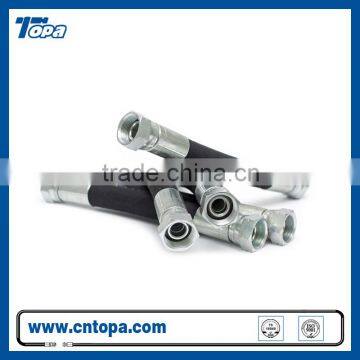

Rubber hose R1/R2/R3/R5/R15 Steel Wire Braided hydraulic hose pipe price list
Tube : Oil resistant synthetic rubber
Reinforcement: high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40°C to +100°C
Impulse cycles: 150,000
DN | dash | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Test pressure | Minimum Bend Radius | ||
inch | mm | mm | mm | Bar | psi | bar | bar | mm | ||
6 | -4 | 1/4 | 6.4 | 11.1 | 13.4 | 225 | 3265 | 900 | 450 | 90 |
8 | -5 | 5/16 | 7.9 | 12.7 | 15 | 215 | 3120 | 850 | 430 | 115 |
10 | -6 | 3/8 | 9.5 | 15.1 | 17.4 | 180 | 2610 | 720 | 360 | 130 |
12 | -8 | 1/2 | 12.7 | 18.3 | 20.6 | 160 | 2320 | 640 | 320 | 180 |
16 | -10 | 5/8 | 15.9 | 21.4 | 23.7 | 130 | 1885 | 520 | 260 | 200 |
19 | -12 | 3/4 | 19.0 | 25.4 | 27.7 | 105 | 1525 | 420 | 210 | 240 |
25 | -16 | 1 | 25.4 | 33.3 | 35.6 | 88 | 1275 | 350 | 175 | 300 |
32 | -20 | 1 1/4 | 31.8 | 40.5 | 43.5 | 63 | 915 | 250 | 125 | 420 |
38 | -24 | 1 1/2 | 38.1 | 46.8 | 50.6 | 50 | 725 | 200 | 100 | 500 |
51 | -32 | 2 | 50.8 | 60.2 | 64.0 | 40 | 580 | 160 | 80 | 630 |
Applications:
Rubber hose R1/R2/R3/R5/R15 Steel Wire Braided hydraulic hose pipe price list is pressure hose that can be used in mobile, machine tool, agricultural application and other hydraulic systems.
It can also be used in conveying petroleum or water based hydraulic fluids which under specific pressure and temperature.
SAE 100R1AT EN853 1SN SAE 100R2AT EN853 2SN SAE R16/R17
SAE 100R7/EN855 R7 SAE 100R8/EN855 R8 SAE 100 R3
Q1. Do you produce smooth or cloth wrapped cover with Rubber hose R1/R2/R3/R5/R15 Steel Wire Braided hydraulic hose pipe price list ?
A. Both, we can produce rubber hose r1at with both cover, which depends on customer’s request.
Q2. Do you produce embossed marking with Rubber hose R1/R2/R3/R5/R15 Steel Wire Braided hydraulic hose pipe price list ?
A. Yes, we do provide embossed and printing markings with different color for Rubber hose R1/R2/R3/R5/R15 Steel Wire Braided hydraulic hose pipe price list .
Q3. Can you produce Rubber hose R1/R2/R3/R5/R15 Steel Wire Braided hydraulic hose pipe price list with my own brand?
A. Yes, we are offering Rubber hose R1/R2/R3/R5/R15 Steel Wire Braided hydraulic hose pipe price list OEM service.
Q4. Does your hydraulic hose pipe price list have different color hose?
A. Yes, we currently provide black, grey, red, blue and yellow with the rubber hose r1at
Q5. How long does my hydraulic hose pipe price list take to be delivered?
A. It usually takes 5 to 30 days, which generally depends on the quantity of your hydraulic hose pipe price list and our hydraulic hose pipe price list storage.
