Home > Products > Tungsten product > High Quality Pure Wolfram Wire

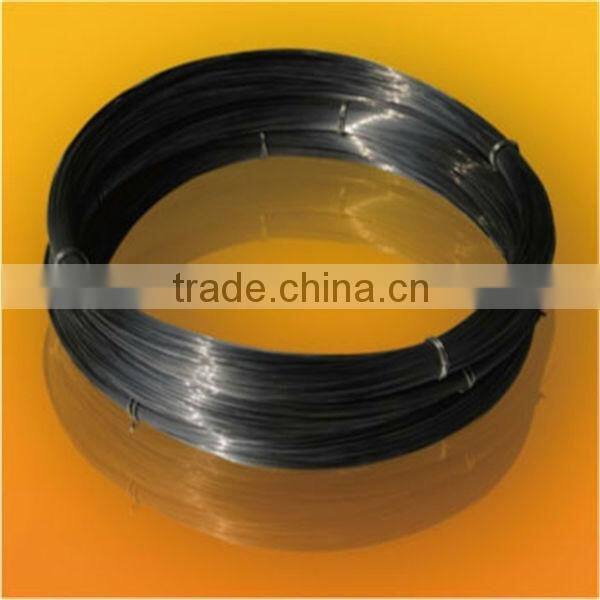

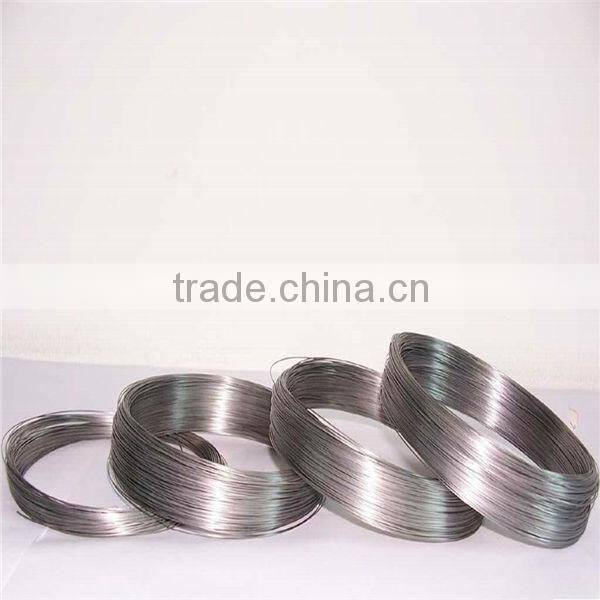

High Quality Pure Wolfram Wire

FOB Price

Negotiable / Roll

1 Roll(Min. Order)

Port tianjin/shanghai/others
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China	Brand Name	XH
Model Number	W1,W2,WAL,WLa, WNiFe	Application	heater elements,lamp components,temperature furnace
Shape	wire/rope	Material	tungsten/wolfram
Dimensions	various	Chemical Composition	tungsten/wolfram

Product Description

Specifications

wolfram wire
1.Over 10 years experience in the industry.
2.High purity: purity>99.95%
3.Quality certification: ISO9002

wolfram wire

1. Grade: W1,W2,WAL,WLa, WNiFe

2. Purity :> =99.95%

3. Characteristic:

Melting Point: 3410 Degrees Celsius

Boiling Point:5927 Degrees Celsius

Density: 19.3g/cm3

High quality, workability

4. Certificate: ISO9002

5. Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion..

Tungsten wire is produced by stretching the Tungsten rod to the required diameter under swaging process. With the properties of hardness, low mechanical abrasion and melting resistance, Tungsten rod/bar is widely applied to electrical contacts which can be used for electrical appliances of vehicles equipped, voltage regulator in automobile engine and other electrical systems. In addition, Tungsten rod/bar can be widely used in electrode, the gate pole in electronic tube, side rod, lead-lines, frame, gas lamp electrodes, high-power incandescent filament, the filament in electronic tube and cathode in launch tube, cylinder barrel of advanced automobile etc.

6. Dimensions and tolerance(According to clients’ requirements):

Finished form	Specified diameter	Minimum length, mm	Diameter tolerance
Wrought	2.8≤d<5.0	600	± 2%
	5.0≤d<6.5	300
	6.5≤d<11.0	200
Straightened	0.8≤d<1.0	1000	± 2%
Straightened	1.0≤d<3.0	800	± 2%
Ground	0.8≤d<3.0	800 – 1000	±0.03mm
	3.0≤d<6.5	300 – 600	±0.05mm
	6.5≤d<10.0	200	±0.08mm

7. Application:

Grade	tungsten content(%)	usage
WALI	>=99.92	Manufacturing wire of high color lamp, wire of shockproof lamp and double-spiral wire Manufacturing wire of incandescent lamp, cathode of transmitting tube, hyperthermia electrode and reaming tungsten wire Manufacturing folding heating cord of electron tube
WAL2	>=99.92	Manufacturing wire of fluorescent lamp Manufacturing heating cord of electron tube, wire of incandescent lamp, and reaming tungsten wire Manufacturing folding heating cord of electron tube, grid wire and cathode
W1	>=99.95	Manufacturing reaming tungsten wire and heating components
W2	>=99.92	Manufacturing grid side rod of electron tube and reaming tungsten wire
