Home > Products > 12v dc motor > Cost Price Hot Sale Promotion 12v Series dc Motor
Cost Price Hot Sale Promotion 12v Series dc Motor
- Shenzhen HK
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Connmotor | |
| Model Number | FF030B | Usage | Home Appliance, Other, Home Appliance, Toys, Models, Massagers | |
| Certification | ROHS, Other, ROHS, Reach | Type | Micro Motor | |
| Torque | stall torque 9g.m | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Totally Enclosed | |
| Speed(RPM) | 17830 | Continuous Current(A) | 55mA | |
| Output Power | 0.28W | Voltage(V) | 3V | |
| Efficiency | Other |
Product Description
3, Torque and speed can be customized up to you.
We can send samples first, then you can check our quality.
| Model | Voltage | No Load | At Maximun Efficiency | Stall | |||||||||
| Using Range | The rated | ||||||||||||
| Speed | Current | Speed | Current | Torque | Power | Torque | Current | ||||||
| r/min | mA | r/min | mA | g.cm | w | g.cm | A | ||||||
| FE030B-08170-27.6 | 1.5~4.5V | 3.0V | 7350 | 70 | 4956 | 145 | 3.91 | 0.20 | 12.0 | 0.30 | |||
| FE030B-07190-27.6 | 3.0~6.0V | 4.5V | 10020 | 70 | 6792 | 147 | 4.51 | 0.31 | 14.0 | 0.31 | |||
- Case: Metal with copper eccentric wheel
- Operating temp :0°~50°
- Rotation:CW,CCW
- Voltage range: 1.2V-24V
- Speed range: 12000-18000RPM
- Our engineering department can provide special designs for different shaft length .
- Available with rear shaft.
Pictures of 12v series dc motor:

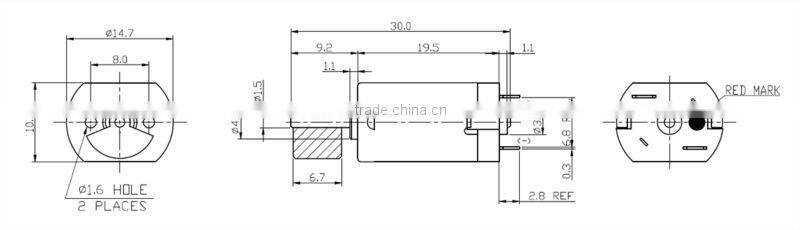

Outline Drawing

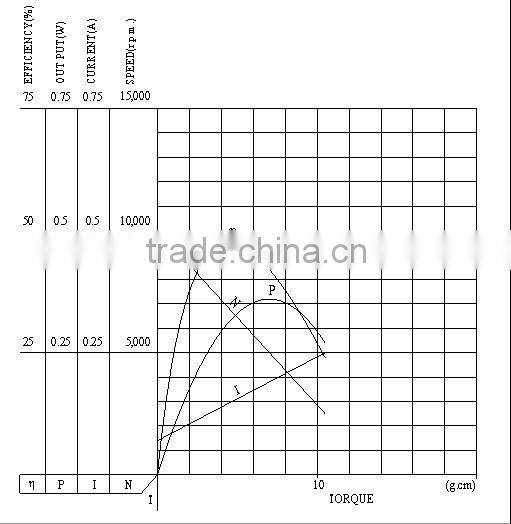

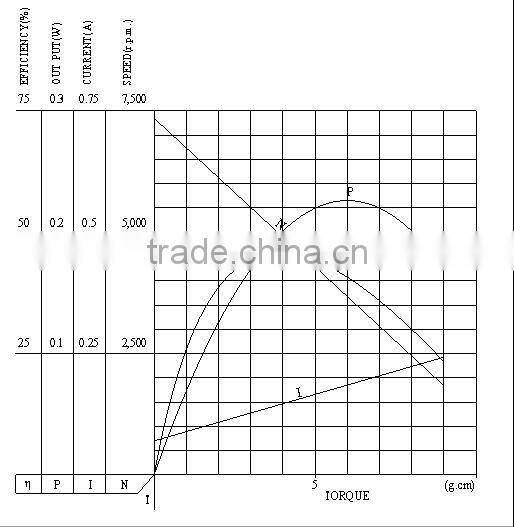

Performance Curve
FE030B-08170-27.6 3.0V
FE030B-07190-27.6 4.5V
Typical Application
Our range of products are usually utilized by the purposes below:
Sports/Fitness equipment, Health care equipment, Home Appliance, Various machines, Furniture, Arcade machines, Vehicle, Constructions, Robots, Power tools, Factory use:
About us
Connaught Motor Co has passed International Quality Management ISO9001 to ensure quality ofproductprovided to our customer. In terms of our products, UL, CCC, CE, and RoHS certificates
are granted to our products (depending on each product). We also have many intellectual copyrights.
We seek for value co-creation with our customers.
Welcome to have a cooperation with us.
Work flow
Customized Capability
If your requirements are not on our lists provided below, we are able to design, adjust,
and manufacture the motors according to your requirements.
Motor Voltage Range : 1 to 220V DC as needed
Motor Speed Range: as customer's needed
Motor shaft can be changed, such as length, rear shaft, knurling, matched gear,matched vibrator.
Motor rotation can be CW or CCW
Any question, pls contact us freely!
12v series dc motor
