Water Level Switch
- Shenzhen HK
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ERLANG | |
| Model Number | SFS-1A-90 | Usage | Other, Level switch | |
| Theory | Other, Current Switch | Output | Switching Transducer |
Product Description

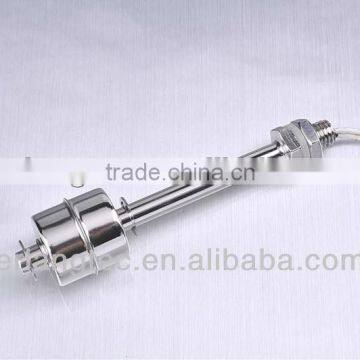

Level Switch, Magnet Float Switch, Water Level Measurement
Movement Explanation:
A float switch is a device used to sense the level of the liquid in a tank. The float ball of the float switch will rise or fall with the liquid and when it moves to a certain area, the magnetic force of the magnet placed inside the float ball will cause the reed switch to turn on, and when it moves away from this certain area, the reed switch will turn off.
If there is no product that fit your desire, you may tell us the detailed information or your demand of the product, we will design and manufacture the products for you particularly!
Application:
water heater, water dispenser, air-condition, BSD-P, humidifier, dehumidifier, fluid control, pump, indicator, alarm and other devices.
Our products has gained the ISO9001 Certification.
| Data Scan | SFS |
| Max Contact Rating | 10W |
| Max Switching Voltage | 100VDC |
| Max Switching Current | 0.5A |
Min Breakdown Voltage | 250VDC |
| Max Carry Current | 1.0A |
| Max Contact Risistance | 0.4Ω |
| Temperature Rating | -30~+125°c |
| Float Ball Material | SUS316l |
| Float Body Material | SUS316l |
| Hexagon Nut Material | SUS304 |
