High Speed CNC Car Brush Drilling and Filling Machine

Specifications

High Speed CNC Car Brush Drilling and Filling  Machine

Technical characteristics:

 1.Bored with two drilling head and one tufting head, high-speed processing, high-volume, cost-effective

 2.This machine can produce many different kinds of brushes or brooms which have different filling angles, by changing specific platform

 3. Bored with three high speed drilling head: hole diameter from 3.0mm up to 6.0mm,and tufting tools from min. 3.0mm up to 6.0mm

 4.Hair by: round nails or flat nails.

Three kinds of the optional platform type:

  1), platform for radial, parallel and radial/parallel tufted brushes.

  2), platform for bowl brushes and semi-spherical brushes (such as toilet brushes and “Swedish style” dish-washing brushes)

  3), platform or rollers and hair brushes

4.PLC and touch panel control system of man-machine, Chinese and English display, simple to understand.

5.Allow to save as 1000 procedure and easy for the creation of new models

6.Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence.

7.Ore machine can produce either one color or two color brush, and also drill or tuft separately.

Technical parameters

Maximum production speed: up to 450 holes/minute

The maximum filament length: 240mm

Dia. Of tufting holes: 3.0mm-6.0mm

Machine size: 2.5m*1.4m*1.98m (length * width * height)

Power consumption: 3KW

Driving motor: AC Servo motor

Power Supply: three-phase 380V

Weight (KG): 2800KGS

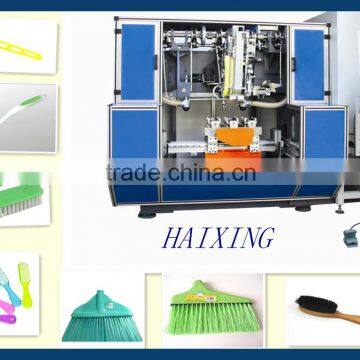

This machine can make many kinds of brushes and brooms, like below:

We have professional engineers and equipments.

Q: Whats the difference from other companies?

  A: First,our machine are bored with the high speed processing,low noise ,cost effective.

       second, our machine is suitable for different shape and style of brush and broom handles usage.

       Third, we have been in this line for about 10 years and have a professional and experienced

            technical development group.They are willing to design and manufacture products with

            both standard and customized specifications .
