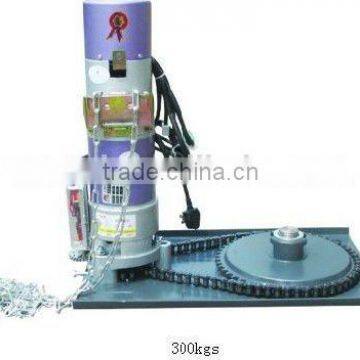

AC 300kgs roller shutter door and windows motor
- Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | wangwei | |
| Model Number | JDD-JD |
Product Description
Description:
This kind of roller shutter door and windows motor can be used as a driving motor by various kinds of normal shutter doors and luxurious security shutter doors .It can automatically open or close the doors by pressing relevent buttons and the doors are also workable under the operation of manual control equipment when there is no power supply .It which can also be remote controlled has been equipped with an overheate prevention device and electronic anti-theft apparatus.
Main Feature
1.automatically open or close the doors by pressing relevant buttons
2. can be operated by electricity and manual.
3.can be remote controlled
4.with an overheat prevention device
5.with electronic anti-theft apparatus
6. Easy to install and operate
Technical Parameters
| MODEL | Motor Power | RATED VOLTAGE | Rated Current | Output Torque | Barrel / Tube DIA | Output Speed | Max Lifting | Max Lifting | Drive Chain |
| (W) | (V) | (A) | (N.M) | (mm) | rpm | Weight (Kgs) | Hight (m) | Pitch | |
| JDD-150-1P | 170 | 220V50Hz | 3 | 85 | 114 | 8.3 | 150 | 6.5 | 1/2" |
| JDD-300-1P | 250 | 220V | 2.5 | 210 | 140 | 5 | 300 | 6.5 | 5/8" |
| JD-300-3P | 200 | 380V | 1.2 | 210 | 140 | 5 | 300 | 6.5 | 5/8" |
| JDD-600-1P | 370 | 220V | 3.2 | 420 | 140 | 5 | 600 | 6.5 | 5/8" |
| JD-600-3P | 400 | 380V | 1.4 | 420 | 140 | 5 | 600 | 6.5 | 5/8" |
| JDD-750-1P | 370 | 220V | 3.6 | 650 | 165 | 3.98 | 750 | 6.5 | 5/8" |
| JDD-800-1P | 400 | 220V | 3.5 | 650 | 165 | 3.9 | 800 | 6.5 | 5/8" |
| JD-800-3P | 450 | 380V | 2 | 650 | 165 | 3.9 | 800 | 6.5 | 5/8" |
| JDD-1000-1P | 450 | 220V | 4 | 820 | 165 | 3.9 | 1000 | 6.5 | 3/4" |
| JD-1000-3P | 470 | 380V | 2.2 | 820 | 165 | 3.9 | 1000 | 6.5 | 3/4" |
| JD-1500-3P | 500 | 380V | 2 | 1650 | 219 | 3 | 1500 | 6.5 | 1" |
| JD-2000-3P | 670 | 380v | 2.5 | 3890 | 219 | 3 | 2000 | 6.5 | 1" |
| JD-2500-3P | 730 | 380V | 3.7 | 4370 | 273 | 3.3 | 2500 | 8 | 1" |
| JDD-4000-3P | 3000 | 380V | 6.7 | 8950 | 325 | 3.2 | 4000 | 8 | 1" |
Remarks:1.Disadvantage: Price is not lowest.
Advantage: We are famous for rolling door motor in China. We ensure the quality(100%testing).Welcome your visiting, which is only 1.5hours driving to Shanghai.
2.Pls don't hesitate to contact us if you have any questions.
3.We can improve it as your designs without a large difference.
Model | Rolling Shutter Motor |
MOQ | 1sets |
Usage | Supermarket, warehouse, garage, factory ,hotels and so on. |
Packing | 1. Carton packed fill with foam 2. One set in two cartons. 1 ctn for main motor+1ctn for accessories 3. 450-500 sets for 20GP container |
Certificate | ISO9001 ; CCC |
Delivery | Delivery time is determined by the amount of your order. |
Price | FOB price, very competitive prices the more you order, the lower price will be. |
Payment | (1) Goods amount above 10,000 30% payment down by T/T before production arranged, the balance 70% before shipment. (2) L/C or wester union |
Mainly used in
FOB/CIF price or EXWORKS price
Whether to provide samples:not free,but revert after bulk order
Which port:Shanghai,Wuxi
Support what payment methods: before production after payment 50%,the other payment 50% before shipment
24 months after sale
