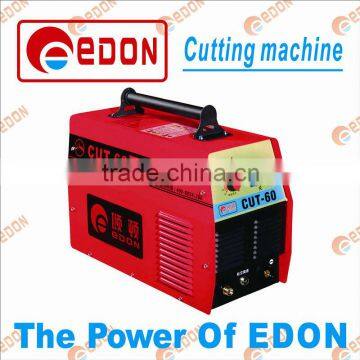

Inverter Plasma Arc Cutting Machine
- Ningbo
- T/T
You May Like
Product Details
Condition | New | Place of Origin | Zhejiang, China | |
Brand Name | EDON | Model Number | CUT-30/40/60/100 | |
Input Voltage | 220v |
Product Description
ITEM | CUT-30 | CUT-40 | CUT-60 | CUT-100 | CUT-120 |
Voltage/frequency | AC220V±10%50Hz/60Hz | AC220V± 10%50Hz/60Hz | AC380V± 10%50Hz/60Hz | AC380V± 10%50Hz/60Hz | AC380V± 10%50Hz/60Hz |
Input power capacity(KVA) | 4 | 6 | 9 | 17 | 20 |
Current range(A) | 10-30 | 10-40 | 20-60 | 20-100 | 20-120 |
Duty cycle(%) | 60 | 60 | 60 | 60 | 60 |
Rated output voltage(V) | 92 | 92 | 104 | 120 | 128 |
No-load voltage(V) | 230 | 230 | 236 | 270 | 270 |
Efficiency(%) | 85 | 85 | 85 | 85 | 85 |
Power factor(COS) | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
Suggested air pressure(kg) | 4 | 4 | 4.5 | 5 | 5.5 |
Arc starting | Torch | torch | torch | HF | HF |
Gross weight(kg) | 12 | 12 | 23 | 40 | 40 |
Protection class | IP21 | IP21 | IP21 | IP21 | IP21 |
Net weight(kg) | 8 | 8 | 19 | 35 | 35 |
Insulation class | B | B | B | B | B |
Suggested exhaust volume of air compressor(m3/min) | 0.17 | 0.17 | 0.25 | 0.36 | 0.48 |
Dimension(mm) | 371*155*295 | 371*155*295 | 480*205*355 | 580*334*480 | 580*334*480 |
