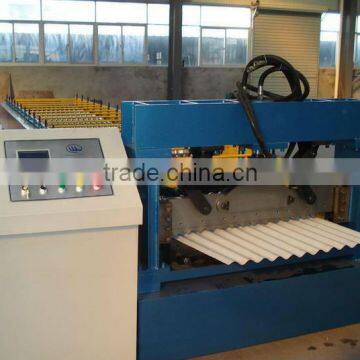

corrugated aluminum roof sheeting roll forming machine

FOB Price

US$ 22,000 - 22,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Other, aluminum/ steel	Use	Roof
Production Capacity	12m per minute	Place of Origin	Zhejiang, China
Brand Name	Willing	Model Number	WLFM18-63.5-825
Power(W)	4	Voltage	as per customer's request
Dimension(LWH)	8m1.5m1.5m	Weight	6tons or so
Certification	CE, ISO9001:2008	Warranty	1 year

Product Description

Specifications

To design your specifications, corrugated roof sheeting roll forming machine, aluminum roof sheeting roll forming machine.

Corrugated aluminum roof sheeting roll forming machine /

Corrugated sheet roll forming machine /

High quality roof sheeting roll forming machine

1. Components of Machine

The roll forming machine consists of manual uncoiler, infeed guide, fixed position driven forming stations, cutting equipment, hydraulic station, control console, and manual unload product run out table.

2. Technical Parameters

Material specification	Aluminum, galvalume, galvanized and pre-painted galvanized steel.
Thickness	0.3 mm to 0.7mm.
Main motor power	5.5 kw.
Hydraulic station power	3 kw.
Feeding width	914/1000/1200mm.
Cover width	WLFM 18-76-760/836/988 is 760/836/988mm respectively.
Yield stress	235Mpa(33KSI) ~ 345Mpa (50KSI).
Roll forming Speed	12 m/minute.
Cutting Tolerance	+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).
Manual Uncoiler	Max. Capacity: 5000kgs.
Coil inner diameter	508mm.
Voltage	As per customer’s request.
Numbers of stands	13 stands/stations/pairs.
Type of cutting	Roll-formed and length-set profile cutting.

3. Material of Main Equipment

Roller Material	High grade No.45 forged steel, coated with hard chrome.
Active Shaft Material	High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft.
Electric Elements	PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China.
Cutter blades	Cr12 mould steel with quenched treatment.

4. Process sketch

Uncoiling the sheet --- Infeed guiding --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).
