EPS and Mineral Wool Sandwich Panel Making Machine

Specifications

EPS foam brick sandwich panel machine production line

1. Brief Introduction

The Laminator for corrugated sandwich panel is an integrated production line consisting of a roll forming machine and a sandwich panel laminating system. The roll forming machine and the laminating system can be operated separately. The roll forming machine is consists of uncoiler, main body and post-cut equipment. The laminating system is consists of feeding, glue, heating, laminating and post-cutting. The whole machine is under control of PLC.

The line can produce single corrugated sheet, and can also produce the sandwich panel with rabbet joint and corrugated sandwich panel. The suitable material is colored galvanized steel sheet with height 0.4-0.6mm, the inserted material is EPS.

2. Components

Standard Decoiler---- Roll Forming System ---- Post-cutting Equipment (for cutting corrugated sheet) ---- Consecutive Laminating Body (one for upper coil, other for lower coil)---- Coil Guiding Equipment ---- Pre-heating System---- Guiding Roller Core---- Glue Providing---- Glue Filling Pad---- Heater---- Dust-absorbing System---- Cutting System (for laminating use)---- PLC Control System ---- Supporting Table---- Safety Guard

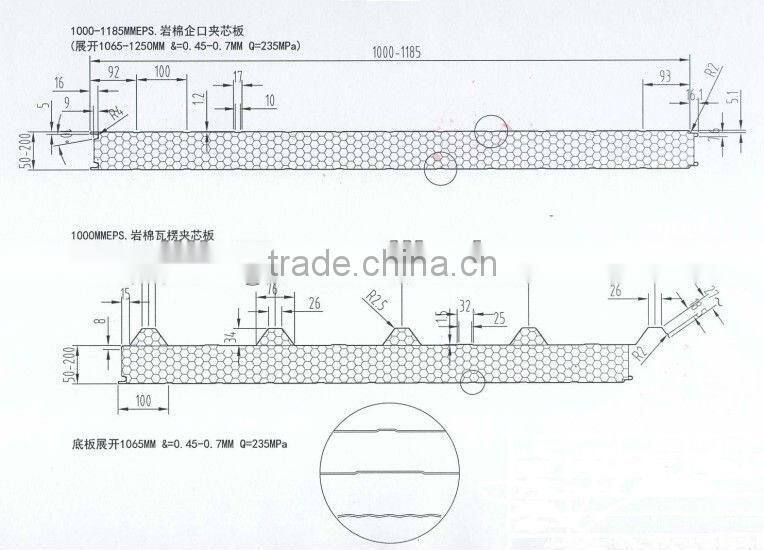

3. Machine profile

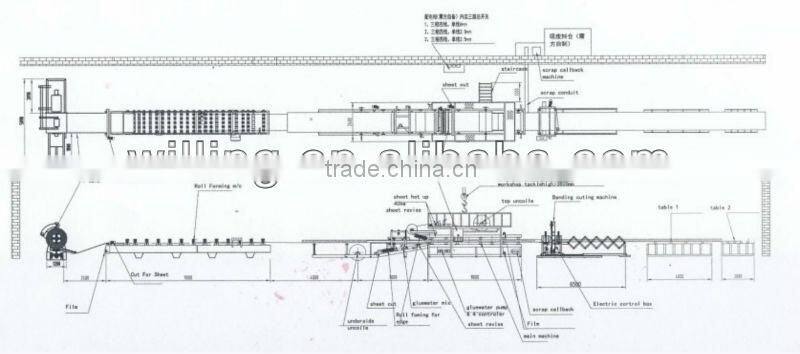

4. Machine layout

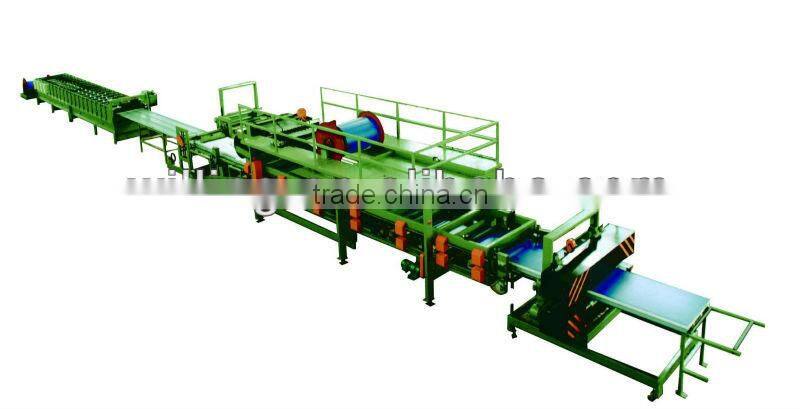

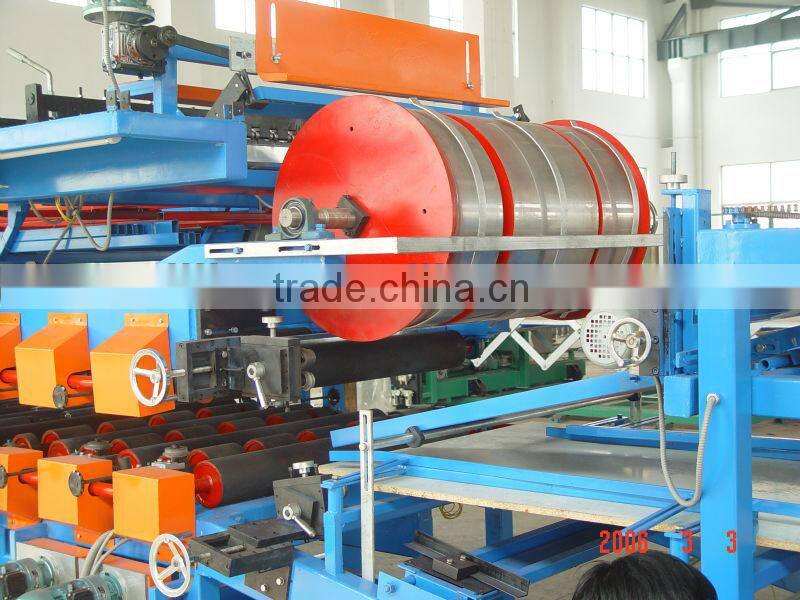

5. Machine picture
