3000L water tank plastic extruction production blow moulding machine best price

FOB Price

USD $240,000 - $280,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Bottle
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Shandong, China
Brand Name	sehenda	Model Number	SKJ
Certification	CE, ISO 9001: 2008. GB/T9001-2008	Warranty	1YEAR
After-sales Service Provided	Engineers available to service machinery overseas

1)Application: 200 to 1000L, 1-3 layer.
2) 1 year guarantee.
3) CE, ISO 9001: 2008. GB/T9001-2008
4)Fully automatic

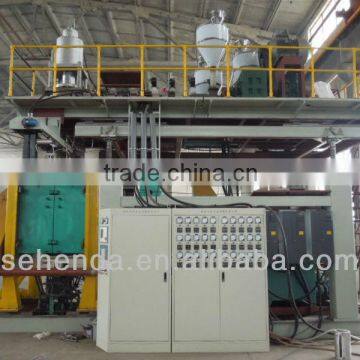

3000L 1-3 layer blow moulding machine

Technical specification
		SKJ3000L
Max. product volume	L	3000
Screw diameter	MM	150
Screw L/D ratio	L/D	30:1
Screw drive power	KW	160
Screw heating capacity	KW	35
Screw heating zone	ZONE	10
Output	KG/H	460
Oil pump drive power	KW	55
Clamping force	KN	1700
Mould open space	MM	3400
Mould thickness	MM	1500
capacity	L	95
Die head capacity	KW	45
No. of heating zone	ZONE	5
Die head material	38 CRMOALA(accumulator,lining,piston,die)
Control action	MITSUBISHI PLC
Blowing pressure	MPA	0.4-0.6
Cooling water pressure	MPA	0.2
size of machine	MM	To be confirmed
Weight of machine	MT	32

1. Appliction: For container and tank from 500 to 3000 liter, 1-3 layer

, also can be used to produce pallet, waste bin, road barrier, septictank,and so on.

2. Manpower: 2 new workers are enough for the whole production line, even both are female, and two weeks training are free of charge.

3. Output: 5-6pcs for 3000L 3 layer tank per hour, with weight 45-50kg, also the weight and thickness can be adjusted by you from 1mm to 10 mm.

4. Material: HDPE, HMWHDPE.

5. Certificate: CE, ISO9001:2008.

6. Main Markets: Asia, South Amereica, European.

30 years specializing in manufacturing huge blow moulding machine worth your trust .
