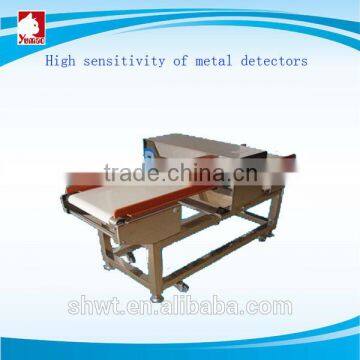

304 stainless steel metal detector for food industry

Metal detector WT-7000 series

1.  Based on High speed 32bit CPU control circuit.

2.  LCD with Touch Screen, Easy to operation.

3  Multi-Functional OS and dual-language.

4.  Theory: Balanced Coil

5.  Adjustment: Auto and Manual

6.  Alarm: Buzzer & Lamp

7.  Conveyor Speed:15-35m/min

8.  Based on DSP Technology.

9.  Selt Sensitive Study.

10.  Height Adjustable Frame

11.  Power: AC110V/220V 50-60HZ

12.  Rated Output: Appr.200W

13.Once metal has been detected,alarm with light and sound,belt stopped

     Can choose to install automatic eliminate metal device

14.  Procurement with waterproof, moisture, moisture-proof design

15.  Material: 304 stainless steel bracket, 3.0MM steel support plate: food plastic woodpole transmission belt: PVC food pole

Standard test card, the test results  (Empty Detection )

Width

Height

   Fe

Sus304

Nofe

700mm

50mm

Fe≥φ0.6mm

Sus304≥φ1.0 mm

Nofe≥φ1.0 mm

700mm

80mm

Fe≥φ0.7mm

Sus304≥φ1.0 mm

Nofe≥φ1.0 mm

700mm

100mm

Fe≥φ0.8mm

Sus304≥φ1.2 mm

Nofe≥φ1.2 mm

700mm

120mm

Fe≥φ0.8mm

Sus304≥φ1.5 mm

Nofe≥φ1.5 mm

700mm

150mm

Fe≥φ1.0mm

Sus304≥φ1.5mm

Nofe≥φ1.5 mm

700mm

200mm

Fe≥φ1.2mm

Sus304≥φ2.0 mm

Nofe≥φ2.0 mm

700mm

250mm

Fe≥φ1.2mm

Sus304≥φ2.5 mm

Nofe≥φ2.5 mm

700mm

300mm

Fe≥φ1.5mm

Sus304≥φ3.0 mm

Nofe≥φ3.0 mm

700mm

350mm

Fe≥φ2.0mm

Sus304≥φ3.5 mm

Nofe≥φ3.5 mm

700mm

400mm

Fe≥φ5.5mm

Sus304≥φ4.0 mm

Nofe≥φ4.0 mm
