Home > Products > large-scale Plastic blow molding machine > Full Automatic1000L 1 Layer Blow Molding Machine

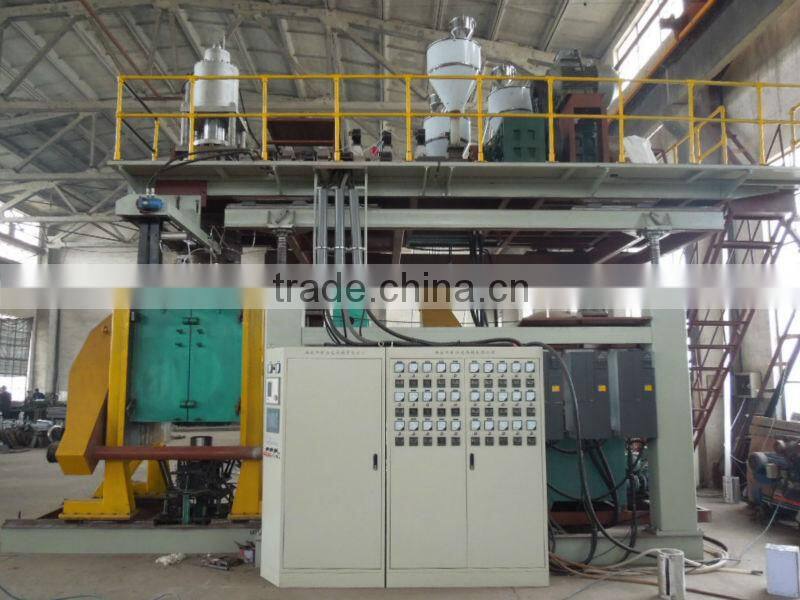

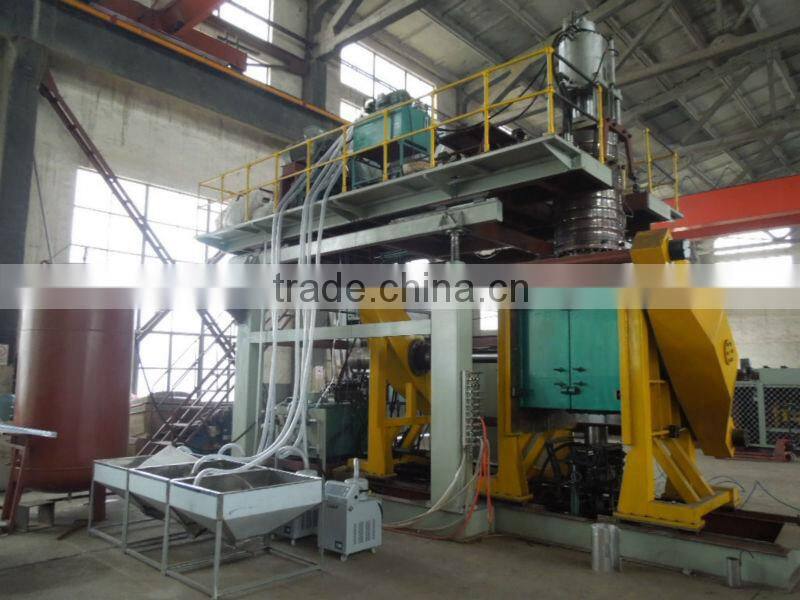

Full Automatic1000L 1 Layer Blow Molding Machine
- Qingdao
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Shandong, China | |
| Brand Name | Sehenda | Model Number | SKJ1000L-1 | |
| Voltage | 380V | Power(W) | 120KW | |
| Dimension(L*W*H) | 7.2m*3.7m*6.2m | Weight | 26 Tons | |
| Certification | CE ans ISO9001 | Warranty | 1 Year Gurantee | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Blow PE or HDPE , PLC: SiemensLow-voltage apparatus: LG
100% point Moog
Seal: Dichtomatik
Drive motor : Siemens
1000 L water tank blow moulding machine( 1layer)
Professional service:
Low-voltage apparatus: LG
Hydraulic component: Yuken
Seal: Dichtomatik
Oli motor: Siemens
Screw motor: Siemens
Proximity switch: Omronor or
PLC: Mitstublish or Siemens
Touch screen: Weinview
Wall thinkness contral system: Moog
Frequency converters: Siemens
Technical Specification | ||||
No. | Item | Unit | SKJ1000L 1 LAYER | |
1 | Max. Product Volume | (L) | 1000 | |
2 | Screw Diameter | (MM) | Φ125*1 | |
3 | Screw L/D Ratio | (L/D) | 30:1 | |
4 | Screw Drive Power | (KW) | 90KW*1 | |
5 | Screw Heating Capacity | (KW) | 32KW | |
6 | No. of Heating Zone | (ZONE) | 8 | |
7 | Output | (KG/H) | ≥300 | |
8 | Oil Pump Drive Power | (KW) | 37KW+7.5KW | |
9 | Clamping Force | (KN) | 1400 | |
10 | Mould Open Spacing | (MM) | 3200 | |
11 | Mould Thickness | (MM) | 1220 | |
12 | Capacity | (L) | 40L | |
13 | Die Heat Capacity | (KW) | 40 | |
14 | No. of Heating Zone | (ZONE) | 4 | |
15 | Die Head Material | 38CRMOALA(accumulator,lining, piston,die) | ||
16 | Control Action | MITSUBISHI PLC | ||
17 | Blowing Pressure | Mpa | 0.6 | |
18 | Cooling Water Pressure | Mpa | 0.2 | |
19 | Size of Machine | (L*W*H)(MM) | 7200*5000*6000 | |
20 | Weight of Machine | (MT) | 26 | |
(The above data is for reference only) | ||||
Main Unit | ||||
No. | Item | Brand | ||
1 | LOW-VOLTAGE APPARATUS | LG | ||
2 | PNEMATIC | China Top Brand | ||
3 | HYDRAULIC COMPONENT | YUKEN | ||
4 | SEAL | DICHTOMATIK | ||
5 | OLI MOTOR | Siemens | ||
6 | SCREW MOTOR | Siemens | ||
7 | PROXIMITY SWITCH | OMRON | ||
8 | PLC | MITSUBISHI | ||
9 | TOUCH SCREEN | WEINVIEW | ||
10 | WALL THINKNESS CONTRAL SYSTEM | MOOG | ||
11 | FREQUENCY CONVERTERS | Siemens | ||
12 | REDUCTION BOX | GUOMAO | ||
