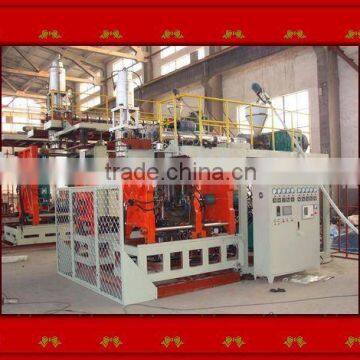

two layers tank machine 500L-2000L
For PE,HDPE and LDPE
Fully automatic
CE,ISO9001:2000
20 year experience...

Technical Specification
No.	Item		Unit	SKJ2000L 3 LAYERS
1	Max. Product Volume		(L)	2000
2	Screw Diameter		(MM)	THREE Φ110
3	Screw L/D Ratio		(L/D)	30:1
4	Screw Drive Power		(KW)	THREE 90
5	Screw Heating Capacity		(KW)	60
6	No. of Heating Zone		(ZONE)	21
7	Output		(KG/H)	400
8	Oil Pump Drive Power		(KW)	45
9	Clamping Force		(KN)	1400
10	Mould Open Spacing		(MM)	3200
11	Mould Thickness		(MM)	1220
12	Capacity		(L)	70
13	Die Heat Capacity		(KW)	48
14	No. of Heating Zone		(ZONE)	5
15	Die Head Material		38CRMOALA(accumulator,lining, piston,die)
16	Control Action		MITSUBISHI PLC
17	Blowing Pressure		Mpa	0.6
18	Cooling Water Pressure		Mpa	0.2
19	Size of Machine		(LWH)(MM)	720050006000
20	Weight of Machine		(MT)	36
(The above data is for reference only)
Main Unit
No.		Item	Brand
1		LOW-VOLTAGE APPARATUS	LG
2		PNEMATIC	AIRTAC
3		HYDRAULIC COMPONENT	YUKEN
4		SEAL	DICHTOMATIK
5		OLI MOTOR	ABB
6		SCREW MOTOR	ABB
7		PROXIMITY SWITCH	OMRON
8		PLC	MITSUBISHI
9		TOUCH SCREEN	WEINVIEW
10		WALL THINKNESS CONTRAL SYSTEM	MOOG
11		FREQUENCY CONVERTERS	ABB
12		REDUCTION BOX	GUOMAO
