Rfid Access Control Metal Keypad
- Shenzhen
- Credit Card
You May Like
-
Wiegand Proximity Garage Card Reader/door Keypad
-
Top Selling Weigand 10000 User Capacity Waterproof Standalone Access Control
-
Hot Fashion 100% Manufacturer Electric Waterproof Standalone Access Control
-
High Porformance Low Power Consumption Hot Waterproof Standalone Access Control
-
Apartment/Hotel/Office Adjustable Hot Waterproof Standalone Access Control
-
New Top Selling Apartmentr Waterproof Standalone Access Control
Product Details
| Place of Origin | Guangdong, China | Brand Name | VIANS, OEM | |
| Model Number | VI-MA50(EM card)/VI-MA51(MF card) |
Product Description

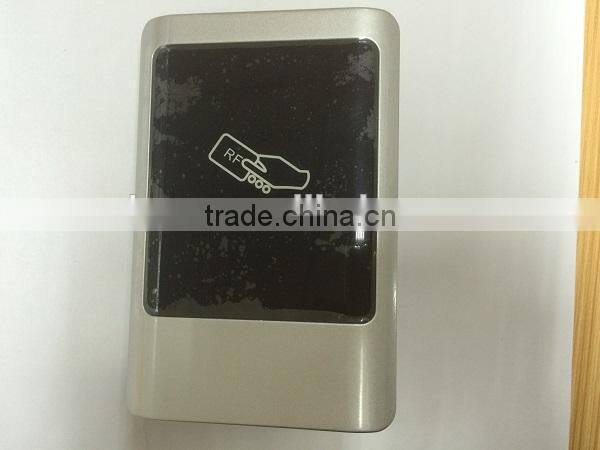

Rfid access control metal keypad
MA Door access control keypad is of single metal keypad, which is produced according to customer's requirements. Comparing with the common control keypads. It is one of the most leading single door access control keypads. It is not only has the function of the controller but aslo built in card reader, which is more convenient for using and installation.

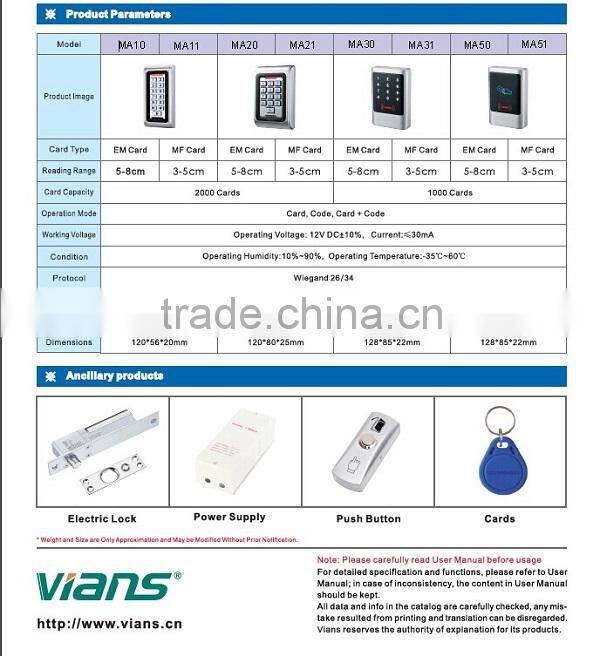

| Operating Voltage | 12V DC |
| User Capacity | 2000 |
| Card Reading Distance | 3-6 cm |
| Active Current | <60mA |
| Idle Current | 25±5 mA |
| Lock Output Load | Max 3A |
| Alarm Output Load | Max 20A |
| Operating Temperature | -45~60°C |
| Operating Humidity | 10%- 90% RH |
| Environment | Conforms to IP68 |
| Adjustable Door Relay time | 0 -99 seconds |
| Adjustable Alarm Time | 0- 3 minutes |
| Wiegand Interface | Wiegand 26 bit/34 |

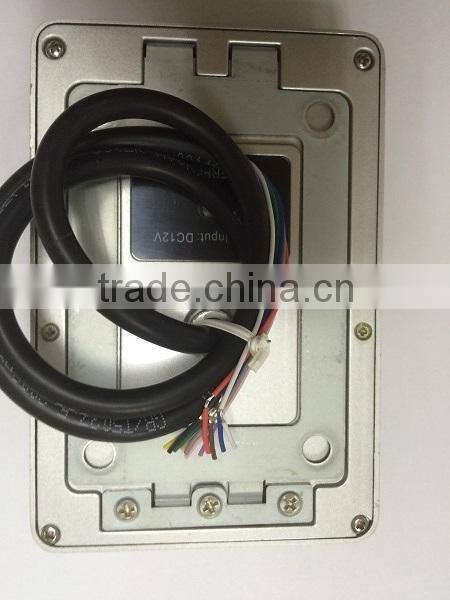

| Wiring Connections | Electric Lock, Exit Button,, External Alarm |
| Dimensions | L128 x W85x H22 mm |

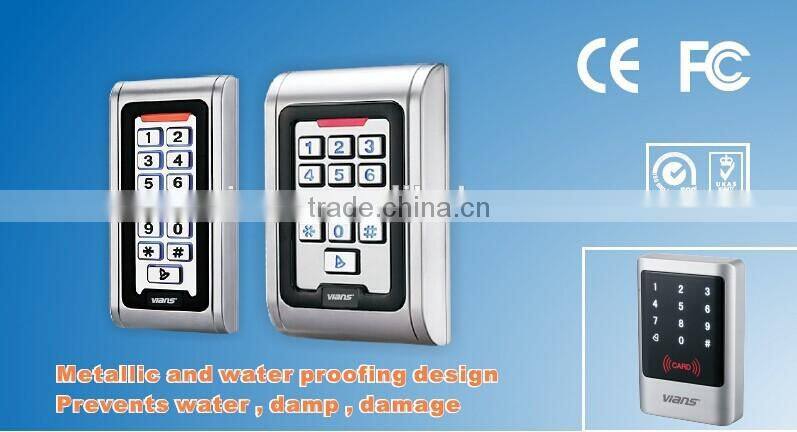

- Waterproof, conforms to IP68
- Strong Zinc Alloy Electroplated anti-vandal case
- Full programming from the keypad
- 2000 uses, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Backlight keys
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time, Alarm time, Door Open time
- Very low power consumption (30mA)
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in light dependent resistor (LDR) for anti tamper
- Built in buzzer
- Red, Yellow and Green LEDS display the working status

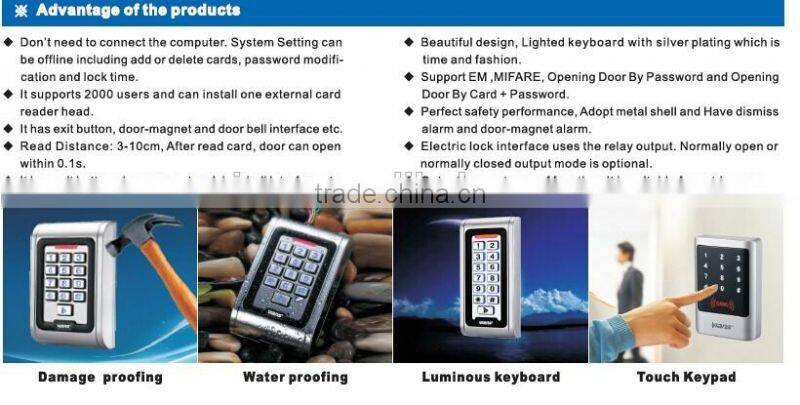

Advantage:

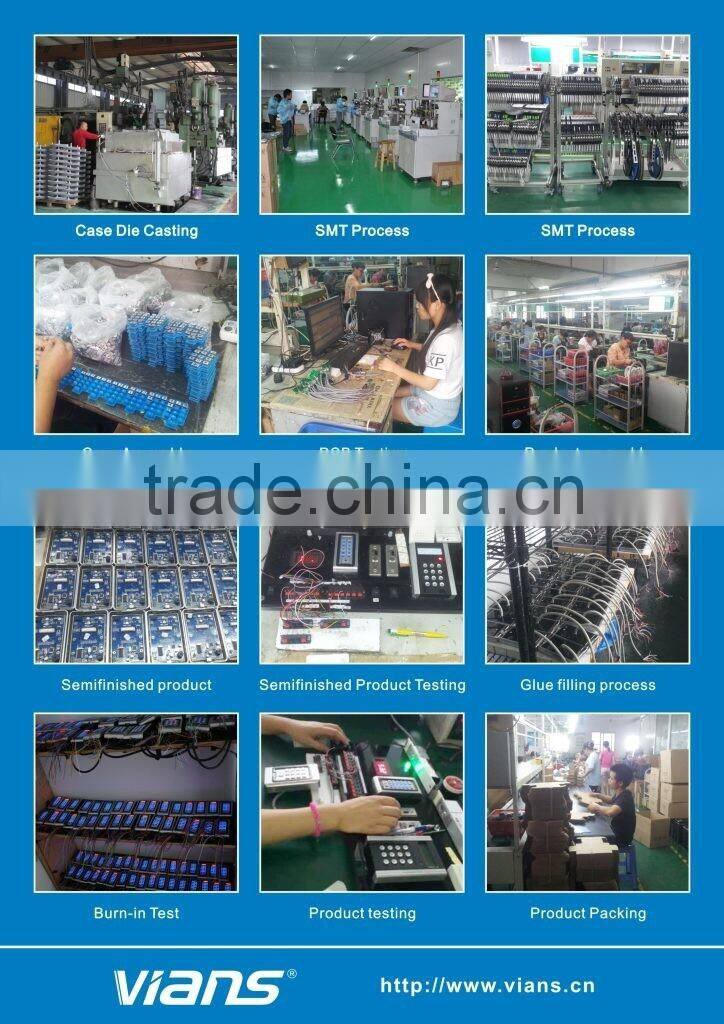

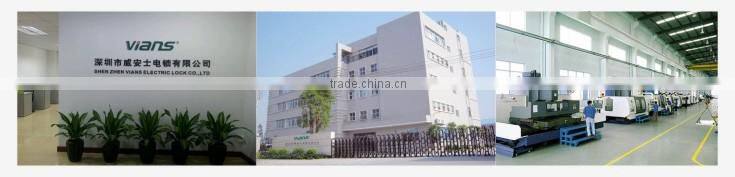

Our Factory:
FAQ:
1.Do you have stock products to sell?
Yes,we have.We are producing our own style everyday at our factory.
2.Do you make OEM order?
Yes,we can produce as your requirements. We also offer FREE OEM soluction.
3.Could you produce our own brand products?
Yes,we can curve your logo on products.

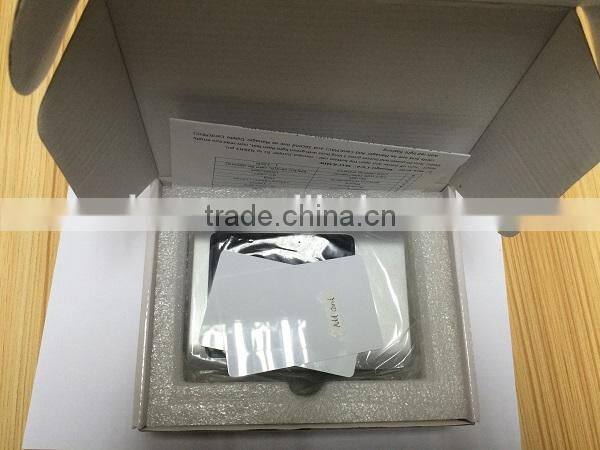

4.Could you customize packing box for me?
Yes,we can customize it for you as your requirement.For detail more information,please contact me!
5.Are you doubt we are really factory?
Welcome you visit our company any time,Or we can answer video call by skype or wechat etc.
We can show you every corner of factory and production lines from 9:00-18:00 Monday-Friday
Thank you for reviewing our products.Welcome to contact me :
Mob:+86 186 8038 5242 (WhatsApp)
Skype ID:eunice.szvians
