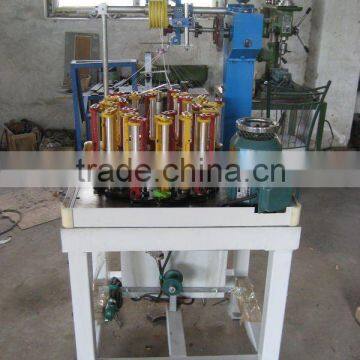

high speed 24 spindle braiding machine

Specifications

wire braiding machine,hydraulic hose braiding machine,glass fiber sleeves braiding machine ,coaxible coaxible cables braiding machine.

wire braiding machine,glass fiber sleeves braiding machine,coaxible cables braiding machine,high tempreture hose braiding machine,conduction band braiding machine.

16/2,24/2,24/1,32/1,36/1,48/1,56/1,64/1.

90series,110series,130series,160series.

110 series 16 spindle high speed wire and cable braiding machine

110 series 24 spindle high speed wire and cable braiding machine

meanwhile we have 90 series,130 series,160series braiding machine.

here only show you 110 series technical data.

we have more than 800 types braiding machines.from 3 spindles to 250 spindles,a lot of series.

diameter of cables :3-12(16 spindle)/2-12wires(24 spindle)

pitch range:10-100mm

spindle speed:30-80rpm

take up spool:600mm,also depend on you requirement.

2 cables produced at a time

frequency control

autostop

with oil bath

etc

2 head wire special winding machines

mean while you need a 12 head wire tension pay-off shelf?

all the spare parts are made by ourselves we have iron casting company.model workshop.etc

we can provide the high quality machine and the best offer after sale.

thanks for your inquiry!
