Home > Products > Pneumatic Products > DNC series ISO6431 standard pneumatic air cylinder

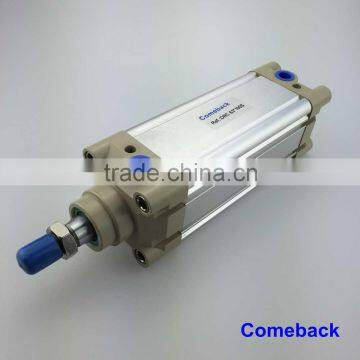

DNC series ISO6431 standard pneumatic air cylinder
USD $5 - $300
/ Piece
50 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- NINGBO
You May Like
-
Angel Seat Pneumatic Valves
-
2015 hot selling factory wholesale Pneumatic Fitting TYPE HVSS
-
2015 hot selling factory wholesale Pneumatic Fitting TYPE PY
-
2015 hot selling factory wholesale Quick Pneumatic Connector Plastic Pneumatic Fitting TYPE PZA
-
2015 hot selling wholesale Quick Pneumatic Connector Plastic Pneumatic Fitting
-
2015 hot selling wholesale Quick Pneumatic Connector Plastic Pneumatic Fitting
Product Details
| Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
| Power | Pneumatic | Body Material | Aluminum | |
| Maximum Stroke | 2000mm | Shaft Diameter | 25-100mm | |
| Place of Origin | Zhejiang, China | Model Number | DNC | |
| Brand Name | Comeback |
Product Description
DNC series ISO6431 standard pneumatic air cylinder
Features:
1.Standard design,simple structure,low starting pressure,smooth motion.
2.Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly,safely and with low noise.
3.With self-lubricating bearing, the piston rod is lubrication free.
4.Very wide used in the automation field, especial in Europe market.
Specification:
Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
Motion Pattern | Double Action | ||||||
Working Medium | Filtered Compressed Air | ||||||
Compression Pressure | 1.5 MPa | ||||||
Max.Operating Pressure | 1.0 MPa | ||||||
Min. Operating Pressure | 0.1 MPa | ||||||
Buffer | Air Buffer(Standard) | ||||||
Condition Temperature | 5~60℃ | ||||||
Operating Speed | 50~500mm/s | ||||||
Margin of Stroke Error(mm) | 0~250 251~1000 1001~1500 | ||||||
Operating Life | Not Less Than 4000km | ||||||
Lubricate | Not Necessary +1.0 | ||||||
Port Size | G1/8" | G1/4" | G3/8" | G1/2" | |||
