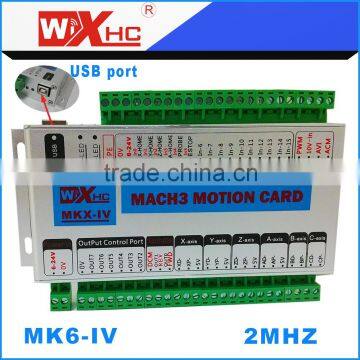

High quality cnc breakout board usb cnc controller mach3 mach3 motion control card

High quality cnc breakout board usb cnc controller mach3 mach3 motion control card

3/4/6 Axis for your option, different axes, different price.

Mach3 motion control card Features

MKX Operating and Installation Instruction

1. please download the latest Mach3 driver from Mach3 official

website:/downloads.php

2. Install the Mach3:

The Parallel Port Driver does not require.

3. Prepare the USB cable

4. Connect the usb cable to MKS usb socket and insert the other end to the PC usb port.

5.The windows will automatically the driver.Wait for the driver installation end

6.Install the MKS card py the NC usbPod.dll to the Mach3Plugins folder.Copy the Mach3mill.xml configure file to the Mach3directory.if you  don’t copy the mach3mill.xml file.

7.You should do as next step

8.Open Mach3 software, Choose “NcusbPod-XHC-Mach3-USB-Motion-Card”,Choose “Don’t ask me this again”

9.if there is a black window in mach3,please click view->loda screen,choose 1024.set.

reset buttion and make it normal.don’t flash.Now everything should be ok,please do what you want.If any problem please refer to shooting troubles.

MKX first run steps

When you first run mks,you should configure the motor parameter,home neg.motor move way.output and input io etc.

1.X,Y,Z,A,B,C-axis output configuration   As shown below:(Config->Ports and Pins). If motor moving way reverse,please make Dir Low Reverse.change form √ to x,or change from x to √.

2.Motor parameter settings.As shown below:(Config->Motor Tuning):Set the motor acceleration,velocity,steps per .

3.The Mach3 Menu->Config->Homing/Limits.Home direction, depends on the “Home Neg”. If home moveing way reverse,please make “Home Neg” Reverse. change form √ to x,or change from x to √.

4.Setup the input signals.(Config->Ports and Pins)

The Pin number is from 0.Suggest Active Low= “√”(Set Low singnal Level for Inputs)

5.Setup the Output signals(Config->Ports and Pins)

The output IO is corresponding with mach3#Output x,Suggest Active Low=“√”(Set Low singnal Level for Inputs).

All the details see instruction

Packaging:

Packaging material: Carton box.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.

C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
