Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | SC |
Product Description

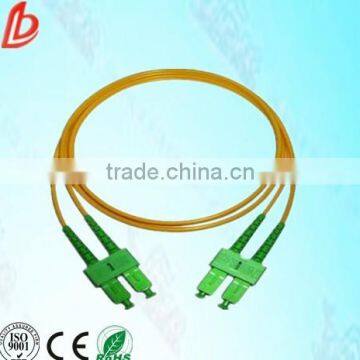

factory supply 2.0mm pvc duplex singlemode 9/125 sc/apc fiber optic patch cord
Specifications
1.Cable Diameter:2mm,3mm
2.Single-mode cable:yellow,white
3.PVC, LSZH,single mode,multimode
Features:
1.Low insertion loss, high return loss
2.High dense connection, easy for operation
3.High credibility and stability
4.Good in repeatability and exchangeability
Applications:
1.Testing equipment
2.FTTX+LAN
3.Optical fiber CATV
4.Optical communication system
5.Telecommunication
Description
Parameter | Unit | FC, SC, LC/ Armoured fiber pigtail | ST, MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
