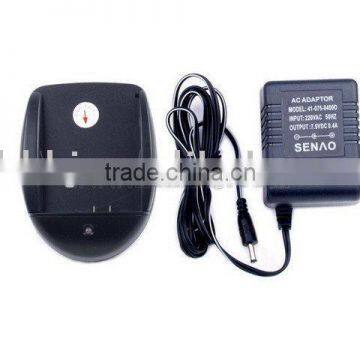

Mobile Charger Cradle For HP 6818

Specifications

Product Details:
Transformer Spec:AC/220V
60Hz 0.06A
Output voltage Capacity:DC 7V/400mA

Charger cradle:
maximum input voltageDC 4.2±0.2V
maximum output current:400mA±20mA

LED Display Mode:
1.Power Light:Green light
2.Charge lamp:Red light
3.Full charge lamp:Green Light

Charger mode:
1.When the battery is placed inside the Charger (below 4.2V), charger cradle to supply current of 400mA ± 20mA. In order to fast-charge mode of charge.
2.When the battery voltage reaches 4.2V ± 0.2V. Charging the battery to stop charging automatically , indicating the battery is already full.

Remark:
1. When the battery protection circuit in the battery not reaches 4.2V ± 0.2V has been activated. The battery protection circuit in accordance with the voltage starts prevail.
2.This product SENAO International introduced the second generation Charger Product (Taiwan country of origin), in improving the appearance on the basis of the Charger  optimizing the internal circuits. Charge actual test performance to reach 100%. Support common batteries and thicker cells, the efficiency of fast charging time is short.

Standard:
Dedicated transformer, Dedicated charging cradle

Phone model:HP iPAQ rw6800/iPAQ rw6818/iPAQ rw6828
O2 XDA Atom/XDA Atom life
