Singlemode simplex FC Square type fiber Optic Adapter /optical fc adapter
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
free sample plastic housing sc adapter sc apc singlemode simplex adaptor
-
Discount selling fiber optical equipment SC/UPC adaptor, sc fiber optic coupler
-
High quality Optic fiber ST/PC Metal Duplex Adapter/Adaptor
-
Single/ One Core LC UPC Polishing Fiber Optic Adapter With The Best Ferrule
-
Professional manfacture Duplex SC /UPC fiber optic adapter, SM/MM SC fiber optic adapter fiber coupler
-
LC MM Duplex fiber optic adapter, LC adapter fiber optic
Product Details
Place of Origin | Guangdong, China | Brand Name | OEM | |
Model Number | FC |
Product Description
Specifications
FC square Fiber adapter1.LOW Insertion Loss,High return loss
2.100% full tested before delievery
3.Fast delivery

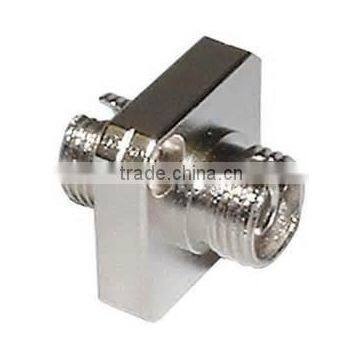

Singlemode simplex FC Square type fiber Optic Adapter /optical fc adapter
Specification:
Singlemode simplex fc fiber Optic adapter
- Solid Type Adapter, Square Type Adapter, -Metal Body
- High reliability,low insertion loss
- High reliability & stability
- simplex,duplex SM MM Quad available
- Good compatibility
- -Available in Square Type, Solid Type, Rectangular Type, D-shaped Type, and Oval Type
- PC,APC,UPC optional
FC fiber optic adapters are with metal housing, single-mode FC adapters are with zirconia sleeves, multi-mode FC adapters are with bronze sleeves.
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Application:
1.Telecome network
2.CATV network
3.Ethernet network
4.Optic communication Equipment
5. .Active device termination
Description:
Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 | ||||||
SM | MM | SM | MM | SM | ||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Durability | Time | >1000 | >1000 | >1000 | ||||||
Operating Temperature | °C | -40~75 | -40~75 | -40~75 | ||||||
Storage Temperature | °C | -45~85 | -45~85 | -45~85 | ||||||
Plug and Unplug force (g/f) | 200—600 | |||||||||
Spec | Simplex and Duplex |

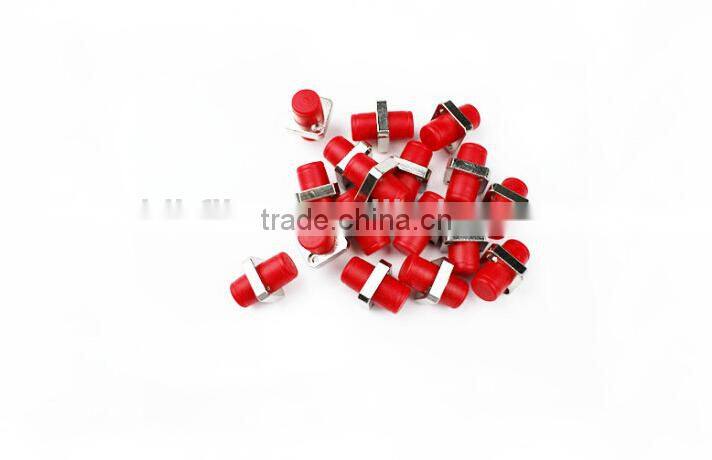

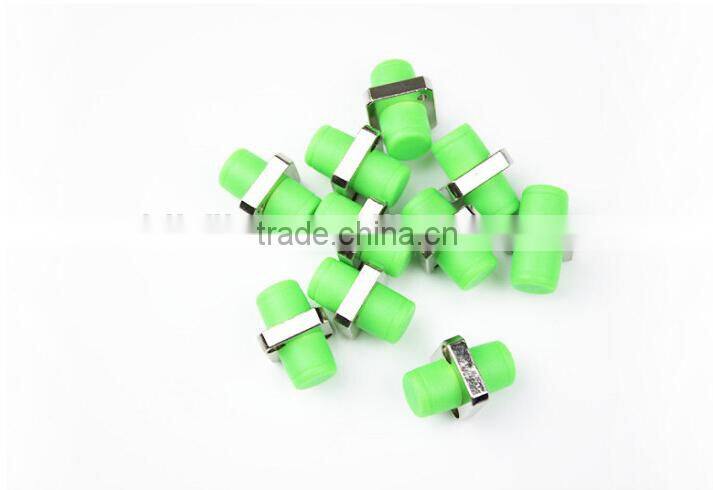

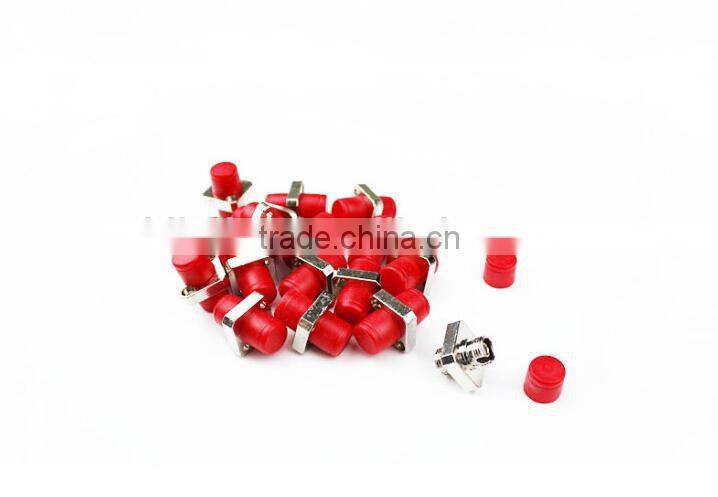

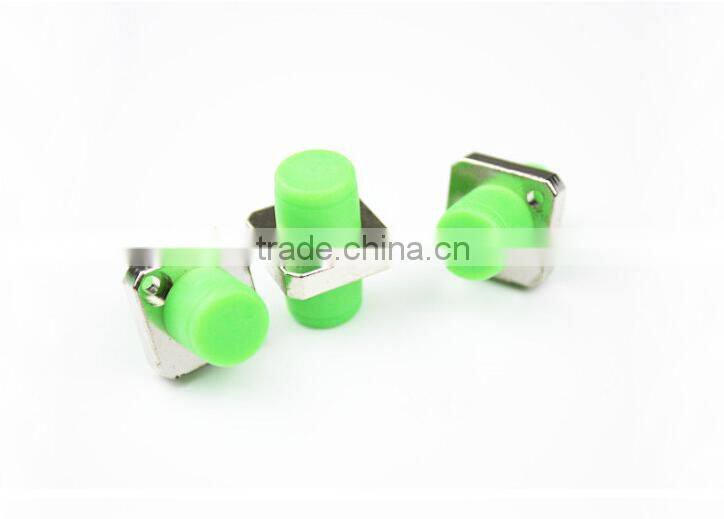

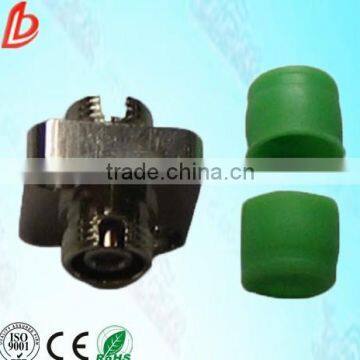

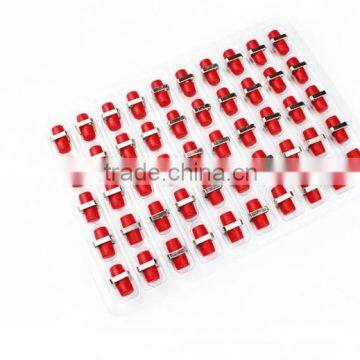

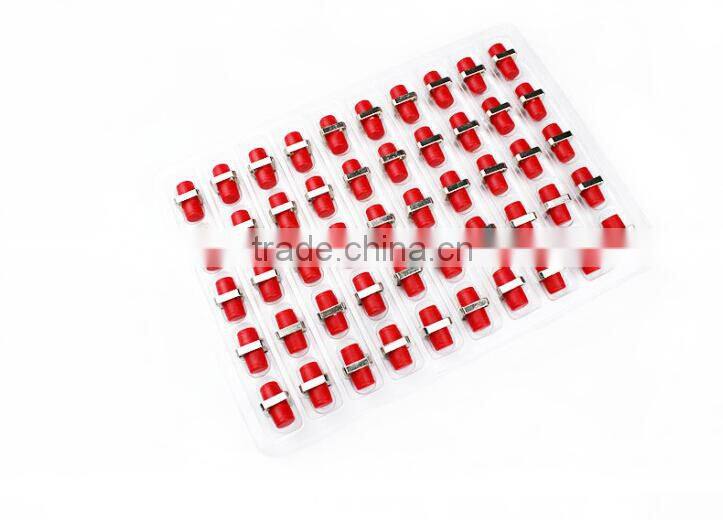

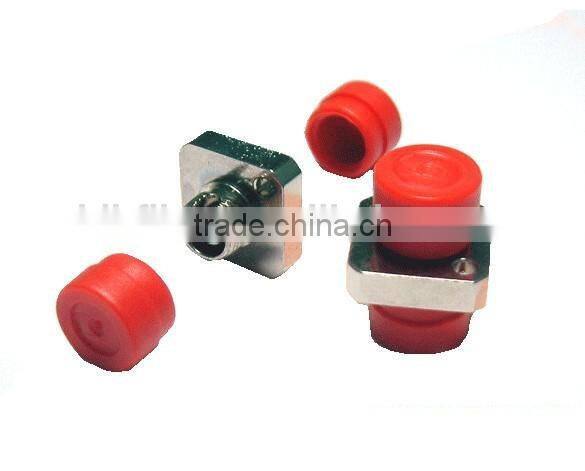

Pictures:
Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
Contact me:
Our company is a professional manufacter in fiber optic equipment more than seven years,we are confident our products will satisfy you.
I will be here to solve your any problems,so welcome to contact me anytime,And i promise i will reply you in 24 working hours.
Our goal is to satisfy you as a customer and in return matanin our excellent reputation.
Contact Us
- Shenzhen BLH Communication Co., Ltd.
- Contact nameSunny Tang Chat Now
- Phone86-755-23764543
- Address6th Building No. 9, Zhongxin Road, Gaofeng Community, Dalang Office, Shenzhen, Guangdong, China (Mainland), Shenzhen, Guangdong
Product Categories
New Products
-
high quality lc sm simplex fiber optic adapter/lc adaptors
-
High quality fibre optica flange adapters simplex st fiber optical cable coupler
-

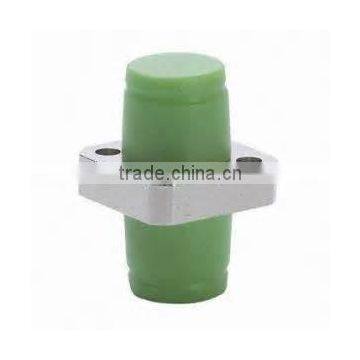

Metal Sleeve green FC/APC Square Fiber optical adapter
-
