Belt Conveyer Fluorite Mine Transportation Machine High Efficiency
- Qingdao or other port
- T/T L/C D/P D/A
You May Like
-
Belt Conveyer Gold Mine Transportation Machine for Myanmar Market
-
Belt Conveyer Copper Mine Transportation Machine 2016 New Technology
-
Belt Conveyer Quartz Mine Transportation Machine for Honduras Market
-
Belt Conveyer Gold Mine Transportation Machine for Sudan Market
-
2016 New Type Belt Conveyer Gold Mine Transportation Machine
-
Belt Conveyer Gold Mine Transportation Machine
Product Details
| Condition | Used | Year | 2016 | |
| Type | Gravity Conveyor | Material | Nylon | |
| Material Feature | Oil Resistant | Structure | Belt Conveyor | |
| Load Capacity | 3-50 T/h | Place of Origin | Shandong, China | |
| Brand Name | JinPeng | Model Number | Customized | |
| Voltage | 220/380V | Power(W) | 38.5 Kw | |
| Dimension(L*W*H) | Customized Size | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Yantai Jinpeng Mining Machinery CO., LTD
Professional mineral processing design, equipment production,installation and conmissioning institue.
Tel: 0086-535-3410275 13153515710

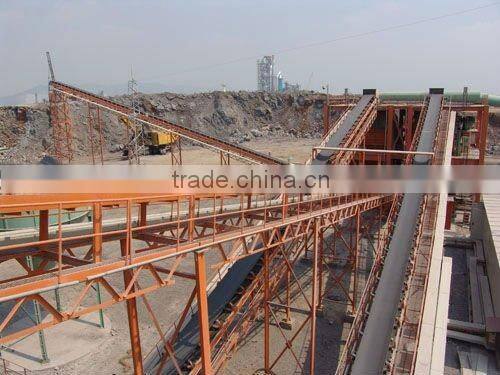

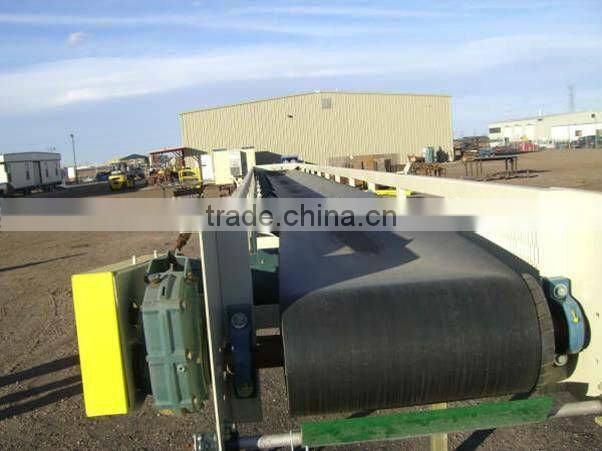

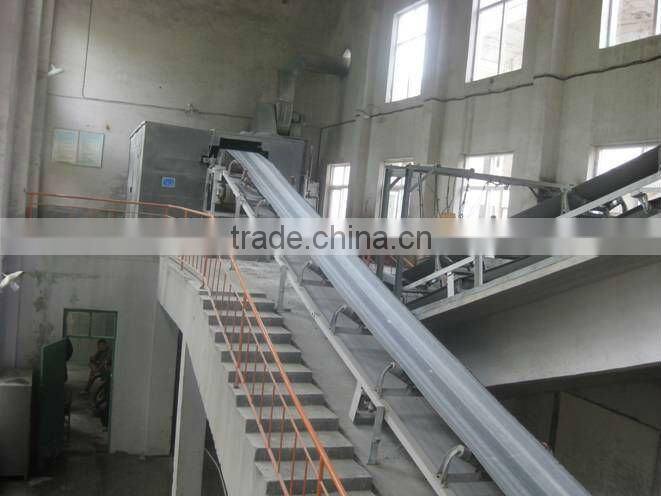

Large Capacity Rubber Belt Conveyor Material handling System
Belt conveyor are widely used in mining. In the mining line, Belt conveyor is generally installed in front of the primary crusher. It can send the ore to crusher evenly and continuously.
Belt conveyor can effectively control the feeding capacity to match with the capacity of the whole crushing palnt.
Notes: The motor can be replaced by speed adjustment motor to adjust the feeding capacity according to the customers requirments.

1,rubber belt have 6 kinds such as 500,650,800,1000,1200,1400mm
2,driving power have 12 kinds, from 1.5 to 200Kw
3,belt speed have 8 kinds such as 0.8,1.0,1.25,1.6,2.0,2.5,3.15,4.0m/s
4,conveying capacity: Table I see (the material capacity r = 1.0 t / m, conveyor angle β ≤ 6 °, the accumulation of material angle = 30 °)
5,the largest dip in Table II (when the next delivery table allows for the max. angle In the value of 80%)

Fracture form | Belt speed (m/s) | Belt width B(mm) | |||||
500 | 650 | 800 | 1000 | 1200 | 1400 | ||
conveying capacity Q(t/h) | |||||||
channel | 0.8 | 78 | 131 | - | - | - | - |
1.0 | 97 | 164 | 278 | 435 | 655 | 891 | |
1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
1.6 | 156 | 264 | 455 | 696 | 1048 | 1427 | |
2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | |
3.15 | - | - | 824 | 1233 | 1858 | 2528 | |
4 | - | - | - | - | 2202 | 2996 | |
Flat | 0.8 | 41 | 67 | 118 | - | - | - |
1.0 | 52 | 88 | 147 | 230 | 345 | 469 | |
1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
1.6 | 84 | 142 | 230 | 368 | 553 | 753 | |
2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
2.5 | 125 | 211 | 350 | 546 | 821 | 1117 | |
Usually used in the following similiar process of gold,silver,copper, lead zinc, molybdenum and so on.







Provide ore dressing experiment,process design and onsite engineering service.
Welcome to visit our lab, design institute and factory!
Contact Us
- Yantai Jinpeng Mining Machinery Co., Ltd.
- Contact nameMatthew Zhu Chat Now
- Phone86-535-3975290
- AddressNo.11 FUZHOU ROAD, DEVELOPMENT ZONE. YANTAI CITY, SHANDONG PROVINCE, CHINA, Yantai, Shandong
