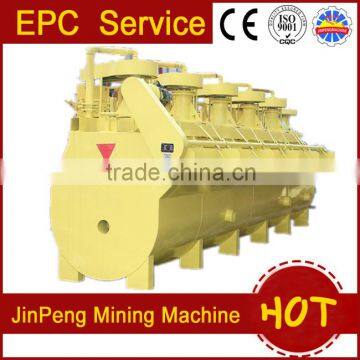

JPF/KYF Air-flate Flotation cell for Sale/ Used in Fluorite Processing site
- 10 Set / Sets per Month
- Qingdao Yantai Tianjin
You May Like
-
Best Quality Flotation Cell for Sale for Antimony Process Plant
-
Flotation Processing Line For Fluorite
-
Lead Zinc Ore Processing machine Flotation Using Chemical Method
-
JINPENG Brand Air-flate Flotation cell for Sale with Good Quality
-
High Efficient Flotation Cell/Best Structure/High Recovery Floation Machine
-
Sulfide Gold Ore Processing Machine-Best Flotation Cell
Product Details
Place of Origin | Shandong, China | Brand Name | Jinpeng | |
Model Number | JP- | Condition | New | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Yantai Jinpeng Mining Machinery CO., LTD
Professional mineral processing design, equipment production,installation and conmissioning institue.
Maria
Cel:0086-13964566356
Skype:song.maria1
Mechanical agitating flotation cell with auto air suction
SF Type Flotation Machine is a new flotation device with dual functions of pulp suction and flotation.
SF Type Flotation Machine is mainly composed of trough, spindle unit with impellers, electric machine, scraper, gearing, etc. For those with capacities over 10m3, nozzle and false bottom are equipped. This type of flotation machine boasts reasonable structure, reliable operation and better performance as compared with other flotation machine with pulp suction capacity. The structure is as follows:
1 Motor 2 Bearing Body 3 Central cylinder
4Tank 5 Impeller 6 Stator 7 Nozzle
1. Large air suction amount and little energy consumption;
2. With the capacities of auto air suction and auto pulp suction; horizontal configuration; requiring no foam pump;
3. Low peripheral speed of impellers; long service life of easily wore parts; large gap between impellers and covers; increased gap between impellers and covers due to abrasion has little effect to the air suction amount;
4.Pulp within the trough carries out upwards and downwards circulation according to fixed direction flow, which is beneficial for the suspension of fine and raw mineral.
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 |
Trough volume(m3) | 0.37 | 0.7 | 1.2 | 2.8 | 4 |
Impeller diameter(mm) | 300 | 350 | 450 | 550 | 650 |
capacity(m2/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 |
Impeller speed(r/min) | 352 | 400 | 312 | 268 | 238 |
Model of motor | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 |
Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | |
Motor power (kw) | 1.5 | 3 | 5.5 | 11 | 15 |
1.1 | 1.1 | 1.1 | 1.1 | 1.5 | |
Dimensions(mm) | 700X700X750 | 900X820X950 | 1100X1100X1100 | 1700X1600X1150 | 1850X2050X1200 |
single troughweight(kg) | 468 | 600 | 1373 | 2338 | 2660 |
Usually used in the following similiar process of gold,silver,copper, lead zinc, molybdenum and so on.
Flotation cell on site
Customers around the world
Warmly welcome to visit our design institute , our lab and factory!
Contact Us
- Yantai Jinpeng Mining Machinery Co., Ltd.
- Contact nameMatthew Zhu Chat Now
- Phone86-535-3975290
- AddressNo.11 FUZHOU ROAD, DEVELOPMENT ZONE. YANTAI CITY, SHANDONG PROVINCE, CHINA, Yantai, Shandong
