led road light Manufacturer UL listed driver OEM Die cast IP68 Can work underwater

Specifications

Why Choose SEPICN LED street light

The 40watts~280watts high quality led street light from SEPICN Lighting,replacement of the HPS or HID street lighting and parking lot.SEPICN led street light is IP68 waterproof,and they could even working under the water.

Features:

1.Modular pluggable technology, tool-free onsite maintenance;

2.Honeycomb briquette burning effect and the whole structure cooling technology;

3.Double-coupling IP68 protection, higher waterproof level;

4.Ultra Robust module technology, single LED's or unit’s damage doesn’t affect other units’  current;

5.Multi-circuit constant-current driver, single module hot-pluggable;

6.Ergonomic light distribution to achieve even illuminating effect;

7.Free serialization and various power solutions.

Honeycomb Briquette effect:

It simulates and adopts the burning principle of honeycomb briquette; it is easy to transform the original block of radiator to various modules, as well as to enable air to convect and fully pass through the gaps between modules by utilizing the honeycomb effect, thus to remove the heat rapidly, and reduce temperature by around 20 °C.

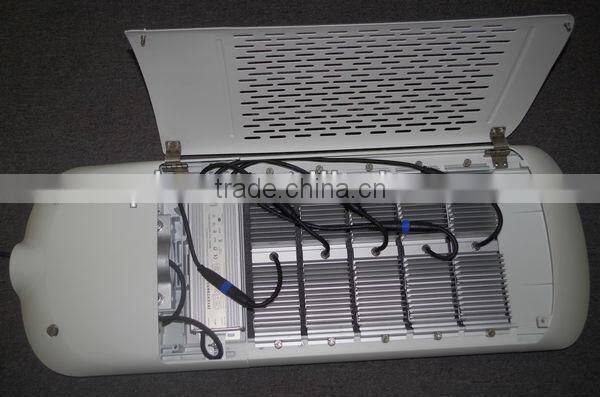

Heat dissipation of the whole structure:

It is available to make clever use of module bracket that only play a supporting role, and to transform it to a “thermal bracket” that is capable of conducting the module’s heat to the light shell as a structural part, thus to promote the cooling effect of radiator of cooling module, the design aims to fully utilize the surface area of structural parts to transfer heat to air.

Tool-free maintenance:

Use special structural design to achieve the manual disassembly and installation of lighting components, in consideration that the high-power lights are generally installed in higher operating environment, the operators require as few tools as possible for their convenience and security.

Independent multi-circuit constant-current output:

Each circuit is independently controlled; any failure in single circuit does not affect the normal work of other circuits. If a single LED unit is damaged, the current distribution isalso even in the entire series and parallel structure, thus protect the whole system and make sure the life span as long as possible.

“Ultra Robust” module technology:

Each LED is equipped with bypass protection, to protect single-circuit structure of the full connection series, even open or short circuit fault can’t affect current and voltage distribution of other LED, the other LED can work under the normal operating mode, thus extending the life cycle of the whole module.

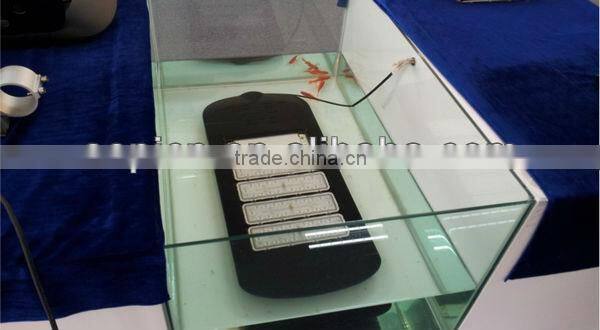

Double-coupling IP68 protection:

It adopts the screw-free structure to avoid the penetration of water vapor through the screw hole; its double silicon-rubber rings insulate LEDs  with the outside environment completely, thus to eliminate any erosion to chips and PCB boards
from outside.

Specifications:

1.Assembled Length (in.) :23.43 in

2.Assembled Height (in.) :3.58 in

3 Assembled Width (in.) :13.00 in

4.Color/Finish:White

5.Lumes:10200Lm

6.Watts:120w

7.Temperature of Junctions(TJ) : <70°C

8.Lighting Source : Philips-Lumileds  Rebel ES V BIN

9.Color Temperature: 4100K, 5300K, 6000 K

10.Note: The installation of the connector: Φ60mm; for other sizes, adapters are needed.
