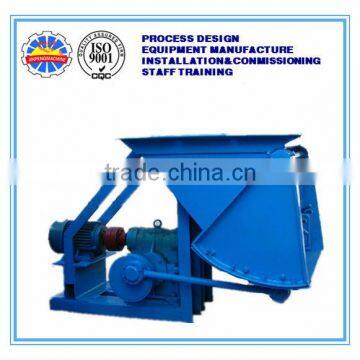

Hot sell vibrating swaying feeder used for ore feeding

Swaying feeders are widely used in mining. In the mining line, swaying feeder is generally installed in front of the primary crusher. It can send the ore to crusher evenly and continuously.

Swaying feeder can effectively control the feeding capacity to match with the capacity of the whole crushing palnt.

Notes: The motor can be replaced by speed adjustment motor to adjust the feeding capacity according to the customers requirments.

1.body nnecting rod 3.gear reducer, 4.flexible coupling, 5.the motor

The device is generally installed in the hopper lower part of the discharge, the materials landed in the body. While working, the motor drives reducer through coupling, and through eccentric disk so that the equipment be placed back and forth movement, which is expected to complete the regulated feed. By adjusting the eccentric plate on the scale, the charge is adjustable.

Usually used in the following similiar process of gold,silver,copper, lead zinc, molybdenum and so on.

1, double-check equipment and hopper bolts fastening the mouth if there is loose.

2, check whether the ministries lubrication point is full of lubricating oil.

rolling bearing grease filling capacity of the cavity 2 / 3.

reducer injects within 30 # engine oil, the oil reaches worm gear tooth surface high degree of 1.5 times.

3, adjust the distance between flashboard to swing according to the feeding particle requirements.

4, when equipment is starting, the body does not allow too much of the material, it should be the normal operation of equipment before it can start feeding.

5, the first stop should be to stop feeding, the electrical motor can be closure after all the materials are discharged.

Provide ore dressing experiment,process design and onsite engineering service.
