Regenerating Activated Carbon Kiln new technology

Specifications

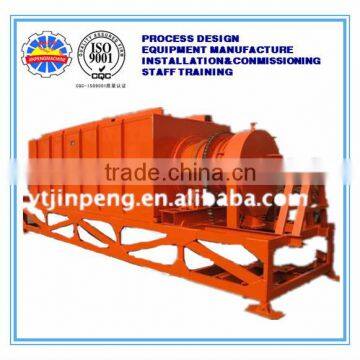

Activated Carbon Regeneration Kiln
1. Easy adjustment
2. Reliable operation and easy maintenance
3. Less power consumption

Yantai Jinpeng Mining Machinery CO., LTD

Professional mineral processing design, equipment production,installation and conmissioning institue.

Weicaht:  0535-3410275

Activated Carbon Regeneration Kiln for gold extraction

 Activated Carbon Regeneration Kiln is suitable for all-sliming cyanidation-zinc method in the process of gold, also can be used in other industries roasting or drying.

1. Structure

Regenerating activated carbon kiln ZSL-80Kg/h is made of seven parts, such as rotary cylinder, heat preservation kiln body, spiral feeding device, head cover, rear cover, kiln body tilt regulator, electrical control cabinet. Rotary cylinder is a rotating heating device, rotated by the motor through chain drive and complete the whole process of drying, carbonization and activation once for all

Control cabinet through the regulating of cylinder motor rotating speed to make the activated carbon in the cylinder body heated evenly, and to determine the carbon retention time in the cylinder.

2. Working principle

The active carbon adsorbs the thermal decomposition type and hard to desorption type organic material, through the heating of activated carbon at high temperature, volatiles and carbonizes the organic material, then to complete the whole regeneration, the carbide and active carbon activated simultaneously. The regeneration process can be divided into three stages:

 1) Drying

 Heat the hydrous activated carbon to evaporate the adsorbed water and volatilize some low boiling point organic compounds.

 2) Carbonation

 Heat up the activated carbon continually, the different organic matter will volatilize, decompose, or carbonize.

 3) Activation

 After the high temperature carbonization of organic matter, there are some carbides residual left in the micropore of activated carbon, at the same time carbides active through the steam etc oxide gas to gasify the residuals, through which to clean the activated carbon’s micropore, and also generate some new micro hole, both work together to activate activated carbon.

 The reaction equation of carbides and oxide gas as follows:

            C+O2=CO2

         C+H2O=CO+H2

         C+CO2=2CO

Used in the following gold CIP flowchart.

Provide ore dressing experiment,process design and onsite engineering service.

Welcome to visit our lab, design institute and factory!
