High Quality 5.4x5.0x1.6mm 30mA Surface Mount Ws2811 5050 Smd Rgb Led Chip
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Model Number | HQ61-2301RGBC, HQ61-2301RGBC | Chip Material | InGaN | |
| Emitting Color | Tri-Color(Red-Blue-Green) | Luminous Intensity | 2000mcd | |
| Luminous Flux(lm) | 24-26lm | Optical Attenuation(%) | 5 | |
| Power | Other, 0.3W | Power Dissipation | 75 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | R:620-625nm G:525-530nm B:465-470nm | |
| Operating Temperature(℃) | -35, 80 | Storage Temperature(℃) | -40, 90 | |
| Place of Origin | Guangdong, China | Brand Name | Harvatek | |
| Certification | CE, CE, CE |
Product Description
High quality 5.4x5.0x1.6mm 30mA surface mount ws2811 5050 smd rgb led chip
1. Features |
l Package ( L/W/H ) : 5.4 × 5.0 × 1.6 mm l Color : Ultra Bright BRG Full Color l Lens: Water Clear Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |

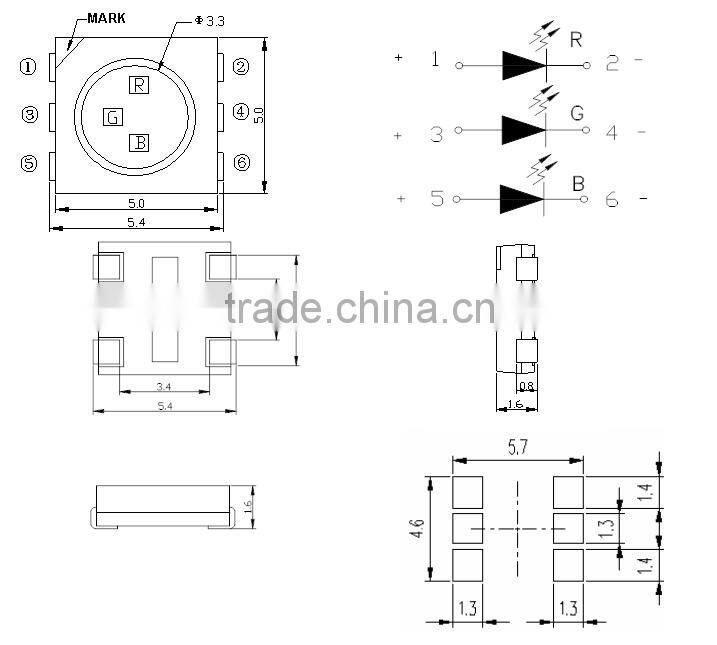

Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit | ||
Power Dissipation | Pd | B | 90 | mW | |
|
| R | 90 |
| |
|
| G | 90 |
| |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | B | 100 | mA | |
|
| R | 80 |
| |
|
| G | 100 |
| |
DC Forward Current | IF | B | 30 | mA | |
|
| R | 30 |
| |
|
| G | 30 |
| |
Reverse Voltage | VR | B | 5 | V | |
|
| R | 5 |
| |
|
| G | 5 |
| |
Operating Temperature Range | Topr | -30°C ~ + 85°C | |||
Storage Temperature Range | Tstg | -40°C ~ + 90°C | |||
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | |||
Electrostatic Discharge | ESD | 2000 | V | ||

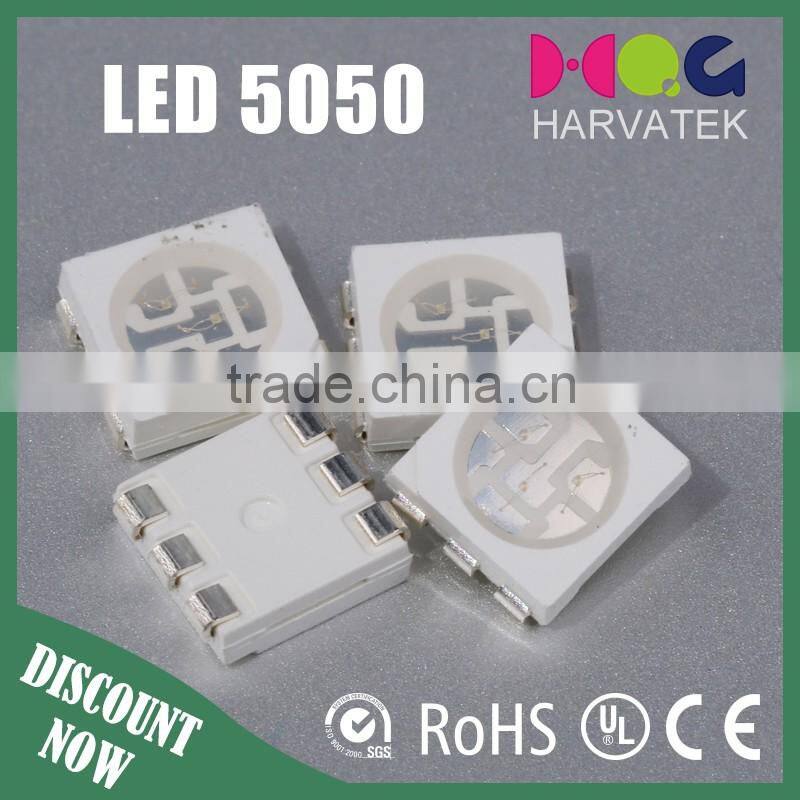

2. Products View
1. Your inquiry related to our products or prices will be replied in 10 hours.
2. We have own independent R&D department on existing products for better maintenance, and still continue to develop some high-tech products. We have our own patented products.
3. Well-trained and experienced staffs to answer all your inquiries in fluent English.
4. We offer two-year’s warranty for our products and provide free technical guidance services.
For more details of ws2811 5050 smd rgb led chip and free samples, click the "send" below to contact us!
