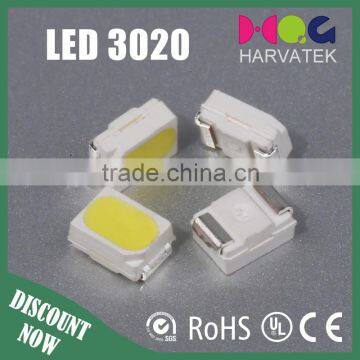

Good quality 3.0x2.0x1.3mm sanan chip 30mA cool white led smd 3020
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
New 5000-6500K sanan chip 30mA ultra bright 3020 natural white smd led
-
2800-3500K sanan chip 3.0x2.0x1.3mm 30mA 3020 white smd led datasheet
-
Free samples 4.0x0.8x1.4mm 30mA 335 side view yellow smd led
-
High quality 3.2x1.5x1.1mm side view 30mA 335 red smd led
-
Good price 4.0x0.8x1.4mm sanan epistar chip 30mA 335 blue smd led
-
Good quality 4.0x0.8x1.4mm sanan chip 30mA 335 green smd led specification
Product Details
| Model Number | HQ45-2100UWC, HQ45-2100UWC | Chip Material | InGaN | |
| Emitting Color | Cool White | Luminous Intensity | 3000mcd | |
| Luminous Flux(lm) | 22-24 | Optical Attenuation(%) | 5 | |
| Power | 0.1W | Power Dissipation | 75 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 7000-11000K | |
| Operating Temperature(℃) | -35, 80 | Storage Temperature(℃) | -40, 90 | |
| Place of Origin | Guangdong, China | Brand Name | Harvatek | |
| Certification | CE, CE, CE |
Product Description
Good quality 3.0x2.0x1.3mm sanan chip 30mA cool white led smd 3020
1. Features |
l Package ( L/W/H ) : 3.0×2.0×1.3 mm l Color : Ultra High Bright White l Lens: Yellow Diffuse Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |
Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit | |
Power Dissipation | Pd | 90 | mW | |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | 100 | mA | |
DC Forward Current | IF | 30 | mA | |
Reverse Voltage | VR | 5 | V | |
Operating Temperature Range | Topr | -30°C ~ + 85°C | ||
Storage Temperature Range | Tstg | -40°C ~ + 90°C | ||
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | ||
ESD CLASS | ESD | 2000 | V | |
2. Products View
1. Your inquiry related to our products or prices will be replied in 10 hours.
2. We have own independent R&D department on existing products for better maintenance, and still continue to develop some high-tech products. We have our own patented products.
3. Well-trained and experienced staffs to answer all your inquiries in fluent English.
4. We offer two-year’s warranty for our products and provide free technical guidance services.
For more details and free samples of led smd 3020, click the "send" below to contact us!
