Linear Type 13*23*61 mm Linear Sliding Bearings Linear13L
- Shanghai Guangdong
- Money Gram Credit Card PayPal
You May Like
-
Linear Type 60*90*209 mm Linear Sliding Bearings KB60L
-
Low Friction 50*75*192 mm Linear Bearing KB50L
-
Linear Series 30*47*123 mm Linear Sliding Bearings KB30L
-
High Quality 25*40*112 mm Linear Bearing KB25L
-
Standard 20*32*80 mm Lengthening Linear Bearing KB20L
-
Low Friction 12*22*61 mm Linear Bearing KB12L
Product Details
| Brand Name | YNR | Precision Rating | ABEC-1, ABEC-3,ABEC-5 | |
| Model Number | LM13L | Place of Origin | Jiangsu, China |
Product Description
LM type 13*23*61 mm Linear sliding bearings LM13L
LM type 13*23*61 mm Linear sliding bearings LM13L
bearings & linear bearing feature
2.linear motion system
3.small load
4.high-precision and smooth movement
5.OEM avaliable
Specifications:
linear bearings are used in conjunction with quenching. For the infinite linear motion system.
Load balls and hardened shaft because it is point contact, allowing smaller loads, but the straight line movement,
minimal friction, high precision and fast motion.
Picture:

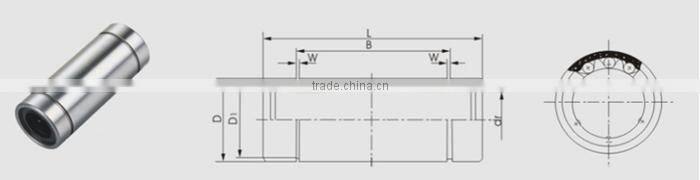

Drawing:
Parameter:
| Bearing code | Number of ball row | Main dimension | Basic load rating | Weight | ||||||
| Inner diameter | Outer diameter | Length | Outer locking groove | W | Dynamic | Static | ||||
| dr | D | L | B | D1 | c(kgf) | Co(kgf) | ||||
| LM6L | 4 | 6 | 12 | 35 | 27 | 11.5 | 1.1 | 33 | 54 | 14 |
| LM8L | 4 | 8 | 15 | 45 | 35 | 14.3 | 1.1 | 44 | 80 | 26 |
| LM10L | 4 | 10 | 19 | 55 | 44 | 18 | 1.3 | 60 | 112 | 55 |
| LM12L | 4 | 12 | 21 | 57 | 46 | 20 | 1.3 | 83 | 160 | 58 |
| LM13L | 4 | 13 | 23 | 61 | 46 | 22 | 1.3 | 83 | 160 | 77 |
| LM16L | 5 | 16 | 28 | 70 | 53 | 27 | 1.6 | 126 | 240 | 147 |
| LM20L | 5 | 20 | 32 | 80 | 61 | 30.5 | 1.6 | 143 | 280 | 171 |
| LM25L | 6 | 25 | 40 | 112 | 82 | 38 | 1.85 | 159 | 320 | 400 |
| LM30L | 6 | 30 | 45 | 123 | 89 | 43 | 1.85 | 254 | 560 | 472 |
| LM35L | 6 | 35 | 52 | 135 | 99 | 49 | 2.1 | 270 | 640 | 708 |
| LM40L | 6 | 40 | 60 | 151 | 121 | 57 | 2.1 | 350 | 820 | 1090 |
| LM50L | 6 | 50 | 80 | 192 | 148 | 76.5 | 2.6 | 620 | 1622 | 2800 |
| LM60L | 6 | 60 | 90 | 209 | 170 | 86.5 | 3.15 | 770 | 2040 | 3800 |
Packaging & Shipping:
1. Normally use default industrial package with our own logo, customerized logo and marking is also acceptable.
2. Make special plywood box for big bearing or small bearing big order.
Leading time:
--Normally we have most bearings in stock with plenty quantities, so we are able to ship the goods immediately once confirm your payment.
-- For big order or special new design bearing, we need around 20 days for production then ship out.
Payment terms
-- 30% paid in advance as deposit, the balance shall be cleared before shipping-
-- other payment methods: Paypal, WestUnion, etc.
About our company:
Nanjing Younarui Bearing Co., Ltd. is a professional and one of the leading manufacturer of variouse bearings since 2004. After many years efforts,
our company has got very good reputation and establish long term business relationship with many client from both at home and abroad, especially in European and American markets.
Our own bearing brand is "YNR". Welcome to contact us.
Our Main products:
Spherical roller bearing, deep groove ball bearing, taper roller bearing, thrust bearing, angular contact ball bearing, cylindrical roller bearing, thrust ball bearing, thrust roller bearing,
self-aligning roller bearing, needle roller bearing, linear guide bearing and slewing bearing, etc.
We are professional company and sales various types of bearings,click the following picture to check the details informations of other bearings:
| |
| Deep groove ball bearing | Needle bearings |
| |
| Cylindrical roller bearing | Thrust spherical roller bearing |
If haven't find the product you want,pls contact us directly!!!
LM type 13*23*61 mm Linear sliding bearings LM13L
...
