High Intensity Red Top View 625nm SMD LED
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Model Number | HQ19-2132SURC | Chip Material | AlGaInP | |
| Emitting Color | Red | Luminous Intensity | Customers' Requirements | |
| Luminous Flux(lm) | R:400-600MCD | Optical Attenuation(%) | 5 | |
| Power | 0.06W | Power Dissipation | 75 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | R:620-630nm | |
| Operating Temperature(℃) | -35, +85 | Storage Temperature(℃) | -45, +90 | |
| Place of Origin | Guangdong, China | Brand Name | Harvatek | |
| Certification | CE |
Product Description
High intensity red Top view 625nm SMD LED
What is the details of our 0603 smd led chips ?

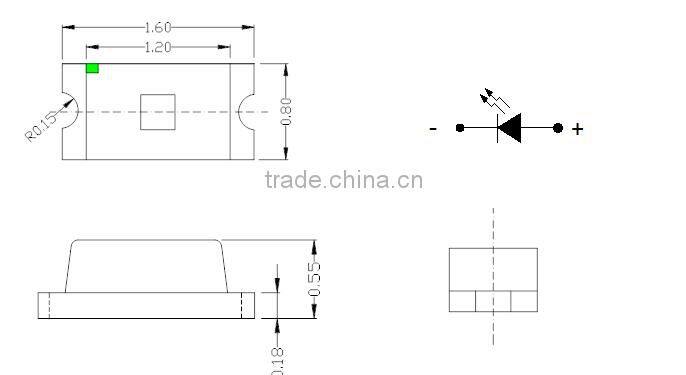

l Package ( L/W/H ) : 1.6 × 0.8 × 0.55 mm
l Color : Ultra Bright Red
l Lens: Water Clear Flat Mold
l EIA STD Package
l Meet ROHS, Green Product
l Compatible With SMT Automatic Equipment
Compatible With Infrared Reflow Solder
What is the Specifications of our 0603 smd led chip ?
Product Photos
Packaging & Shipping , Trade terms :
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Payment Terms
1. Payment: T/T; 30% deposits; 70% balance before delivery.
2. MOQ:1Reel
3. Warranty : 50000 hours
4. Package Information: reel---tape---aluminum moisture-proof bag--10bags/carton--5catons/box box size:65.72*25.40*21.90cm or 25.875*10*8.625inches
1. Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
