Hot Sales China Made Full Ceramic Ball Bearing 694
- SHANGHAI QINGDAO SHENZHEN
- L/C Credit Card PayPal
You May Like
-
Hot Sales China Made Full Ceramic Ball Bearing 686
-
Hot Sales China Made Full Ceramic Ball Bearing 683
-
Hot Sales China Made Full Ceramic Ball Bearing 675
-
Hot Sales China Made Full Ceramic Ball Bearing 698
-
Hot Sales China Made Full Ceramic Ball Bearing 696
-
Hot Sales China Made Full Ceramic Ball Bearing 687
Product Details
| Brand Name | YNR or OEM | Bore Size | 6, 980 | |
| Outside Diameter | 9, 1060 | Model Number | 694 | |
| Precision Rating | ABEC1,ABEC3,ABEC5 | Seals Type | Open, Z,ZZ,RS,2RS,RZ,2RZ | |
| Number of Row | Single Row | Place of Origin | Jiangsu, China |
Product Description
Hot sales China made Full Ceramic Ball Bearing 694
Ceramic SI3N4 ZRO2 Deep groove ball bearings :
Deep groove ball bearing is suitable for Sustain radial,acial,or compasite load.
Provide both high-running accuracy &high-speed operation , Can replace high speed angular contact ball bearings
.
1)Full ceramic bearing Zro2 materia :
Full ceramic bearing Zro2 material has perfect propriety such like suitable for low and high temperatures,high load capacity,corrosion resistance,nonmagnetic insulated and self lubrication.thus it suit for the specific applications which are not available for bearing steel and hybrid construction ceramic ball bearing materials.
2)Full ceramic bearing Si3N4 materia:
Full ceramic bearing Si3N4 material has similar propriety as ZrO2 material,besides it has low weight.good wear resistance.high hardness.and it can bear higher temperature than ZrO2 material.
| P/N | 694L | ||
| Brand | OEM | ||
| Material | ZrO2 | ||
| Dimension | 10x19x5 mm | ||
| Precision | ABEC-1 | ||
| Vibration | V1, V2, V3 Available | ||
| Play or Clearance | C0, C1, C2, C3 Available | ||
| Noise | Z1, Z2, Z3 Available | ||
| Closure Type | Open Type | ||
| Speed RPM | 37,000 | ||
| Load Cr N | 1,716 | ||
| Load Cor N | 840 | ||

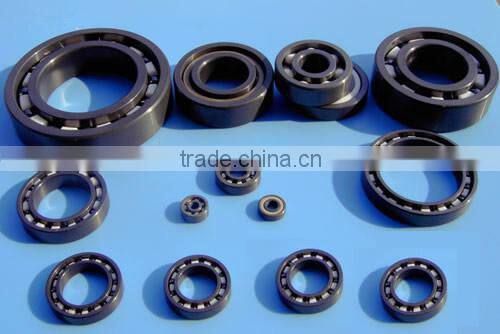

Ceramic bearing:
1.Ceramic Bearings have two types of ceramic bearing, hybrid ceramic bearing and full ceramic bearing.The hybrid ceramic bearing has steel inner and outer rings with ceramic balls.
2.Ceramic Bearings, Si3N4 stands for the silicon nitride ceramic material and is black colored,
3.Ceramic Bearings, SiC stands for the silicon carbide material and is alsoblack colored.
4.Ceramic Bearings, ZrO2 stands for the zirconium dioxide, also known as zirconia or zirconium oxide, they are white colored, a ZrO2 ball looks exactly like a pearl.
5.The ceramic material is not stronger than steel, but ceramic bearing are lighter and have lower friction than steel, which makes ceramic bearing go faster with lower heat generated
More Ceramic Ball bearings are available in our company as following tables:
| Iem No. | Boundary Dimensions(mm) | Basic load ratings(Lbf) | Weight(Lb.) | ||||
| d | D | B | Dynamic | Static | |||
| OPEN | ZZ/2RS | Cr | Cor | ||||
| 603 | 3 | 9 | 3 | 5 | 128.14 | 35.97 | 0.00198 |
| 604 | 4 | 12 | 4 | 4 | 218.06 | 80.93 | 0.00462 |
| 605 | 5 | 14 | 5 | 5 | 292.25 | 110.16 | 0.0077 |
| 606 | 6 | 17 | 6 | 6 | 508.07 | 166.36 | 0.01276 |
| 607 | 7 | 19 | 6 | 6 | 526.05 | 200.08 | 0.01672 |
| 608 | 8 | 22 | 7 | 7 | 741.87 | 303.49 | 0.0264 |
| 609 | 9 | 24 | 7 | 7 | 764.35 | 325.97 | 0.0352 |
| 623 | 3 | 10 | 4 | 4 | 143.88 | 49.46 | 0.0044 |
| 624 | 4 | 13 | 5 | 5 | 294.5 | 110.16 | 0.0066 |
| 625 | 5 | 16 | 5 | 5 | 395.66 | 152.87 | 0.0088 |
| 626 | 6 | 19 | 6 | 6 | 526.05 | 198.96 | 0.0176 |
| 627 | 7 | 22 | 7 | 7 | 753.11 | 314.73 | 0.0308 |
| 628 | 8 | 24 | 8 | 8 | 899.23 | 357.44 | 0.0352 |
| 629 | 9 | 26 | 8 | 8 | 1022.88 | 438.38 | 0.0418 |
| 633 | 3 | 13 | 5 | 5 | 292.25 | 110.16 | 0.0066 |
| 634 | 4 | 16 | 5 | 5 | 395.66 | 152.87 | 0.011 |
| 635 | 5 | 19 | 6 | 6 | 526.05 | 198.96 | 0.0176 |
| 636 | 6 | 22 | 7 | 7 | 741.87 | 303.49 | 0.0286 |
| 637 | 7 | 26 | 9 | 9 | 910.47 | 364.19 | 0.0528 |
| 638 | 8 | 28 | 9 | 9 | 1022.88 | 438.38 | 0.0638 |
| 639 | 9 | 30 | 10 | 10 | 1146.52 | 537.29 | 0.077 |
| 673 | 3 | 6 | 2 | 2.5 | 54.4 | 21.13 | 0.00044 |
| 674 | 4 | 7 | 2 | 2.5 | 60.47 | 38.22 | 0.000616 |
| 675 | 5 | 8 | 2 | 2.5 | 65.64 | 31.92 | 0.000704 |
| 676 | 6 | 10 | 2.5 | 3 | 119.15 | 53.95 | 0.00143 |
| 677 | 7 | 11 | 2.5 | 3 | 124.77 | 60.47 | 0.001474 |
| 678 | 8 | 12 | 2.5 | 3.5 | 129.26 | 66.99 | 0.00165 |
| 683 | 3 | 7 | 2 | 3 | 81.52 | 26.44 | 0.000726 |
| 684 | 4 | 9 | 2.5 | 4 | 136.59 | 48.47 | 0.001386 |
| 685 | 5 | 11 | 3 | 5 | 138.8 | 57.28 | 0.00242 |
| 686 | 6 | 13 | 3.5 | 5 | 231.33 | 88.12 | 0.00418 |
| 687 | 7 | 14 | 3.5 | 5 | 251.16 | 114.65 | 0.00462 |
| 688 | 8 | 16 | 4 | 5 | 283.26 | 132.64 | 0.00682 |
| 689 | 9 | 17 | 4 | 5 | 298.99 | 149.5 | 0.00704 |
| 693 | 3 | 8 | 3 | 4 | 125.89 | 42.71 | 0.001342 |
| 694 | 4 | 11 | 4 | 4 | 215.82 | 76.43 | 0.00374 |
| 695 | 5 | 13 | 4 | 4 | 296.75 | 110.16 | 0.00528 |
| 696 | 6 | 15 | 5 | 5 | 393.41 | 150.62 | 0.00858 |
| 697 | 7 | 17 | 5 | 5 | 359.69 | 159.61 | 0.01166 |
| 698 | 8 | 19 | 6 | 6 | 386.67 | 188.84 | 0.01584 |
| 699 | 9 | 20 | 6 | 6 | 550.78 | 236.05 | 0.018 |
1. wheel bearing packing: Plastic tube(5 or 10 pieces) + Carton box + wooden pallet
2. According to customer's requirement
Nanjing Younarui Bearing Co.,Ltd is a professional deep groove ball bearing NSK Bearing manufacture with over ten years’ experience in China. With our industrial technology development, we have occupied huge space in the world market. In addition, we are able to import and produce NSK bearings and many other world famous brand bearings, our main products including all kinds of roller bearings, ball bearings, pillow block bearings, joint bearings, needle bearings, linear bearings, etc. Welcome to visit our company for long term cooperation1!
| Deep groove ball bearings | 6000-6092,6200-6252,6300-6334,6405-6420 | |
| Angular contact ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF serie | |
| Thrust ball bearing | 11 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
| Tapered roller bearings | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
| Spherical roller bearings | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on | |
| Thrust roller bearings | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
| Cylindrical roller bearings | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used inSteel Industry. | |
| Besides, we can also supply linear motion bearings, pillow block bearings, water pump bearings, cross bearings, ceremic bearings, wheel bearings, etc. | ||
| Contact person | Julie |
| Email: | bearing03(at) |
| Company Address | NO.158, Lushan Road, Jianye District,Nanjing City, Jiangsu province. China |
| Website | |
| Telephone: | +86 25 5227 1957 |
| Company name | NANJING YOUNARUI BEARING CO.,LTD |
...
