Product Details
| Model Number | HQ99-2160UYC, HQ99-2160UYC | Chip Material | InGaN | |
| Emitting Color | Yellow | Luminous Intensity | 230mcd | |
| Luminous Flux(lm) | 20-22LM | Optical Attenuation(%) | 5 | |
| Power | 0.06W | Power Dissipation | 75 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | Y: 582-597nm | |
| Operating Temperature(℃) | -35, 80 | Storage Temperature(℃) | -40, 90 | |
| Place of Origin | Guangdong, China | Brand Name | Harvatek | |
| Certification | CE, CE, CE |
Product Description

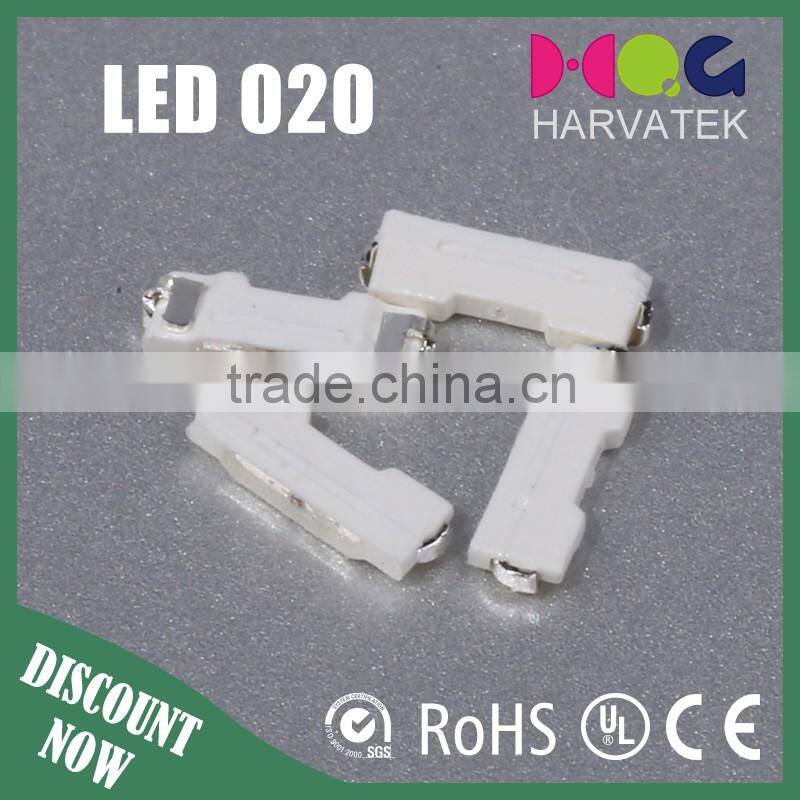

Good quality 3.8x0.6x1.2mm surface mount 020 side view yellow smd led
1. Features |
l Package ( L/W/H ) : 3.8*0.6*1.2mm l Color : Ultra High Bright Yellow l Lens: Water Clear Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |
Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit | |
Power Dissipation | Pd | 90 | mW | |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | 70 | mA | |
DC Forward Current | IF | 30 | mA | |
Reverse Voltage | VR | 5 | V | |
Operating Temperature Range | Topr | -30°C ~ + 85°C | ||
Storage Temperature Range | Tstg | -40°C ~ + 90°C | ||
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | ||
ESD CLASS | ESD | 2000 | V | |
2. Products View
1. Your inquiry related to our products or prices will be replied in 10 hours.
2. We have own independent R&D department on existing products for better maintenance, and still continue to develop some high-tech products. We have our own patented products.
3. Well-trained and experienced staffs to answer all your inquiries in fluent English.
4. We offer two-year’s warranty for our products and provide free technical guidance services.
For more details of smd led price and free samples of 020 smd led, click the "send" below to contact us!
