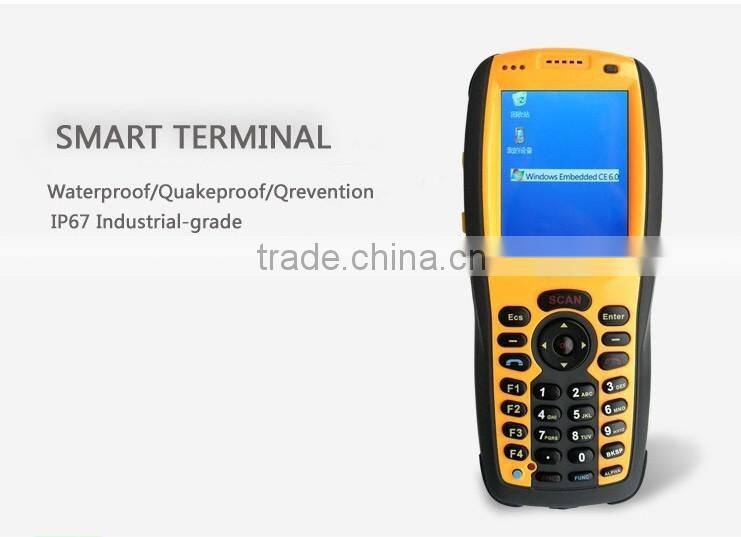

Mobile Rugged PDA Scanner With Barcode Scanner,Free SDK,RFID,Wireless

Central processor

Master:

Samsung S3C6410

Frequency:

800MHz

Built-in memory

DDR1

128MB

NAND Flash

2GB

Display

Size

2.8-inch

Display

TFT true color touch screen

Resolution

320×272

Operating system

Window CE 6.0

Function

3G(Optional)

Support China Telecom CDMA

GPRS(Optional)

Support for mobile data transmission

WiFi

WIFI Wireless Communications,Support IEEE802.11b/g(standard configuration)  IEEE802.11g(6M / sec transmission rate)

GPS

GPS navigation, positioning

PSAM

In accordance with "China financial integrated circuit (IC) PSAM card specification" identification card, with contact IC card standard "ISO/IEC 7816-1/2/3/4" "the people's Bank of China PSAM card specification"

RFID

Operating frequency:13.56MHz

Protocol support:ISO/IEC 14443A/MIFARE Read / write mode           Support M1,S70 card etc

Bluetooth

Bluetooth communication,Supports protocol version 2.0, 2.4 GHz

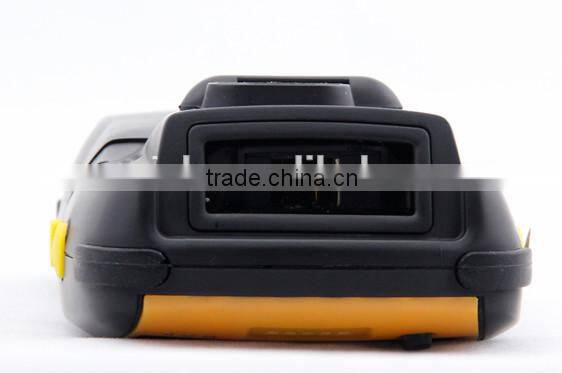

Bar code scanning

One-dimensional laser bar code scanning, two-dimensional bar code scanning

Camera

Support built-in 2 million  5 million camera

Input and output

Serial ports

Provide an external 232 standard serial port

USB interface

USB device 2.0 interface

Storage Interface

TF card slot

IO expansion interface

Built-in SPI I2C serial GPIO and other expansion

Power synchronization port

MiNi-USB interface,For 5V power charging and PC synchronization

Speaker

Support for audio and video playback

Indicator

Charge, working indicator

Function keys

34 function keys+5 side key

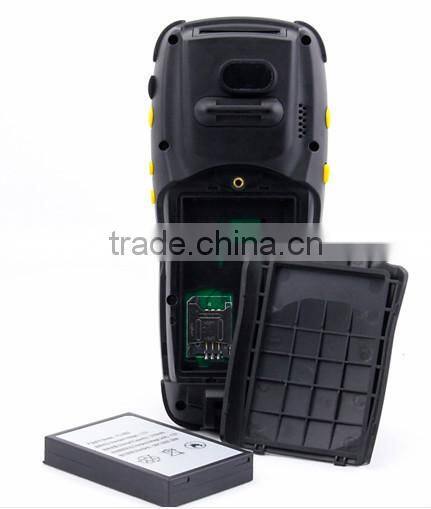

Battery

Battery capacity

3.7V 3100mA lithium polymer battery

Charging time

Power off charging:3~4 hours; On charging:6~8hours

Life time

Video player>6 hours

Language

Chinese or English(Optional)

Secondary development

VBVS,NET2005(2008),MS EVC 4.0 ,VC,C#,C++ (Provide the SDK)

Temperature and humidity

Temperature:0℃~50℃  Humidity:0~95%

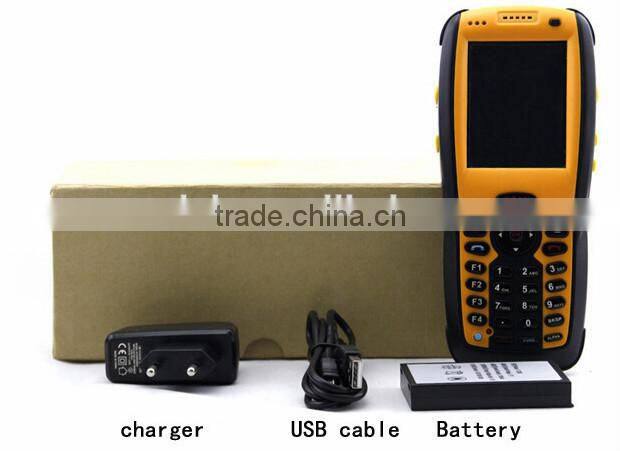

Fitting

USB data line and a touch pen,A power adapter,A battery
