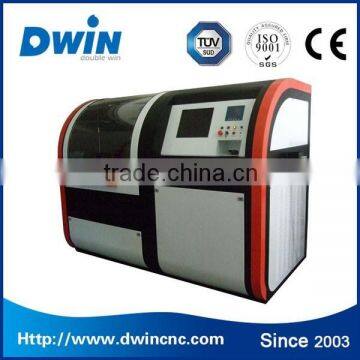

DW0303 small laser cutter metal

FOB Price

USD $12,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	YAG
Applicable Material	Metal	Cutting Thickness	10mm
Cutting Area	300*300mm	Cutting Speed	35mm/s
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	Leetro	Graphic Format Supported	AI, BMP, DST, DWG, DXF, PLT
Place of Origin	Shandong, China	Brand Name	DWIN
Model Number	DW0505	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

small laser cutter metal
1 fast speed
2 high accuracy
3 less lose
4.with CE

YAG small laser cutter metal price DW-0505/0404/0303

Features

1) Cutting surface is smooth and less dross. The maximum thickness is up to 10mm (cutting carbon steel). This is the maximum cutting thickness in small and medium power YAG cutting industry.

2) Stainless steel below 4mm and mild steel below 8mm can just use air to laser cut (no required oxygen gas . Good cutting effect, maximizing reducing use-cost.

3) Metal parts of different shapes can be auto arranged in an optimal way. Excess material nesting function enable excess material reuse. Material saving up to 8%-10% than general processing

4) Dynamic focusing system. When cutting different thickness metal sheets and uneven materials, adjusting focus is no required, so as to achieve fast cutting and greatly improve working efficiency

5) Rotary attachment can be optional equipped for metal tubes / metal pipes cutting and positioning punching

Application

YAG Laser cutting machine has been widely used in manufacturing billboard ,sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware , saw bits ,precision metal parts ,metal artware

Applicable materials

Stainless steel ,mild steel/carbon steel ,Copper, aluminum, alloy steel ,spring steel ,galvanized plate ,aluminum coated plate and some other alloy plate and pipe including titanium alloy etc

Technical Parameter

Model	DW-YAG-0505	DW-YAG-0404	DW-YAG-0303
Working area	*500500mm**	*400400mm**	*300300mm**
Max output power	600W	600W	600W
Max Cutting thickness	10mm( carbon steel)	10mm( carbon steel)	10mm( carbon steel)
Laser wavelength	1064nm	1064nm0	1064nm
Pulse frequency	1-300HZ	1-300HZ	1-300HZ
Max Cutting speed	35mm/s	35mm/s	35mm/s
X Y Z Positioning accuracy / X Y Z	<+-0.08mm	<+-0.08mm	<+-0.08mm
X Y Z re-orientation accuracy /X Y Z	<=+-0.04mm	<=+-0.04mm	<=+-0.04mm
Machine weight	400KG	390KG	380KG
Cooling model	Water cooling	Water cooling	Water cooling
Power Supply	380V/50HZ	380V/50HZ	380V/50HZ
