Home > Products > Steel Bar Cutting Machine > High duty 40mm manual steel bar cutter
High duty 40mm manual steel bar cutter
- Shanghai/Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | YUCHUANG | Model Number | GQ40A | |
| Voltage | 380V | Rated Power | 3kw | |
| Dimension(L*W*H) | 1430x450x750mm | Weight | 400kg | |
| Certification | ISO,SGS,CE | Warranty | 2 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

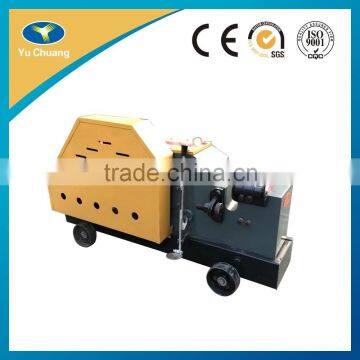

Manual steel bar cutter
GQ40A
Introduction of manual steel bar cutter:
1.Adopt high quality copper wire motor, enhanced machine rack, compact structure, solid and reliable.
2.Good lubricating property, it could continuous work two months after adding 5-8kg gear oil.
3.Less functional loss compared wtih same type cutting machine, load power can be largely reduced.
Detailed machine photos of manual steel bar cutter:
The main materials and main parameters of manual steel bar cutter:
Bar cutter Model | GQ40A | GQ40B | GQ40C | GQ50 | GQ50A |
Guarantee | 2 years | 2 years | 2 years | 2 years | 2 years |
Diameter of bar | 40 mm | 40 mm | 42 mm | 50 mm | 50 mm |
Yield strength | HRB 335Mpa (N/ mm2) | HRB 335Mpa (N/ mm2) | HRB 335Mpa (N/ mm2) | HRB 400Mpa (N/ mm2) | HRB 400Mpa (N/ mm2) |
Power | YX3-2(3 kw) | YX3-2(3 kw) | YX3-2(3 kw) | YX3-2(4KW) | YX3-2(4KW) |
Material of winding | Copper+Silicon steel sheet (800) | Copper+Silicon steel sheet (800) | Copper+Silicon steel sheet (800) | Copper+Silicon steel sheet (800) | Copper+Silicon steel sheet (800) |
Size of blade(mm) | 83*83*26 | 83*83*26 | 83*83*26 | 90*75*26/90*90*26 | 90*75*26/90*90*26 |
Material of blade | Super alloy tool steel(60Si2Mn) | Super alloy tool steel(60Si2Mn) | Super alloy tool steel(60Si2Mn) | Super alloy tool steel(9CrSi) | Super alloy tool steel(9CrSi) |
Material of body | Ductile iron QT500-7 | Ductile iron QT500-7 | Ductile iron QT500-7 | Ductile iron QT500-7 | Ductile iron QT500-7 |
Size of body(cm) | 96*20*52 | 96*20*55 | 103*20*58 | 103*22.5*60 | 103*22.5*60 |
Weight of body (kg) | 186 | 195 | 205 | 237 | 255 |
Material of shaft | high quality carbon structural steel C45 | high quality carbon structural steel C45 | high quality carbon structural steel C45 | high quality carbon structural steel C45 | high quality carbon structural steel C45 |
Material of Connecting rod | high quality carbon structural steel(45#) high-energy-rate forging | high quality carbon structural steel(45#) high-energy-rate forging | high quality carbon structural steel(45#) high-energy-rate forging | high quality carbon structural steel(45#) high-energy-rate forging | high quality carbon structural steel(45#) high-energy-rate forging |
Material of crankshaft | Super alloy tool steel(40r) high-energy-rate forging | Super alloy tool steel(40r) high-energy-rate forging | Super alloy tool steel(40r) high-energy-rate forging | Super alloy tool steel(40r) high-energy-rate forging | Super alloy tool steel(40r) high-energy-rate forging |
Material of gear | Ductile iron QT500-7 | Ductile iron QT500-7 | Ductile iron QT500-7 | high quality carbon structural steel(45#) | high quality carbon structural steel(45#) |
V-belt | B type: h=11mm, b=17mm | B type: h=11mm, b=17mm | B type: h=11mm, b=17mm | B type: h=11mm, b=17mm | B type: h=11mm, b=17mm |
Size of wheel(mm) | 160*60*6 | 160*60*6 | 160*60*6 | 165*60*6 | 165*60*6 |
Material of wheel | Ductile iron QT400-15 | Ductile iron QT400-15 | Ductile iron QT400-15 | Ductile iron QT400-15 | Ductile iron QT400-15 |
Our processing plant for spare parts:
Our electric motor producing line:
Our storage of Finished machines:
Factory Profile
Our company, Henan Yuchuang Machinery Manufacturing Co., established in 1996, is a professional manufacturer of rebar cutter, rebar bender,
CNC wire straightening and cutting machine, CNC stirrup bender, plate compactor, vibration tamping rammer, power trowel and so on. Its 18
years since we set up our factory, our products have been used widely in many coutries and areas such as India, Sri Lanka, Pakistan, Combodia,
Indonesia, Malaysia, Tunisia, Algeria, Canada, New Zealand, Hongkong and so on.
Yu Chuang today is a company of more than 300 employees, 20,000 square meters production area and more than 100 outlets scattered in Asia,
Austrilia, Middle East, South America and Africa.
Why choose us?
1.Our factory have produced these machines for 20 years,best production capability,best quality control, Best Service;
2.100% QC inspection Before Shippment;
3.ISO/SGS/3C Listed,competitve price.
Payment Terms:
1. Payment: T/T, Western Union; 30% deposits; 70% balance before delivery;
2. MOQ: 1pcs;
3. Warranty : 2 years.
