RM80A tamping rammer

Feature of tamping rammer:

1.No need to mix fuel and oil, easy starting, low-noise operation, low maintenance and reduced fuel consumption comparing to 2-stroke engine;
2.Heavy shock mount system to reduce hand-arm vibration and improve comfort;
3.Rammer shoe made of steel plate with wooden insert offers economical usage;
4.Special protective frame for engine, prevents any possible damage on tough job site.

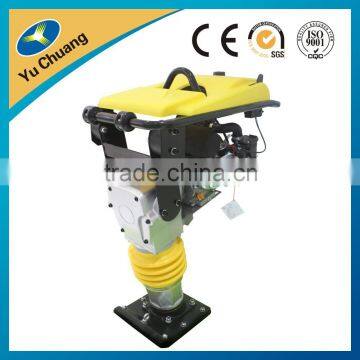

Main picture of tamping rammer:

Techinical parameters of tamping rammer:

Engine type: Air-cooled, single cylinder, 4-stroke

Engine model: GX160/EH12/LC165F

Engine power: 4-6.5HP
Impact energy: 12KN
Advance speed: 10 to 13mm
Impact frequency: 460 to 650 times/minute
Leap height: 40 to 65mm

Bottom plate size: 330x280mm

Packing: steel frame and carton box

NW: 78KGS  GW: 102KGS

Packing size: 750x500x1000mm

Load in 20ft container: 80pics

Honda engine,Robin engine,Locin engine can be choose:

Our Gearbox is Aluminum:

Dust Cover

Our Tamping Plate:

• Upper is A3 material,2mm thickness steel plate;
• Middle is compressed wood;
• Bottom is 4.5mm thickness 65Mn steel plate.

Package of Tamping Rammer:

 Why choose us?

1.Our factory have produced these machines for 20 years,best production capability,best quality control, Best Service;

2.100% QC inspection Before Shippment;

3.ISO/SGS/3C Listed,competitve price.
