Professinoal GX25 25mm Scrap bar straightening machine

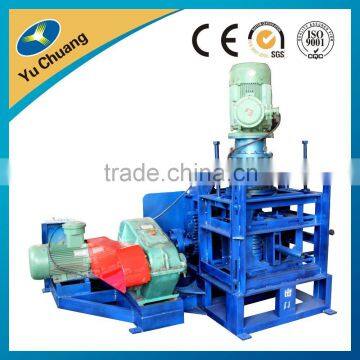

Scrap bar straightening machine

Characteristics:

1. The adoption of totally steel made gear, integral connecting rod, and heat treatment and hardness treatment of the important parts of the machine together guarantee a long working time.
2. The thread type and adjustable stop gauge ensure the accuracy and immobility of positioning.
3. The separation of connecting rod and gear enable the machine undertake a reasonable stress. The connecting rod and gear can be disassembled separately which is convenient for maintenance.
4. The large cutting stroke ensures all standards of steel bar can be cut without changing the cutting blade.
5. Seriate cutting speed is 50times/min which improves 50% efficiency than normal cutters.
6. Worry-saving: The main components can last for ten years which almost cost you nothing for maintenance.
7. Time-saving: Two times the cutting number of the normal steel bar cutter.
8. Labor-saving: Cut different sizes of steel bar without changing the knife.

Technical parameter:

Straightening diameter: 6-25mm
Speed of working: 20m/min
Motor power: 30KW

Packing size: 2200x2000x1800mm

Weight: 1200kg

Application:

Used for strengthening the scrap steel head,scrap steel bar of old building.

Features:

1.Fast straighten speed, performance stable

2.Steel surface no scratches,good straightness

3.Achieve the waste utilization, Scientific and environmental

4.Operation simple,work safety.
