Home > Products > CNC Plasma cutting machine > Gantry Type Flame 1325 CNC CNC Plasma Cutting Machine for Aluminum / Metal Plate

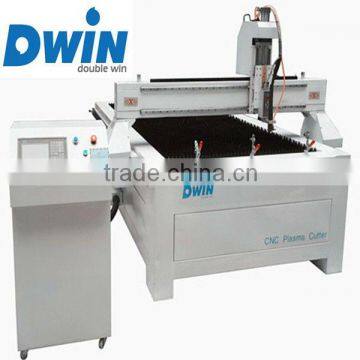

Gantry Type Flame 1325 CNC CNC Plasma Cutting Machine for Aluminum / Metal Plate
- 60 Set / Sets per Month
- qingdao
- T/T Credit Card PayPal
You May Like
-
40A-200A cnc plasma cutting machine for metal / CNC1325 Pipe profile plasma cutting machine
-
DW1325 cnc router and plasma cutter machine
-
Automatic Light Pipe cutter/ CNC1325 Pipe profile plasma cutting machine
-
Gantry Type Flame 1325 CNC plasma stainless steel cutting machine
-
hot sale 1325 cheap chinese cnc plasma cutting machine
-
Shandong direct sell 1530 trade assurance cnc plasma cutting machine
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | DWIN CNC plasma cutter | Model Number | DW1325 CNC plasma cutting machine | |
Voltage | 380V 220V Optional | Rated Power | 8.5KW-10.5KW | |
Dimension(L*W*H) | 1500mm*3000mm*1200mm | Weight | 980KG | |
Certification | CE/ISO/FDA | Warranty | 12 Months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Gantry Type Flame 1325 CNC CNC Plasma Cutting Machine for Aluminum / Metal Plate
1.Welded lathe bed of thick-wall profiled steel, more solid and stable.
2.Reasonable lathe table design, 10 mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame. The level difference of whole double-deck platform remains in 0-1.5mm.
3.Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
4.Panasonic Servo motor, Taiwan servo speed reducing device and high accuracy rack transmission.Lower noise, stable and accurate coordinate movement.
5. American hyperthem power supply(Power: 60A/100A/130A) together with high sensitive arc pressure adjuster.Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
6. Best choice for all kinds of different thickness material and heterotypic sheet cutting.
Applicable materials:
metal sheets such as Iron sheets ,Aluminum sheets ,galvanized sheets,Tianium plates,etc
Model | DW1325 | DW1530 |
Working area | 1300mm*2500mm | 1500mm*3000mm |
Processing thickness | 0.5-50mm | |
Power | 8.5KW-10.5KW | |
Input voltage | 380V 3PH | |
Cutting speed | 0-8m/min | |
Traveling speed | 0-50m/min | |
Plasma current | 60A-200A | |
Power frequency | 50HZ | |
File transfer | USB | |
Work mode | Non-contact arc striking |
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine ,CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.
Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
1.One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
