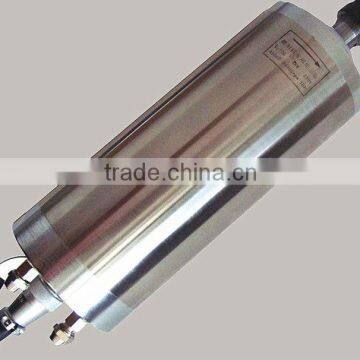

water cooled spindle motors

Model

Power

OD*Length

Collet

Frequence

Voltage

Speed

Water Cooling Spindle

DW-62A

800W

62*200mm

ER11

400Hz

220V

24000rpm

DW-65C

800W

65*205mm

ER11

400Hz

220V

24000rpm

DW-80A

1500W

80*185mm

ER11

400Hz

220V

24000rpm

DW-80B

2200W

80*205mm

ER20

400Hz

220V/380V

24000rpm

DW-80C

2200W

80*215mm

ER20

400Hz

220V

24000rpm

DW-80D

1500W

80*185mm

ER16

400Hz

220V

24000rpm

DW-80E

1500W

80*215mm

ER11

400Hz

220V

24000rpm

DW-80F

1500W

80*215mm

ER16

400Hz

220V

24000rpm

DW-80G

2200W

80*215mm

ER16

400Hz

220V

24000rpm

DW-80H

2200W

80*223mm

ER20

400Hz

220V

24000rpm

DW-M80A

1500W

80*237mm

ER16

400Hz

220V

24000rpm

DW-100A

3000W

100*252mm

ER20

400Hz

220V/380V

24000rpm

DW-100B

2200W

100*228mm

ER20

400Hz

220V/380V

24000rpm

DW-100C

3000W

100*271mm

ER20

400Hz

220V/380V

24000rpm

DW-105A

3500W

105*271mm

ER20

400Hz

220V/380V

24000rpm

DW-105B

3500W

105*252mm

ER20

400Hz

220V/380V

24000rpm

DW-125A

4500W

125*320mm

ER25

330Hz

380V

20000rpm

DW-125B

4500W

125*332mm

ER25

330Hz

380V

20000rpm

DW-M85A

2200W

85*288mm

ER20

400Hz

380V

24000rpm

DW-80J

2200W

80*230mm

ER20

400Hz

220V

24000rpm

DW-80K

2200W

80*225mm

ER20

400Hz

220V

24000rpm

DW-80L

2200W

80*232mm

ER20

400Hz

220V

12000rpm

    Tips before using: for all spindles

1

The electric spindle and the frequency inverter shall be suitable with each other. The specifications and parameter settings of the inverter shall match the nominal parameters of the spindle, and it will burn the spindle if the settings are not correct.

2

Before using water-cooling spindle, it shall ensure that cooling cycle system works normally and the running under no cooling conditions is prohibited. The volume of cooling water is calculated as per 1 liter/kw, minute, the minimum flow of cooling water is not less than 5 liter/minute, cooling water pipe and the nozzle shall be connected reliably and there is no leakage.

3

The cooling liquid shall be clean and free of grease and the temperature shall be within 5-30°C. The cooling medium shall carry out force cooling when the ambient temperature is higher than 30°C. The precision lathe requires the cooling liquid with a constant temperature of 20±2°C.

4

During storage and transport of the spindle, the status of high-speed grease inside the bearing will change. The user shall run it at a low speed first by starting from the lowest speed of the spindle for 30 minutes and then 20 minutes for every 3000 rounds; otherwise there will have abnormal sound, noise, heat and other phenomena, which will affect the bearing life if the spindle is started directly at a high speed. During long term storage, the spindle shall run (at low speed) for 15~30 minutes once a week at least.

5

Collet, nut and inner taper hole shall be washed clean when installing blades on the spindle in order to avoid any impact on the precision. The blade handle shall be inserted into the collet more than 15mm.

6

For daily machining, the spindle shall be warmed up, run for 15~20 minutes when the machining speed is reached and then performs precise machining. It is better to stop the spindle for two hours every day in order to recover its mechanical fatigue and prolong its life time.

7

No knocking the end cover of the spindle. No hammering the collet and blade head when removing blades. No shocking or colliding during transport, storage and using, especially the end of the spindle.

8

The spindle shall run in designated direction.

9

The spindle shall be installed and fixed according to the relevant drawings and instructions.

10

The temperature shall be within 22-25°C if water cooling machine is used.

11

The spindle adopts vapor lock and the gas source shall not be used until it has passed oil-water separator and dry filter. The air pressure is 0.2-0.25MPa and the filtering precision is 5μm, otherwise there will cause damages to the bearing.
