FRP Water Tank in Water Treatment Plant
US$ 30 - 1,000
/ Piece
10 Pieces(Min. Order)
- Tianjin Port
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | Pentair | |
| Model Number | Structural Composite Vessels |
Product Description
Specifications
1. 100% composite fiberglass2. capacity up to 2500 gallons
3. non-corrosion
4. 150 psi
5. different size
About the product
Structural Composite Vessel
The non-corrosive, cost-effective solution for commercial/industrial water treatment and storage. Structural Composite Pressure Vessels offers fiberglass construction for outstanding performance and durability in harsh chemcial environment. With capacities up to 1600 gallons and a veriety of options, we can tailor a vessel to meet your needs.
Features
- 100% composite fiberglass construction
- Outstanding performance and durability in harsh chemical environments
- Absolutely will not - and cannot - rust
- Requires little or no maintenance
- Capacities up to 2500 gallons
- Factory-backed 5-year warranty
- Materials of construction
Operating Parameters
- Maximum operating pressure: 150psi
- Maximum operating temperature: 150° F (flanged), 120° F ( threaded)
Specification
ABS Inner liner
| Specification | Size | Capacity | Opening | Length from top to bottom | Length | O.D. | Base Form |
| (Inch) | (mm) | (L) | Top open | (mm) | (mm) | (mm) | |
| 817 | Φ 205× 445 | 11.3 | 2.5''NPSM | 446 | 432 | 206 | pp |
| 835 | Φ 205× 905 | 24.0 | 2.5''NPSM | 905 | 891 | 206 | pp |
| 844 | Φ 205× 1130 | 32.5 | 2.5''NPSM | 1131 | 1117 | 206 | pp |
| 1017 | Φ 255× 445 | 17.8 | 2.5''NPSM | 447 | 433 | 257 | pp |
| 1035 | Φ 255× 905 | 38.6 | 2.5''NPSM | 903 | 889 | 257 | pp |
| 1054 | Φ 255× 1390 | 61.9 | 2.5''NPSM | 1390 | 1376 | 257 | pp |
| 1252 | Φ 300× 1340 | 84.8 | 2.5''NPSM | 1342 | 1332 | 305 | pp |
| 1265 | Φ 300× 1650 | 106.3 | 2.5''NPSM | 1650 | 1640 | 305 | pp |
| 1354 | Φ 330× 1400 | 103.6 | 2.5''NPSM | 1400 | 1390 | 334 | pp |
| 1465 | Φ 355× 1670 | 145.6 | 2.5''NPSM | 1671 | 1661 | 360 | pp |
| 1465 | Φ 355× 1670 | 145.6 | 4''-8UN | 1671 | 1661 | 360 | pp |
| 1665 | Φ 400× 1670 | 187.7 | 2.5''NPSM | 1672 | 1662 | 410 | pp |
| 1665 | Φ 400× 1670 | 187.7 | 4''-8UN | 1672 | 1662 | 410 | pp |
FRP Inner liner
| Specification | Size | Capacity | Opening Form | Length from top to bottom | Length | O.D. | Base Form | |
| (Inch) | (mm) | (L) | Top | Bottom | (mm) | (mm) | (mm) | (tripod) |
| 2472 | Φ 600× 1850 | 441 | 4''-8UN | - | 1850 | 1750 | 612 | tripod |
| 2472 | Φ 600× 1850 | 421 | 4''-8UN | 4''-8UN | 1850 | 1680 | 612 | tripod |
| 3072 | Φ 750× 1850 | 676 | 6''-8UN | - | 1850 | 1750 | 765 | tripod |
| 3072 | Φ 750× 1850 | 640 | 4''-8UN | 4''-8UN | 1850 | 1670 | 765 | tripod |
| 3672 | Φ 900× 1850 | 857 | 4''-8UN | 4''-8UN | 1850 | 1600 | 918 | tripod |
| 4072 | Φ 1000× 1850 | 1046 | 4''-8UN | 4''-8UN | 1850 | 1605 | 1020 | tripod |
| 4872 | Φ 1200× 1850 | 1202 | flange | flange | 1850 | 1558 | 1224 | tripod |

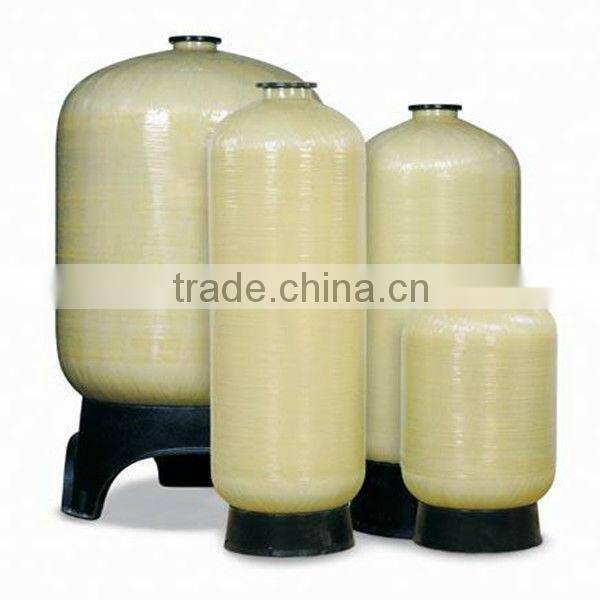

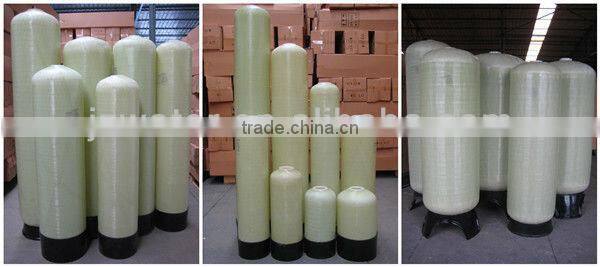

Different sizes of tanks

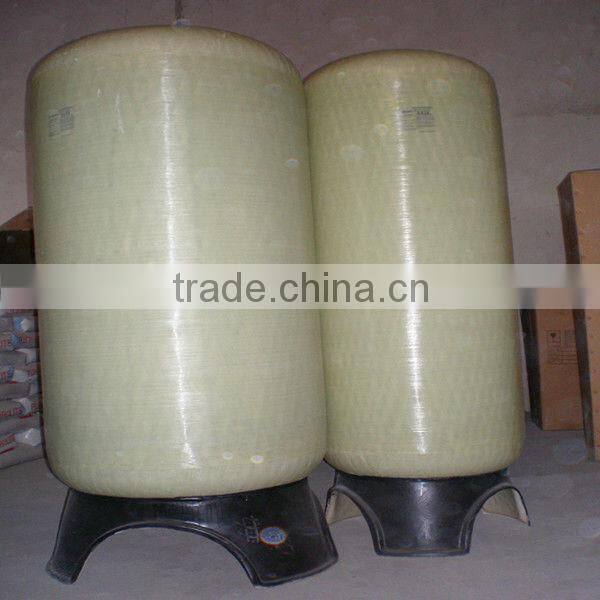

Different base

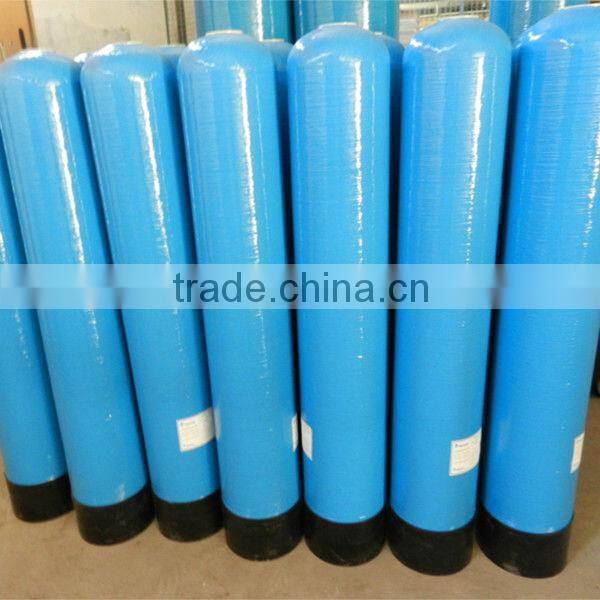

Blue Tanks for your reference
Products related

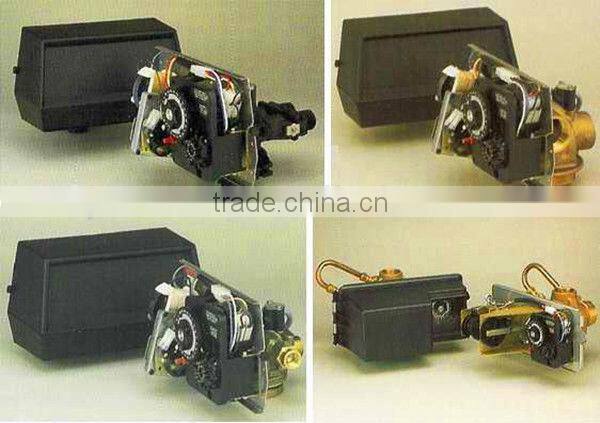

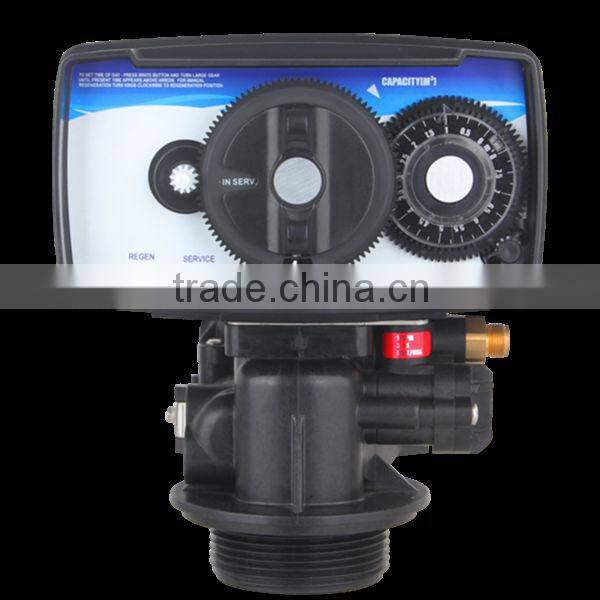

Valves
