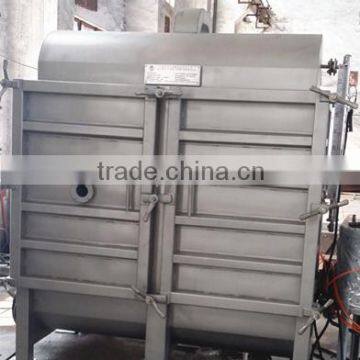

Liquid flow hank dyeing machine

HD Y series Liquid flow hank dyeing machine

♦ Machine features

1. It is suitable for preprocessing and postprocessing of cotton flax, wool, man-made hairs, acrylic and blending twisted yarns. When model Y is packed yarns with, it could finish several dye processes such as swelling, refining, bleaching, dyeing and softening, etc.

2. The distance between every yarn hanging rod is in the range of 426mm to 855mm. So the full layer dyeing machine is more suitable for different twisted yarns in dyeing.

3. It is equipped with precise reverse turning controller to ensure twisted yarns inside could be well-distributed dyed by self-altering dye liquid's circulating direction.

4. Circulating water pump is well designed to fit dyeing processes of different types twisted yarns with speed changing multilevel belt pulley.

5. This machine can reduce the errors of crafts vat by being used in two series machines or four ones.

♦ Standard structure

1. The body of machine and other parts which be getting in touch with dye are made of stainless steel, which has high erosion-resisting ability.

2. High-efficiency axial-flow pump is made of stainless steel which is equipped with sealed mechanical device.

3. Equipped with two sets of yarns-hanging sticks which are made of seamless steel pipes.

4. Diversion block makes dyes circulation inside well-distributed.

5. Equipped with material adding pumps which are made of excellent stainless steels.(excluding those models which under Y20)

6. Material adding barrel is equipped with churning materials adding, opposite washing and cleaning devices.

7. Safe and convenient getting device of sample product.

8. High quality imported valves, pipes and electrical components

♦ Technical data

(1) The highest working temperature: 98℃

(2) Rising rate of temperature (according to the steamy pressure 6kg/cm²) : About 30 minutes from 20℃ to 98℃.

(3) Falling rate of temperature (according to the refrigerant pressure 3kg/cm²) : About 15 minutes from 98℃ to 80℃.

♦ Technical specifications
