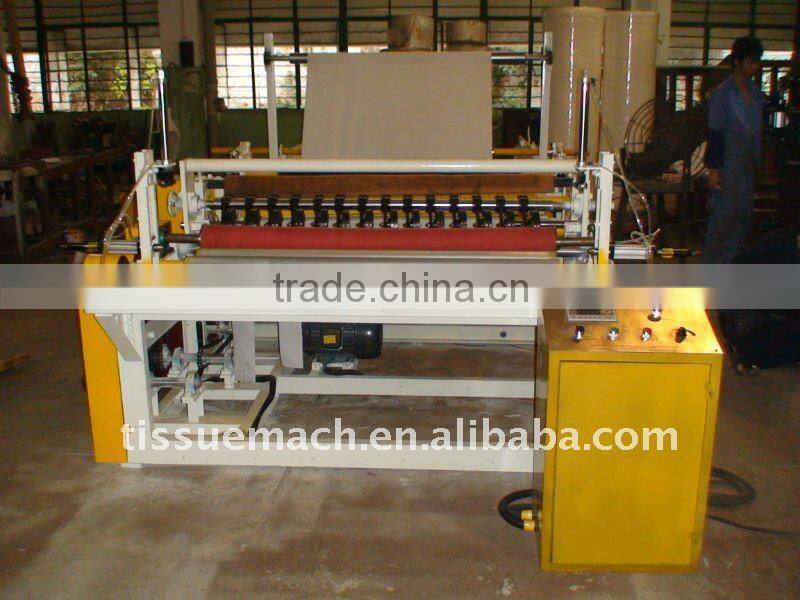

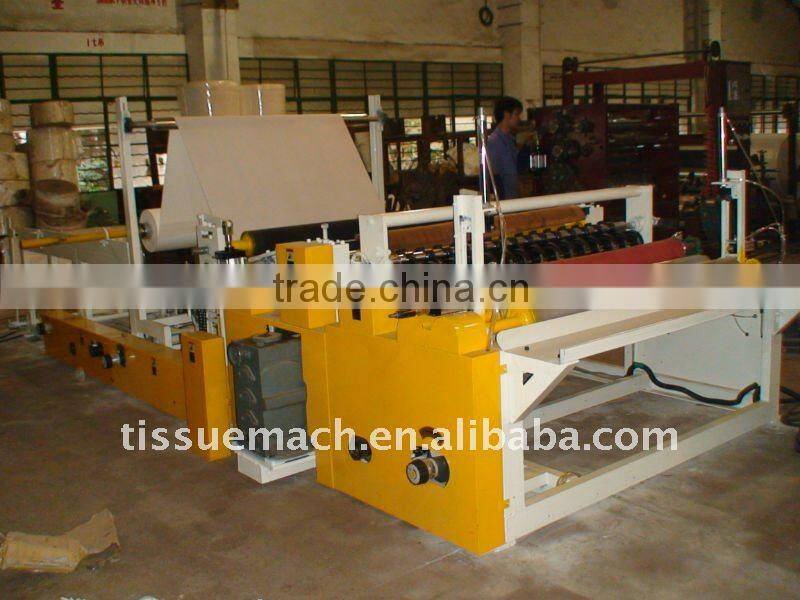

Professional design and choice materials tissue paper cutting machine

Model

ISR

Use

It can rewind, slit and perforate 1, 2, plies jumbo roll for different gsm jumbo paper roll, jumbo non-woven roll and jumbo airlaid roll. into finished

Maxi rolls, Jumbo toilet roll, Jumbo rolls, Industrial rolls and Hand wiping rolls

Production    capacity

220 m/min

Raw material

1, 2, plies different gsm jumbo paper roll, jumbo non-woven roll and jumbo airlaid roll

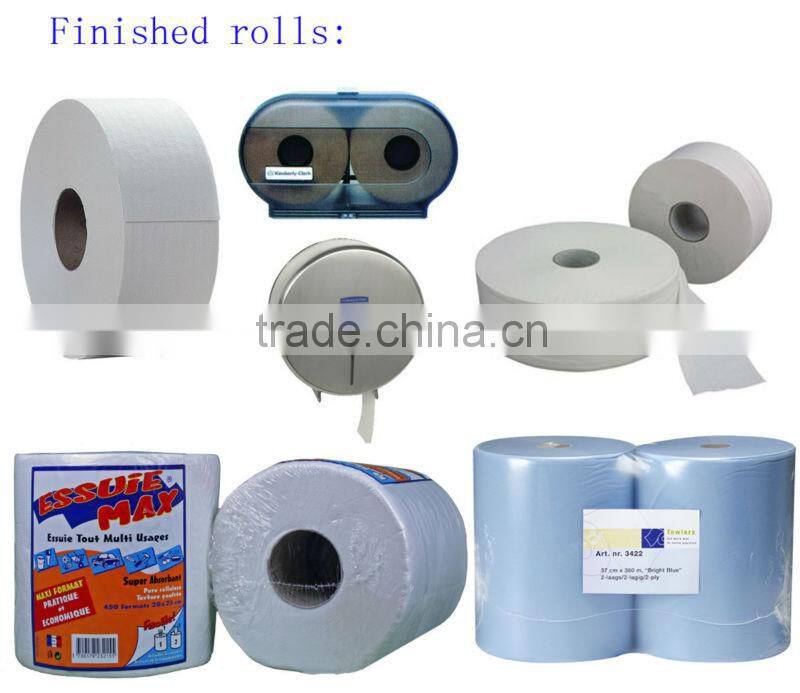

Finished product

Maxi roll

Jumbo toilet roll

Jumbo roll

Industrial roll

Hand wiping roll

Backstand unit

1. Jumbo parent roll diameter: Max.1200mm  (Other size, please specify)
2. Jumbo parent roll width: From 1300mm to 2800mm (Other size, please specify)
3. Jumbo parent roll core diameter:76mm  (Other size, please specify)
4. Finished product inner core diameter:60mm (Other size, please specify)
5. 2 or 3 backstands
6. Pneumatic loading system

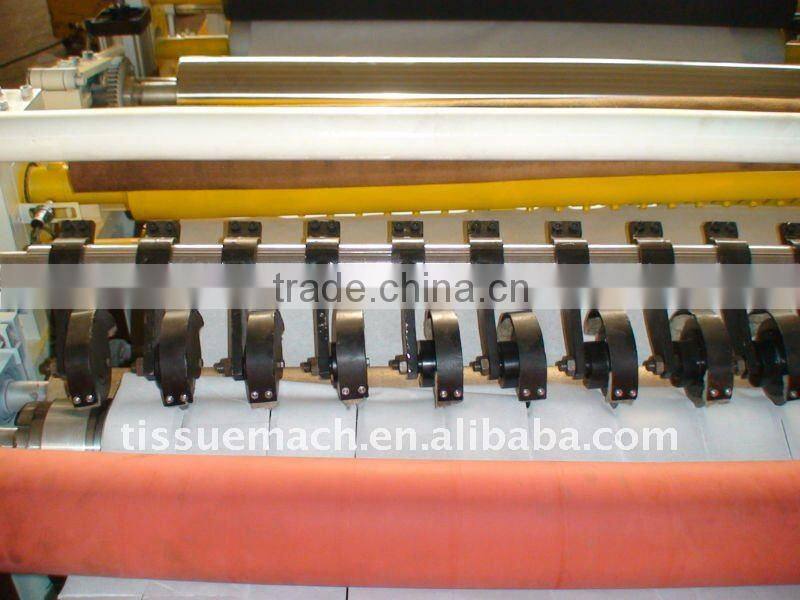

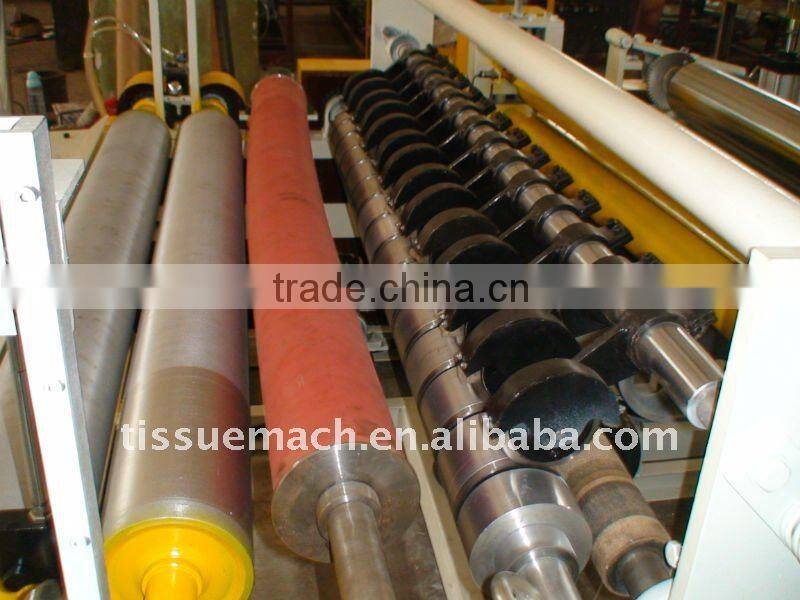

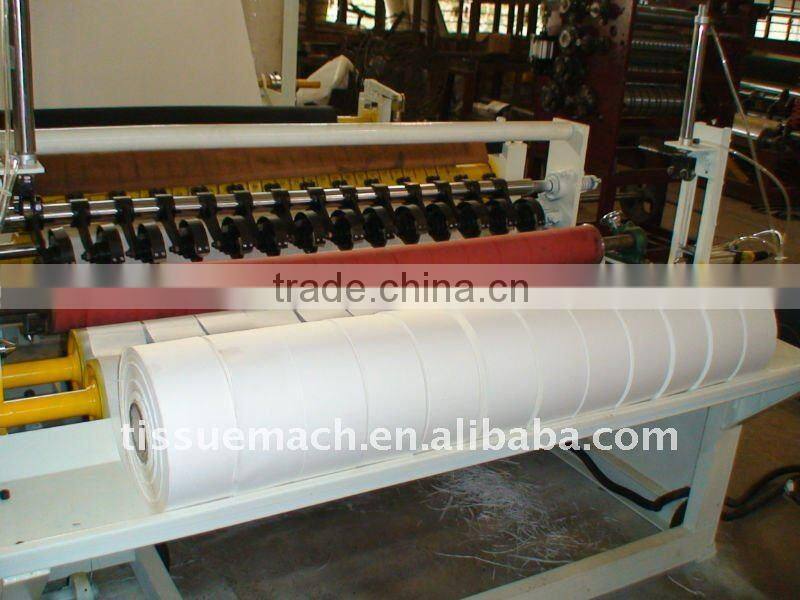

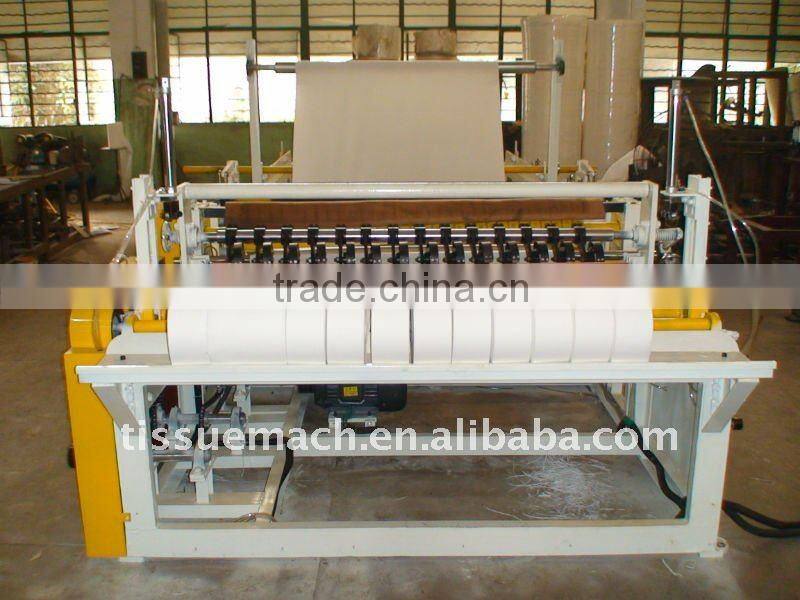

Rewinding unit

1. Manual feeding core unit

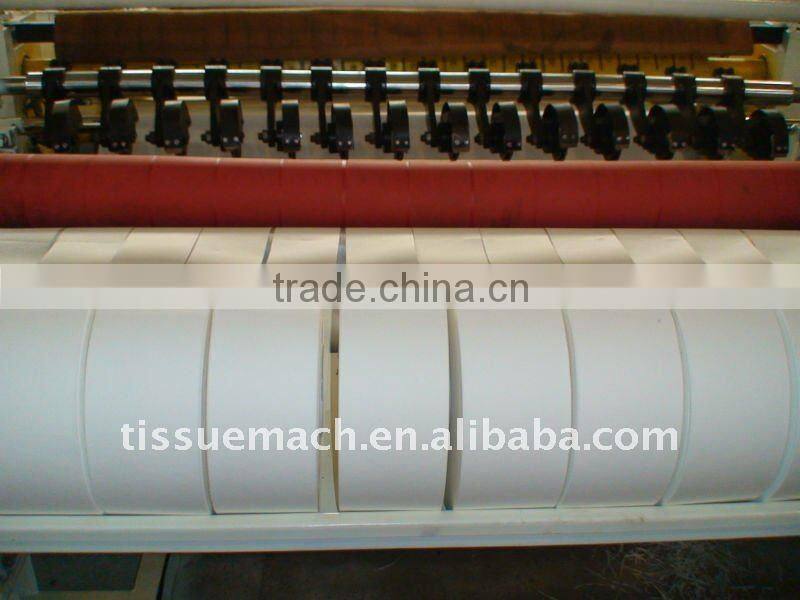

2. Slitting width of finished rolls is adjustable
3. Slitting diameter of finished rolls is adjustable (Max.400mm)
4. All slitting knives are chrome coated
5. Emergency stop system, Automatic stop sensor for paper break and run-out
6. Pneumatic shaft rewinding system
7. Perforation distance is adjustable

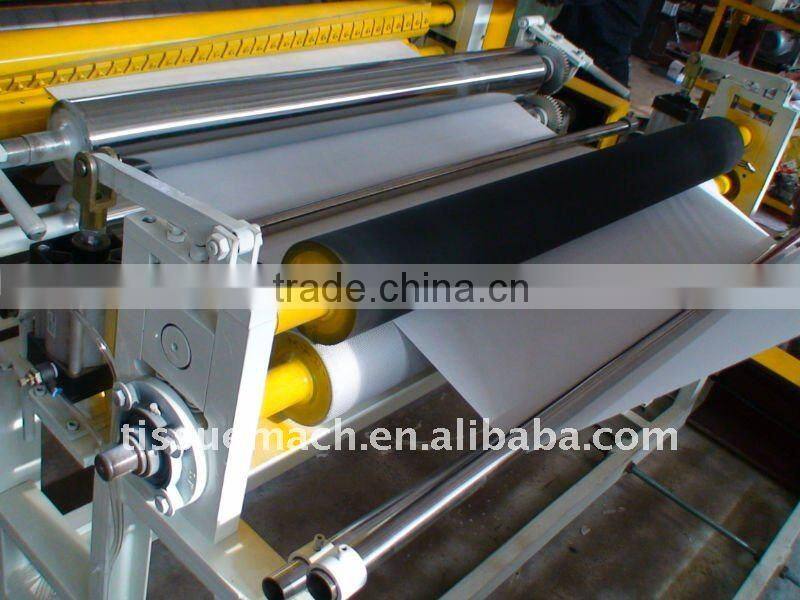

Embossing unit

1 set of steel-to-rubber embossing unit (Embossing pattern to be provided by client)

Optional

1. Tail trimming and sealing unit
2. Printing unit
3. Edge embossing unit
4. Calendar unit

Control system

1. PLC Control
2. Frequency speed control
3. Human-Machine Interface (Touch screen)
